Disassembly and Assembly

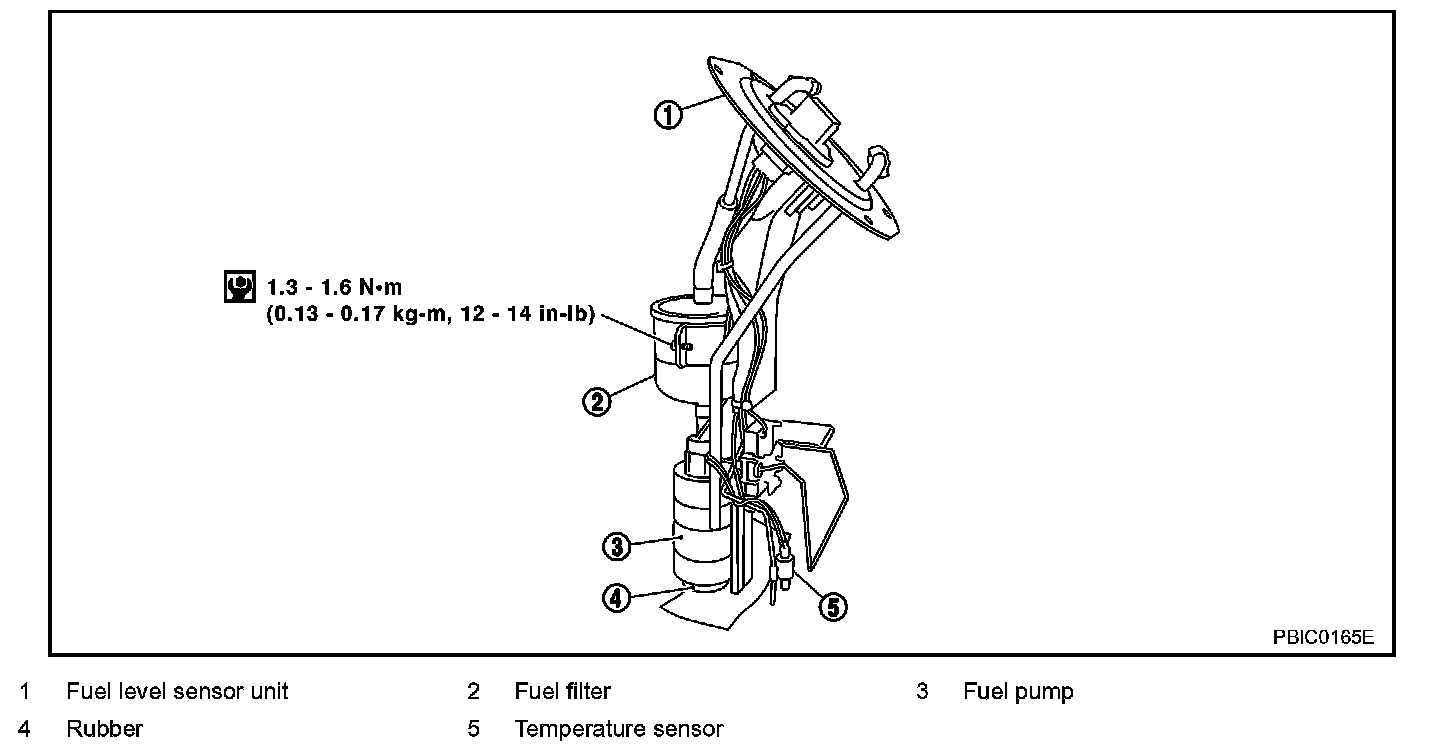

DISASSEMBLYWhile referring to the exploded view diagram, remove components starting from the fuel pump.
ASSEMBLY -
Install in the reverse order of removal.
-
Install the clamps of each hose, avoiding interference with bulges.
-
Securely connect the harness connector of the fuel pump.
CAUTION: -
Install fuel pump mount rubber between fuel pump and bracket without looseness.
