Power Supply Testing

POWER SUPPLY CIRCUIT FOR ECM

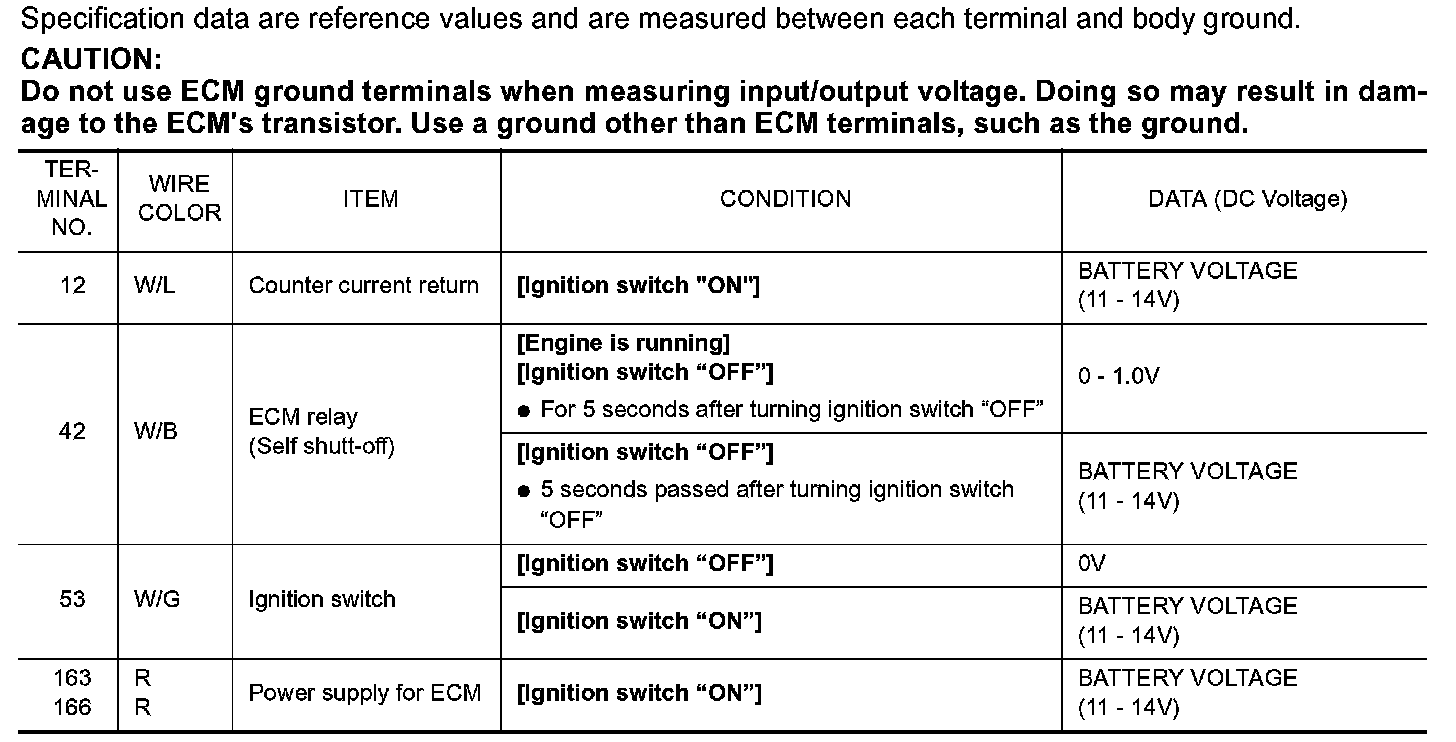

EC-MAIN-01:







EC-MAIN-02:







Wiring Diagram

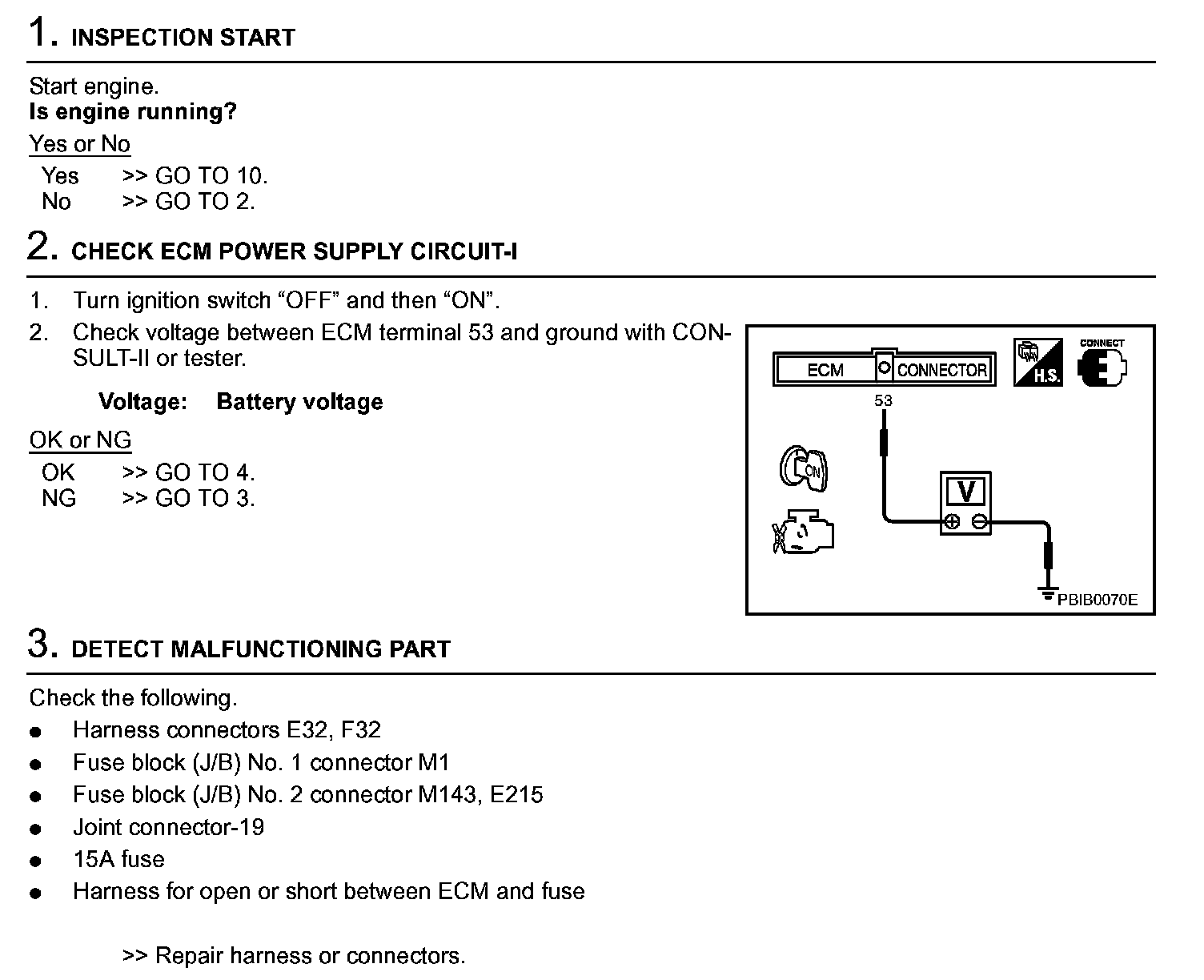

Step 1 - 3:

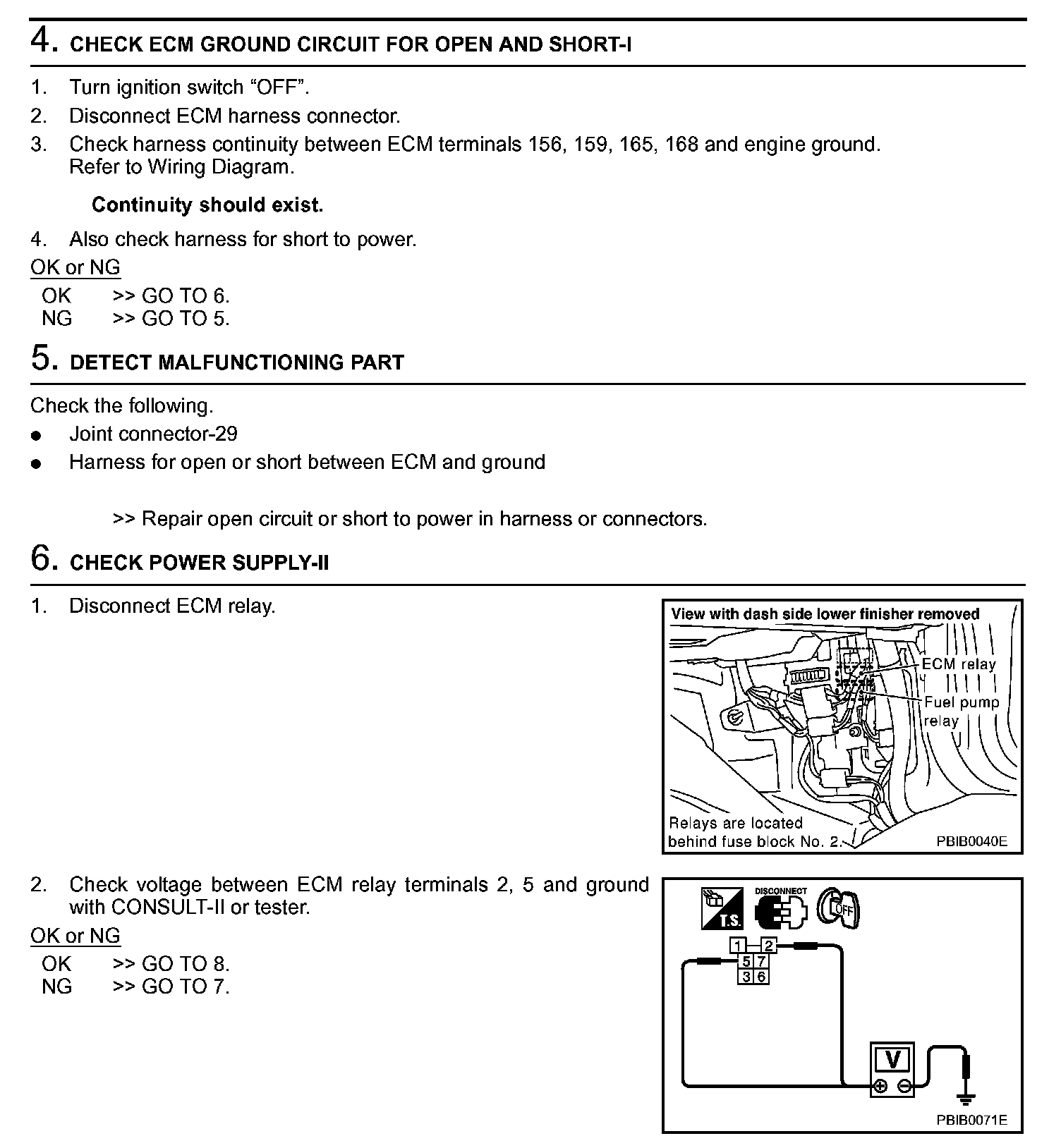

Step 4 - 6:

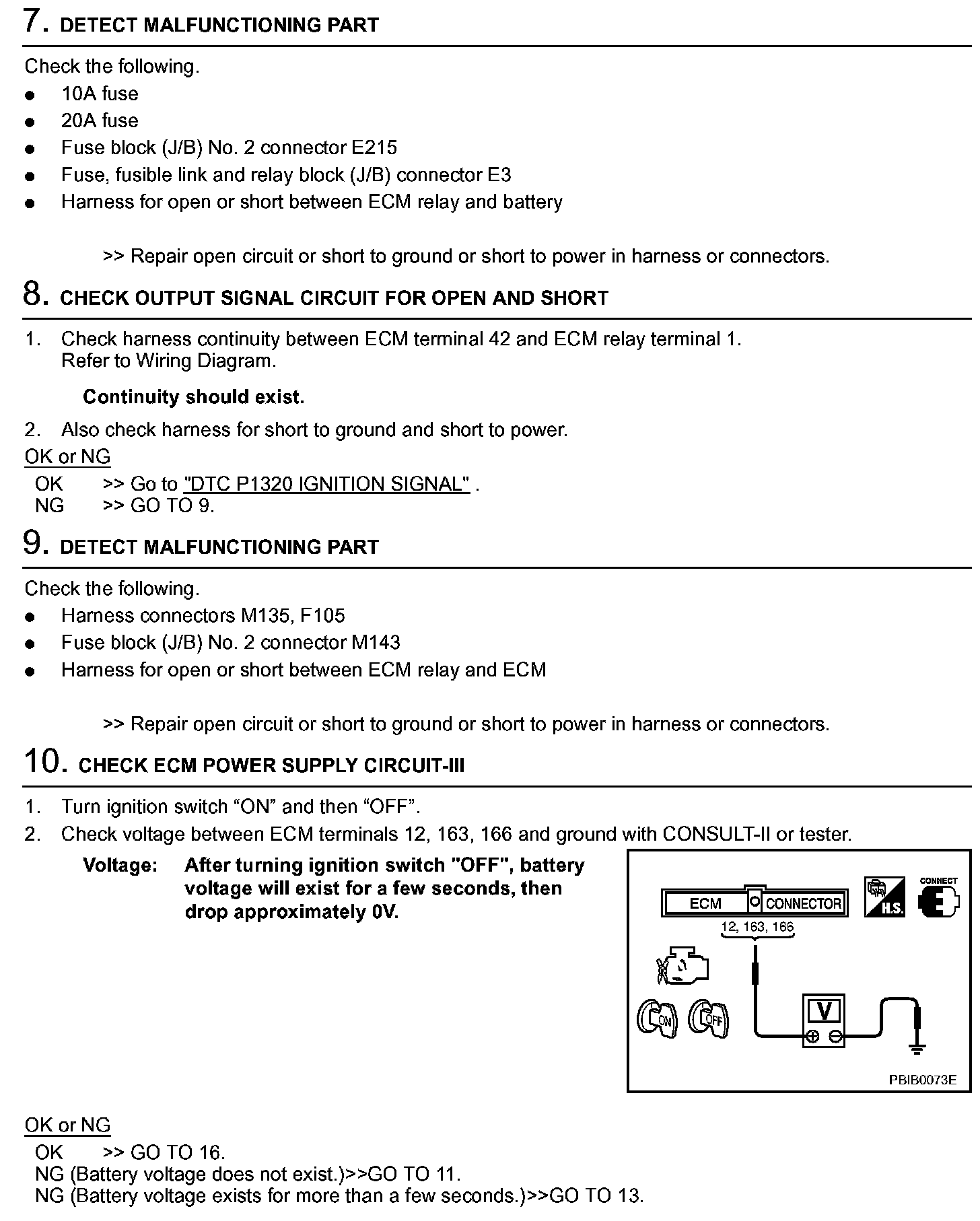

Step 7 - 10:

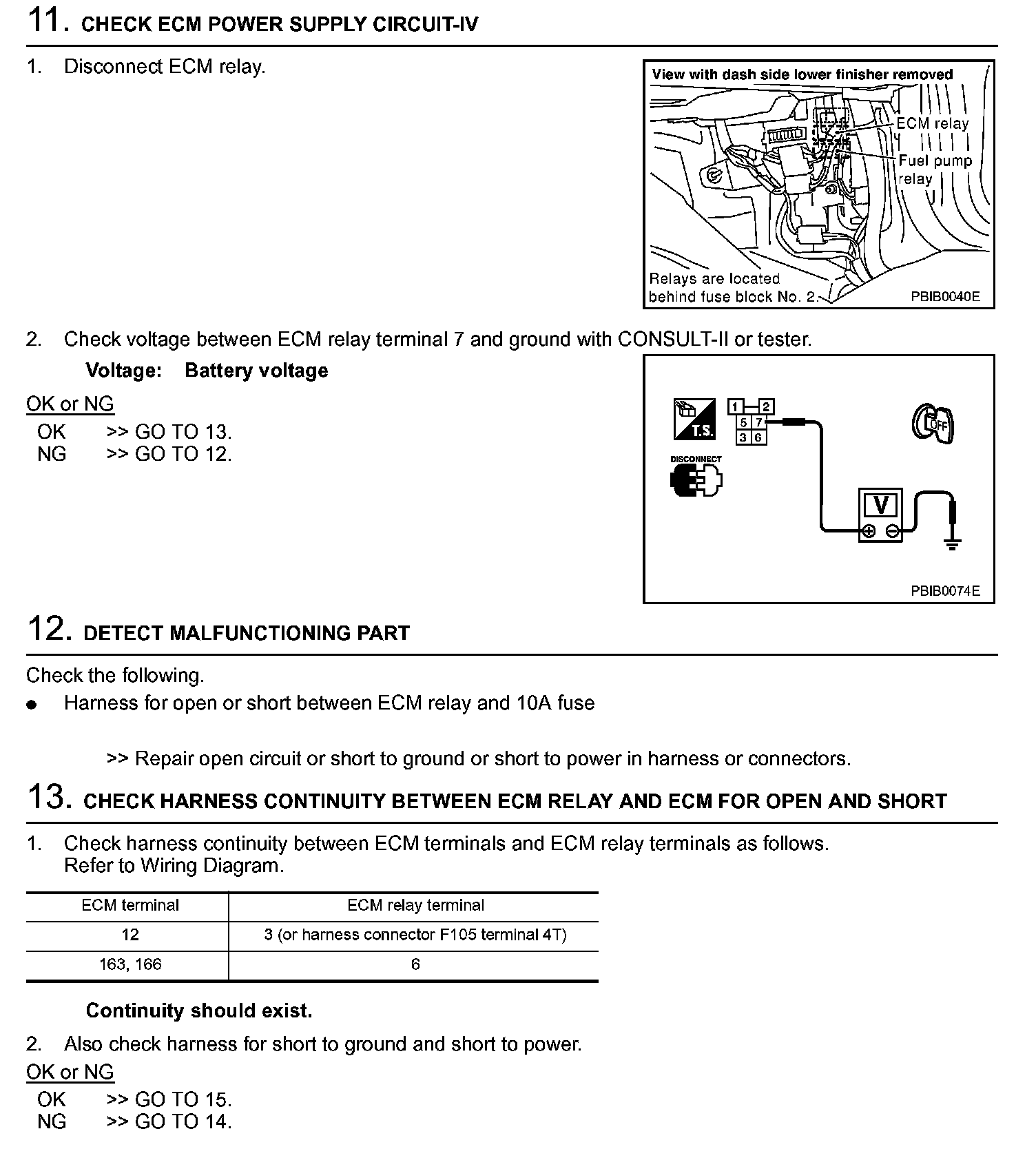

Step 11 - 13:

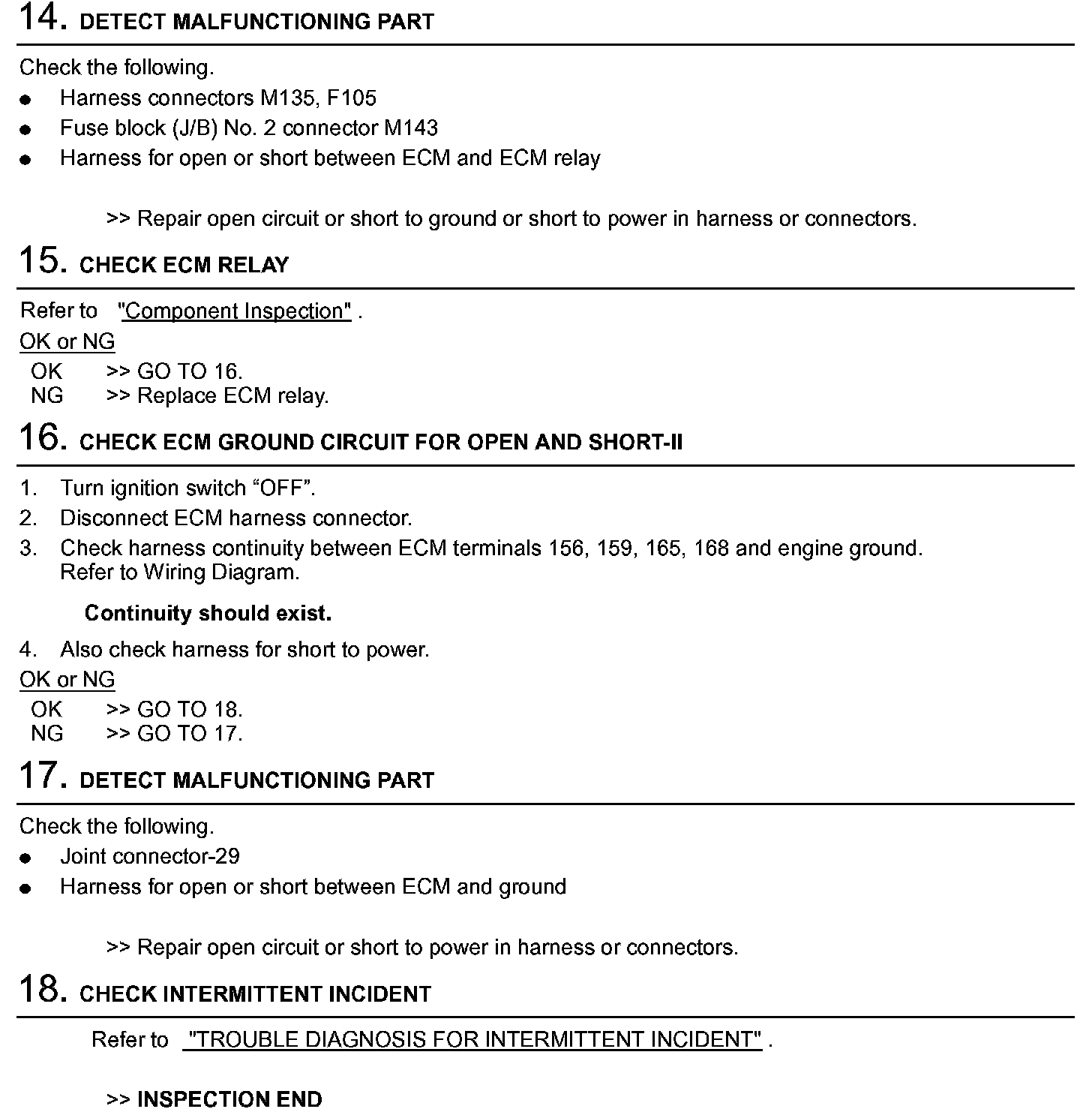

Step 14 - 18:




Diagnostic Procedure

Component Inspection

ECM RELAY




1. Apply 12 V direct current between ECM relay terminals 1 and 2.




2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.
