Symptom Chart

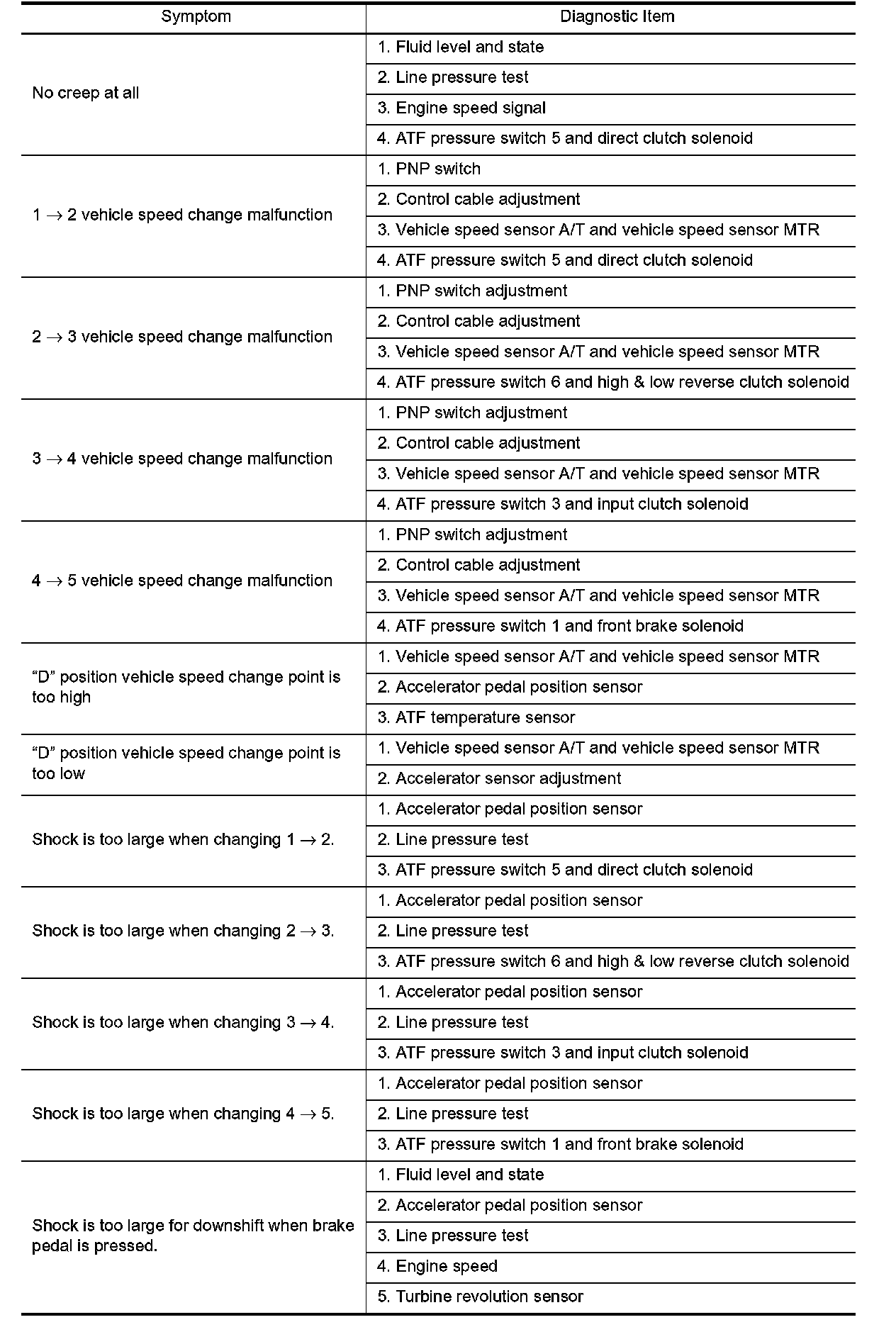

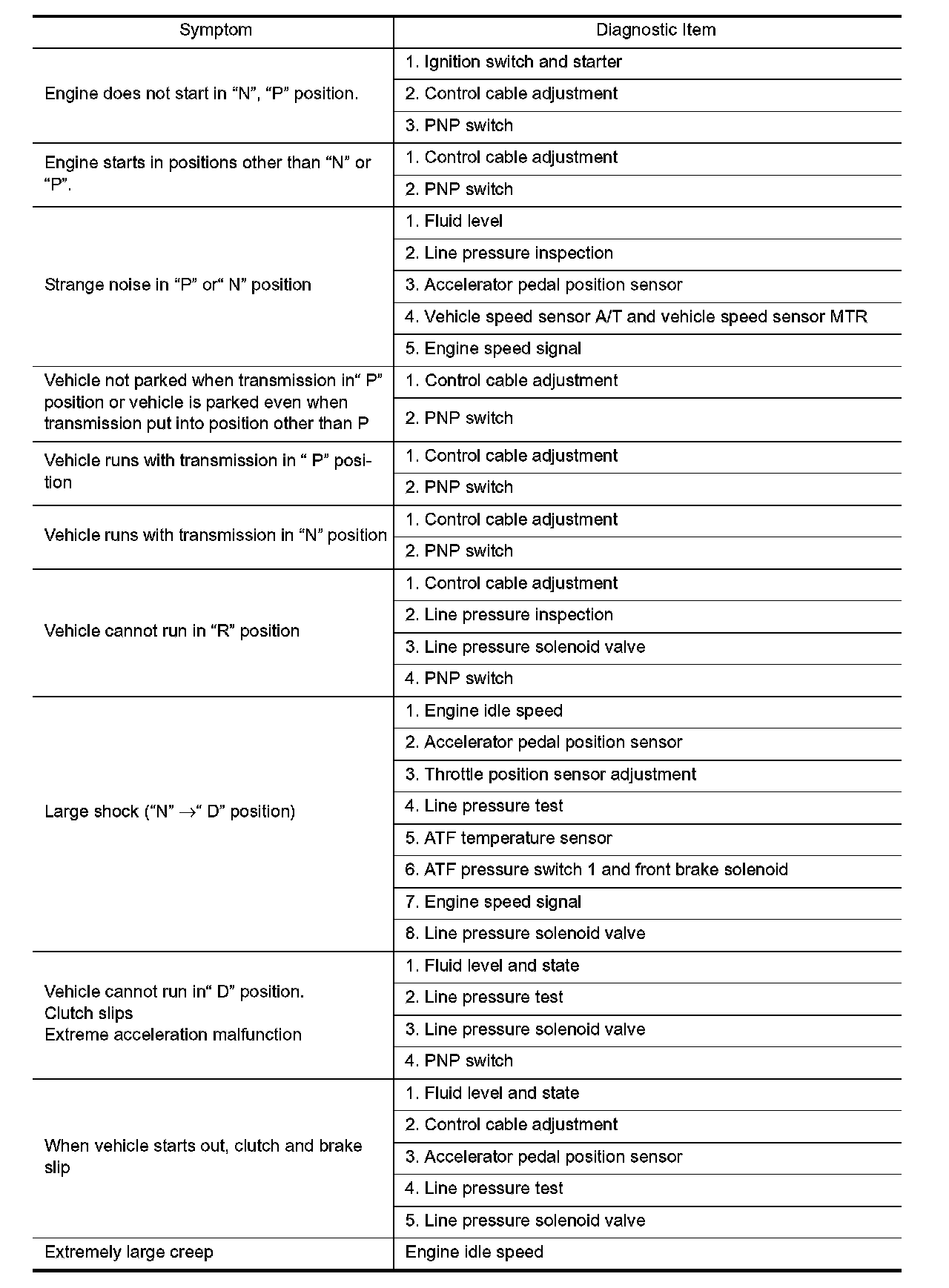

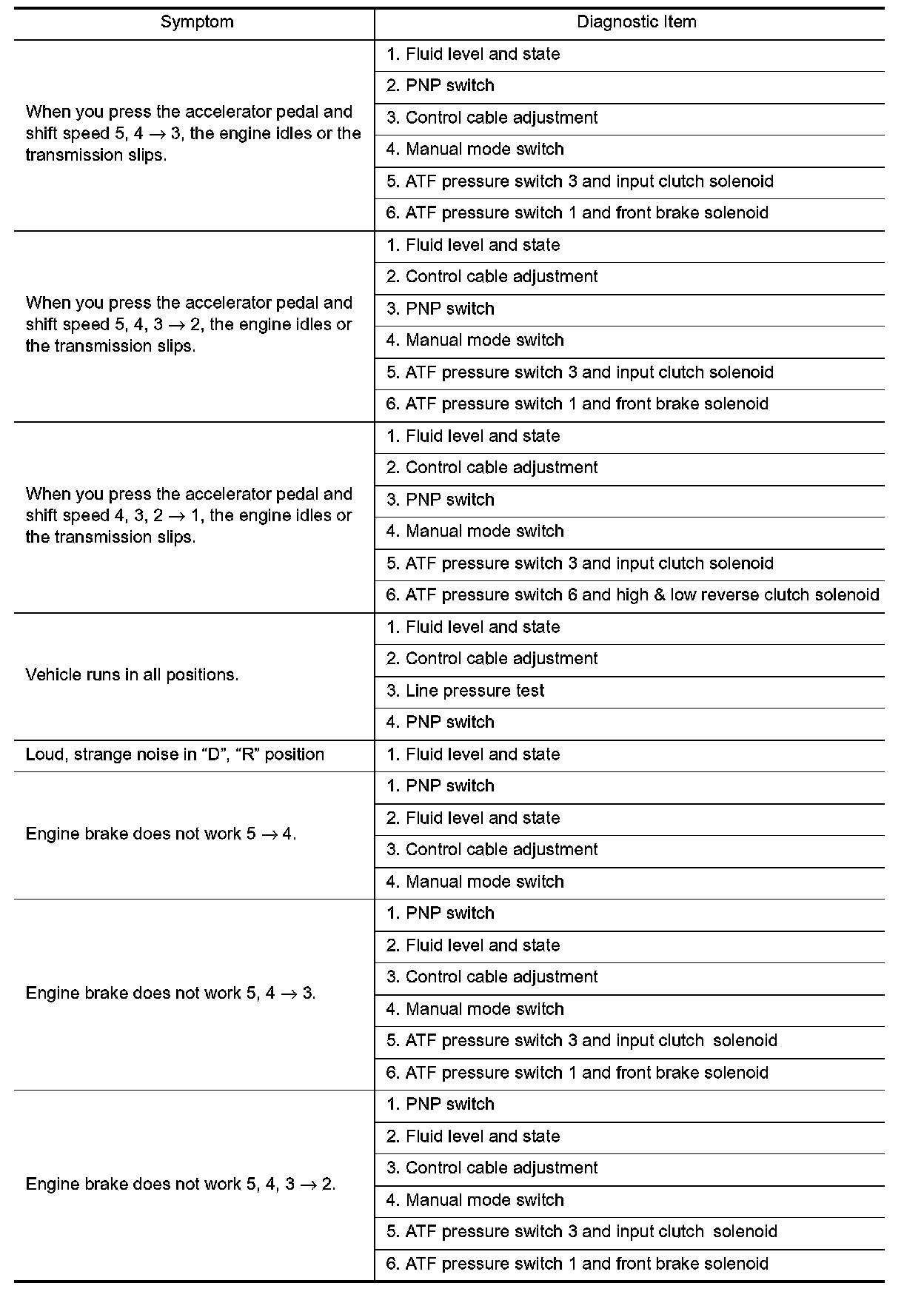

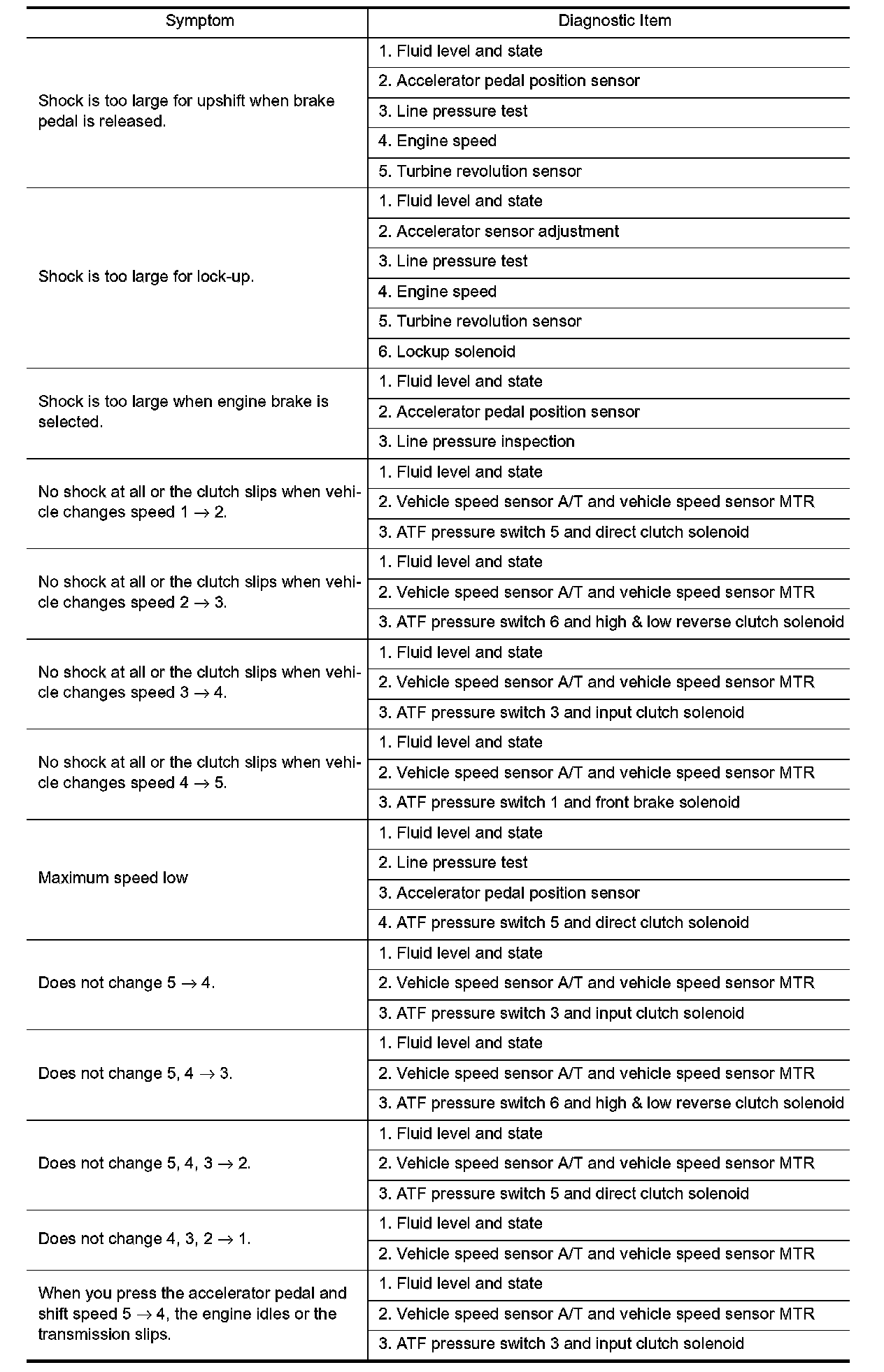

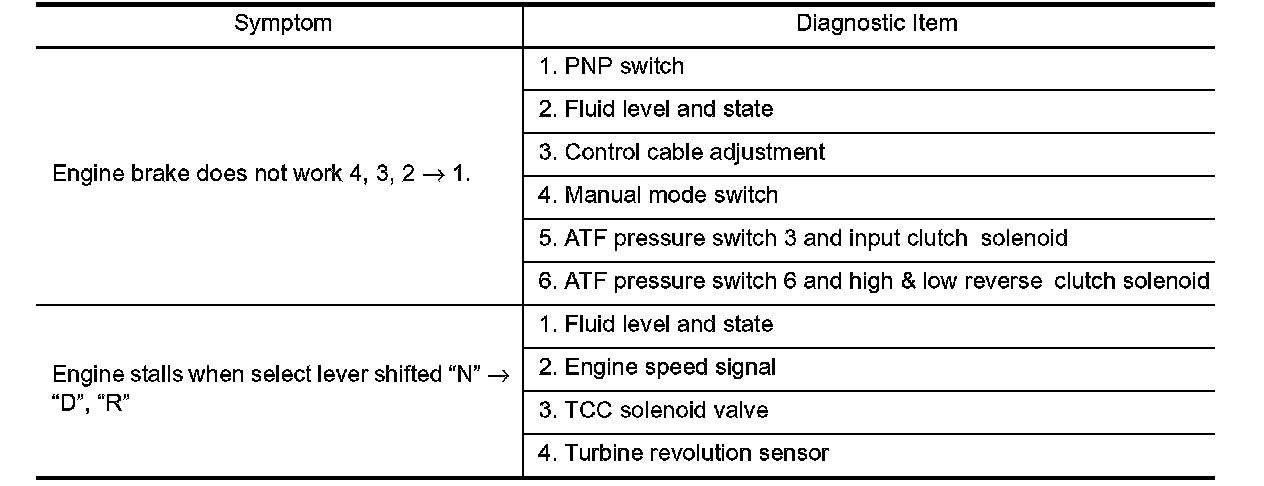

Symptom Chart 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5 The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.
CAUTION: -
If a problem occurs in the RE5R05A transmission, replace the transmission assembly.
-
Condition for "on vehicle" only
