Piston & Piston Pin - Clearance

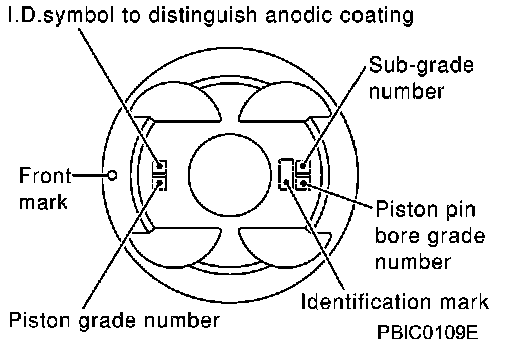

PISTON AND PISTON PIN CLEARANCE

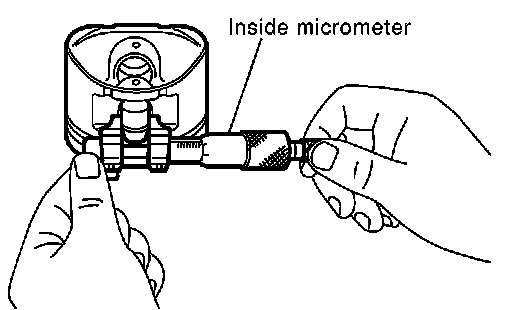

Inner Diameter of Piston Pin
Standard.................21.993 - 22.005 mm (0.8659 - 0.8663 inch)

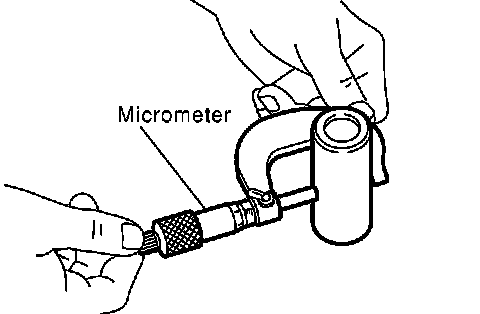

Outer Diameter of Piston Pin
Standard:................21.989 - 22.001 mm (0.8657 - 0.8662 inch)

Piston and Piston Pin Clearance
(Piston pin clearance) = (Piston pin bore diameter) - (Outer diameter of piston pin)

Standard:.................0.002 - 0.006 mm (0.0001 - 0.0002 inch)
