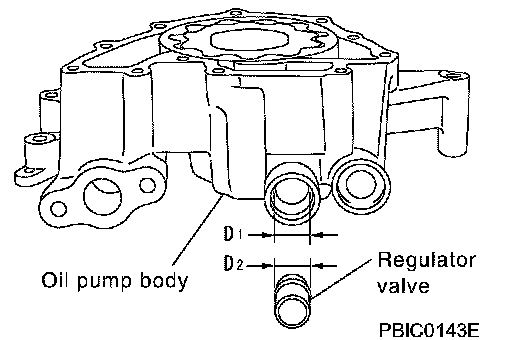

Regulator Valve
Regulator Valve Clearance (Clearance) = D1 (Valve hole diameter) - D2 (Outer diameter of valve)
Standard:.............0.040 - 0.097 mm (0.0016 - 0.0038 inch)
