Fuel Injector

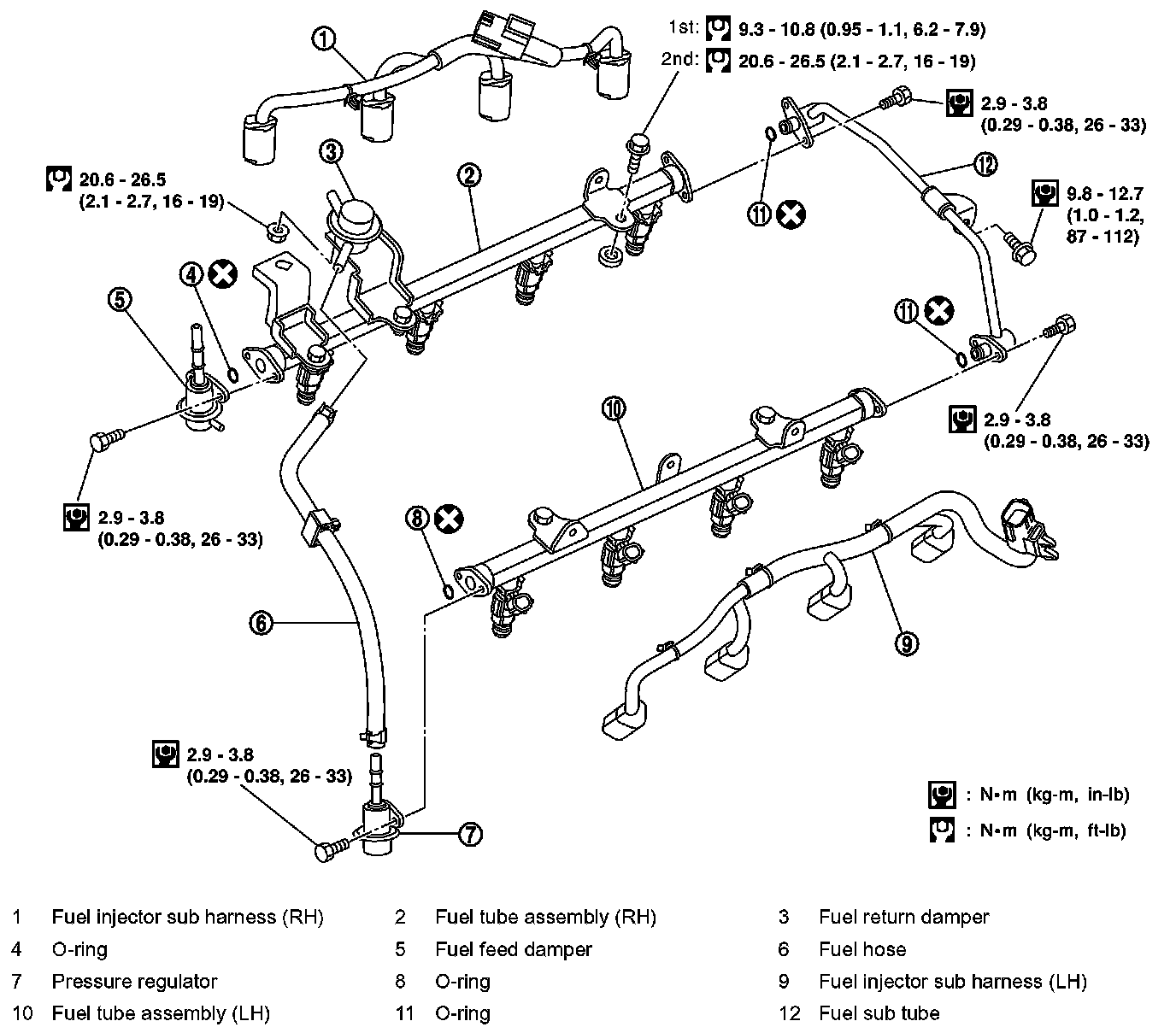

FUEL INJECTOR AND FUEL TUBE:

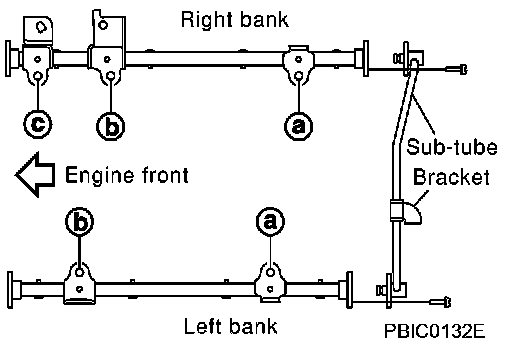

NOTE: Tighten fuel tube assembly mounting bolts "a" to "c" in illustration and in two steps.
FUEL TUBE MOUNTING BOLTS:
1st Step:
9.3 - 10.8 Nm (0.95 - 1.1 kg-m, 6.2 - 7.9 ft. lbs.)2nd Step:
20.6 - 26.5 Nm (2.1 - 2.7 kg-m, 16 - 19 ft. lbs.)
