Compressor

Compressor:

Model CALSONIC KANSEI make V-6
Type V-6 variable displcement
Displacement cm3 (cu in)/rev (Max.) 184 (11.228)
Displacement cm3 (cu in)/rev (Min.) 14.5 (0.885)
Cylinder bore x stroke mm (in) 37 (1.46) x [2.3 - 28.6 (0.091 - 1.126)]
Direction of rotation Clockwise (viewed from drive end)
Drive belt Poly V

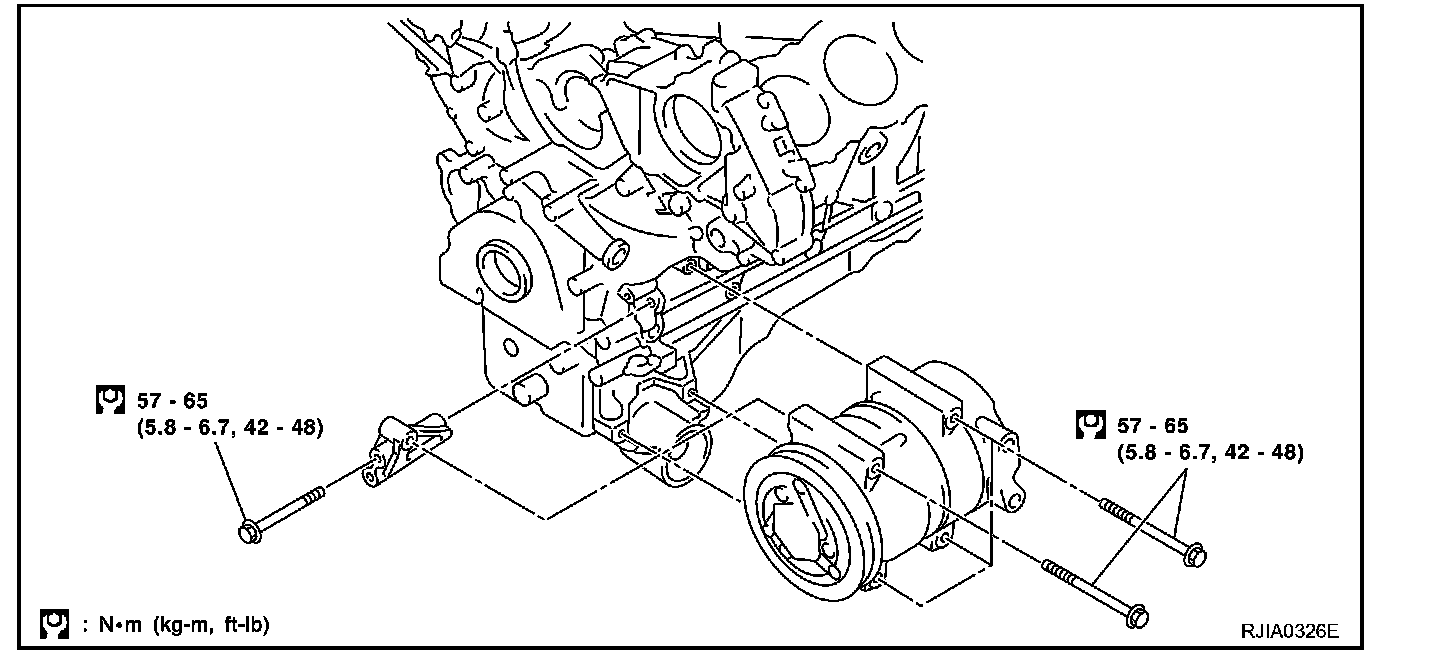

Bolts mounting the Compressor
Tightening torque 56.9 - 65.7 N-m (5.8 - 6.8 kg-m)

Nut mounting the high-pressure flexible hose
Tightening torque 7.85 - 19.6 N-m (0.8 - 2.0 kg-m)

Nut mounting the low-pressure flexible hose
Tightening torque 7.85 - 19.6 N-m (0.8 - 2.0 kg-m)
