Diagnostic Procedure 7 - Encoder Circuit Check

Encoder Circuit Check - Driver Side Step 1 - 2:

Diagnostic Procedure 7 - Encoder Circuit Check

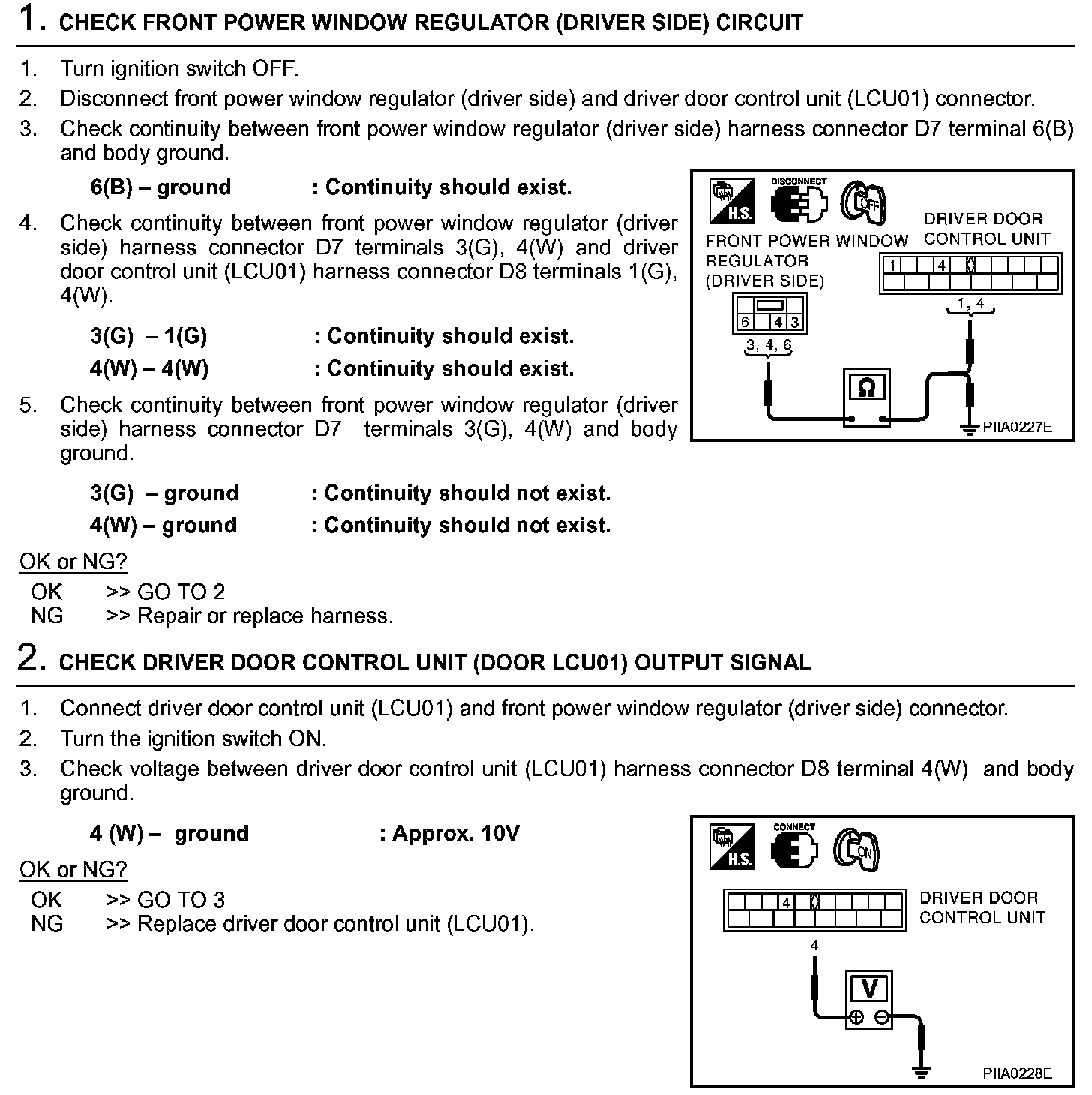

Encoder Circuit Check - Driver Side Step 1 - 2:

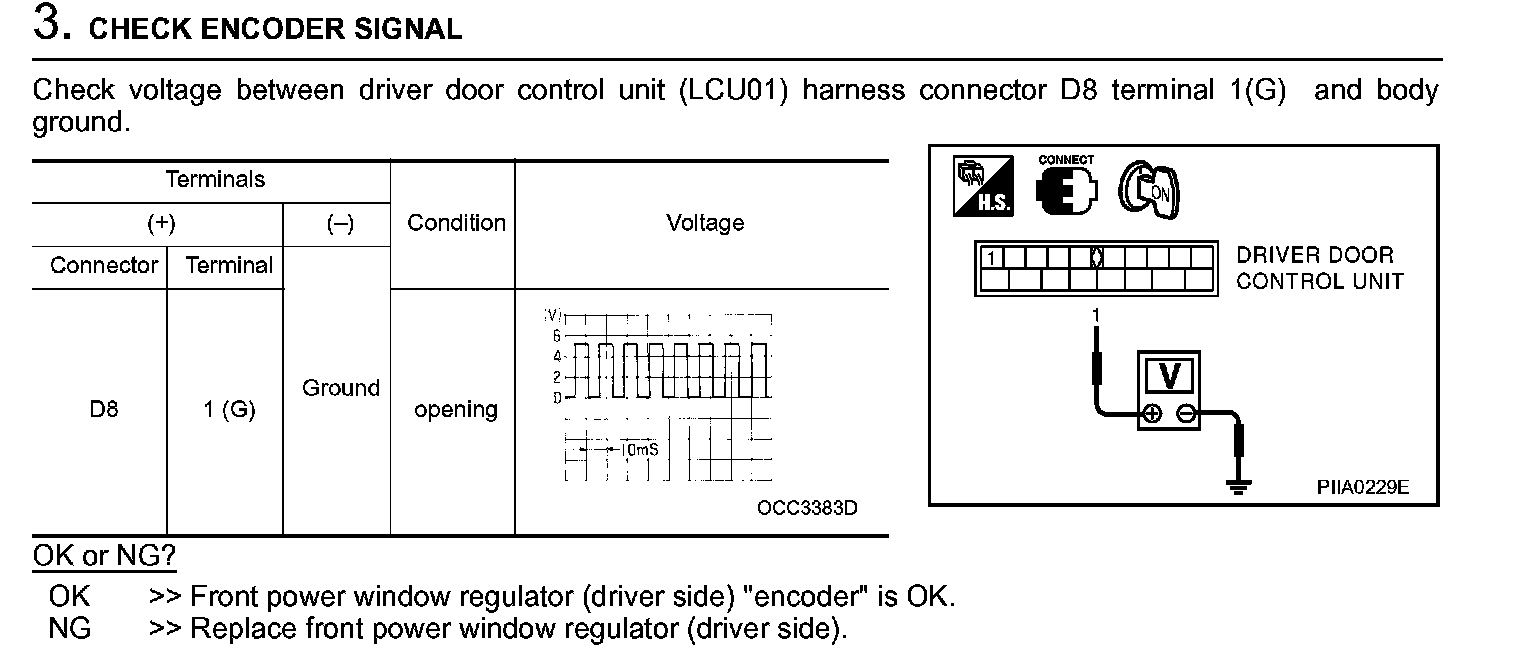

Encoder Circuit Check - Driver Side Step 3:

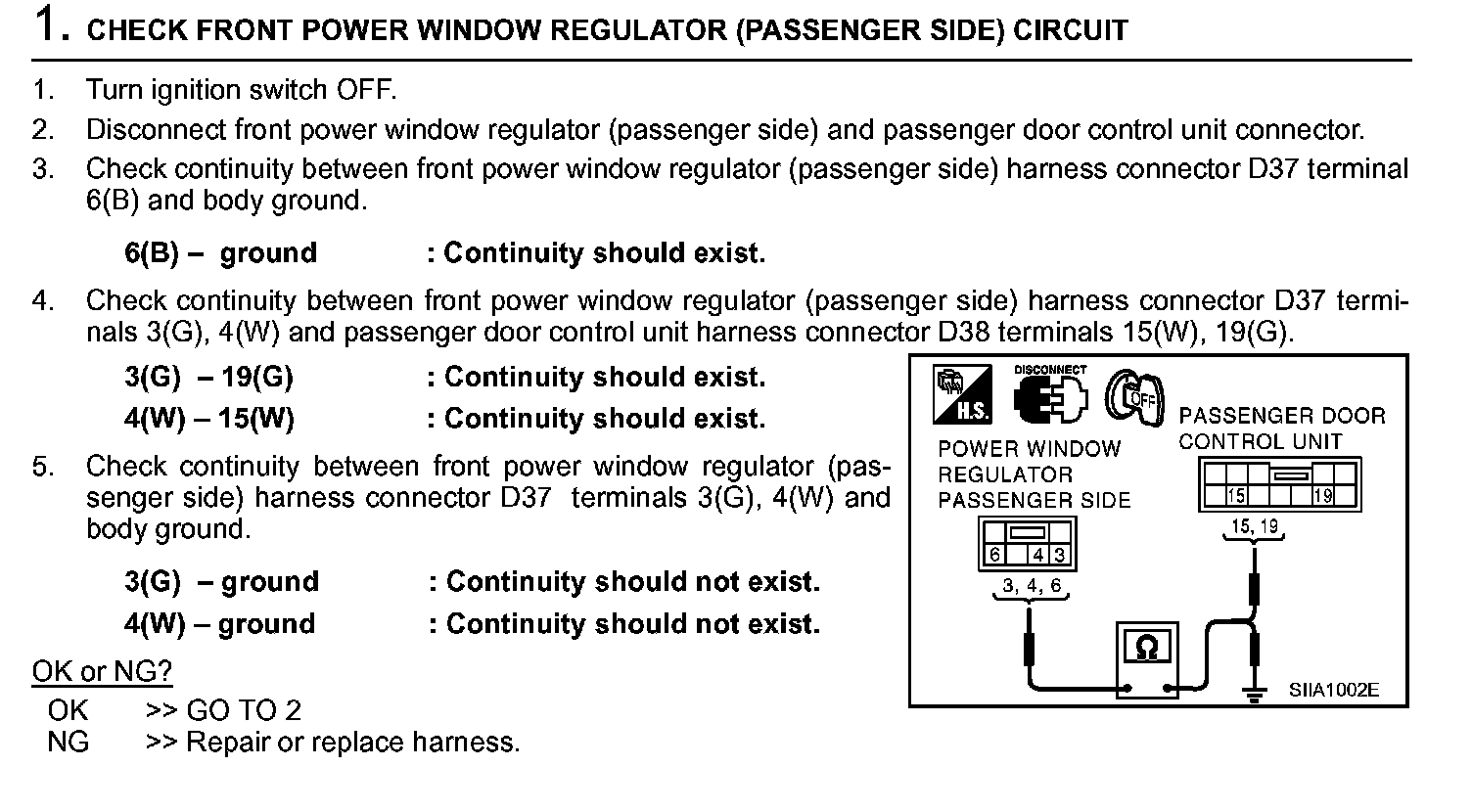

Encoder Circuit Check - Passenger Side Step 1:

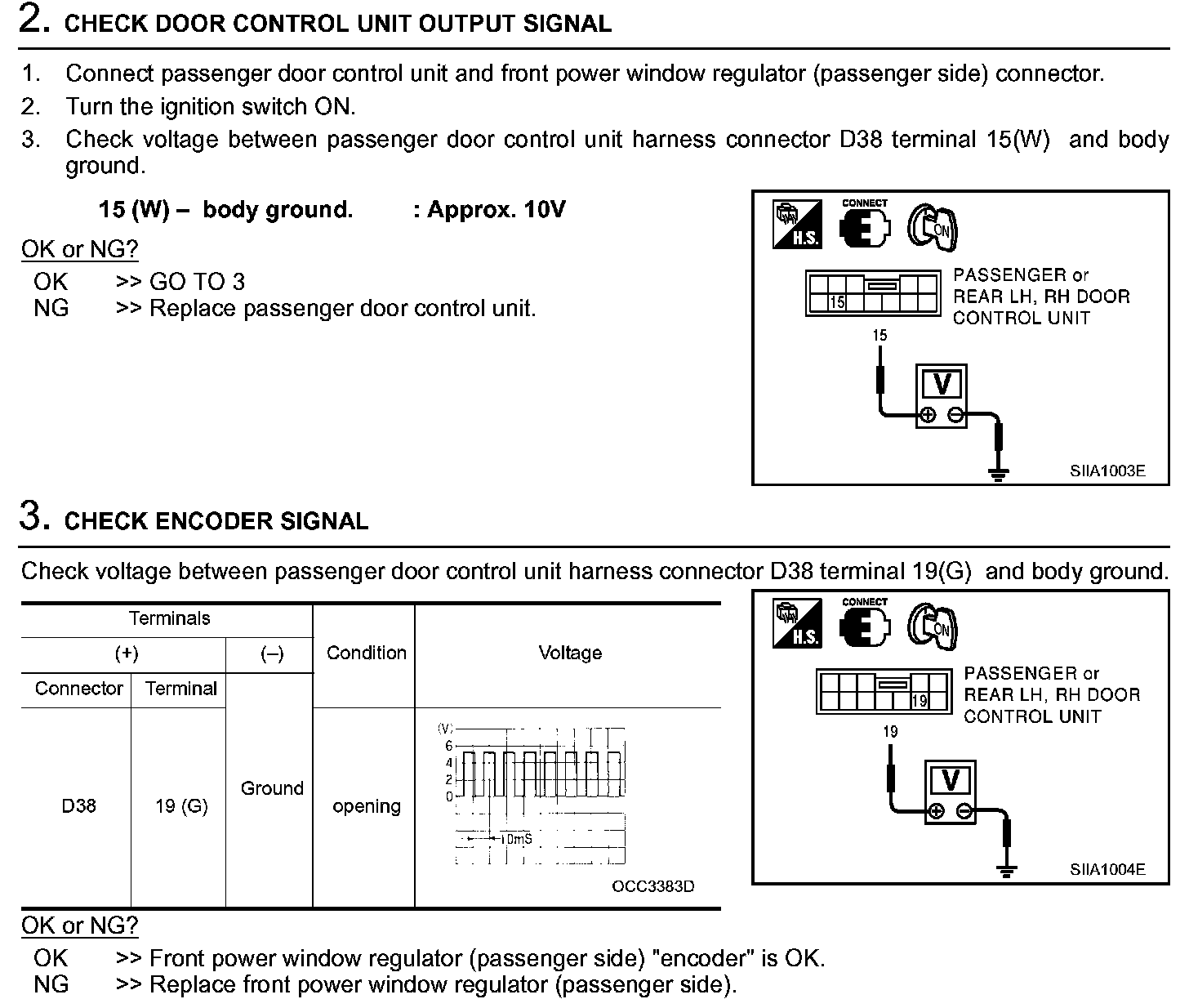

Encoder Circuit Check - Passenger Side Step 2 - 3:

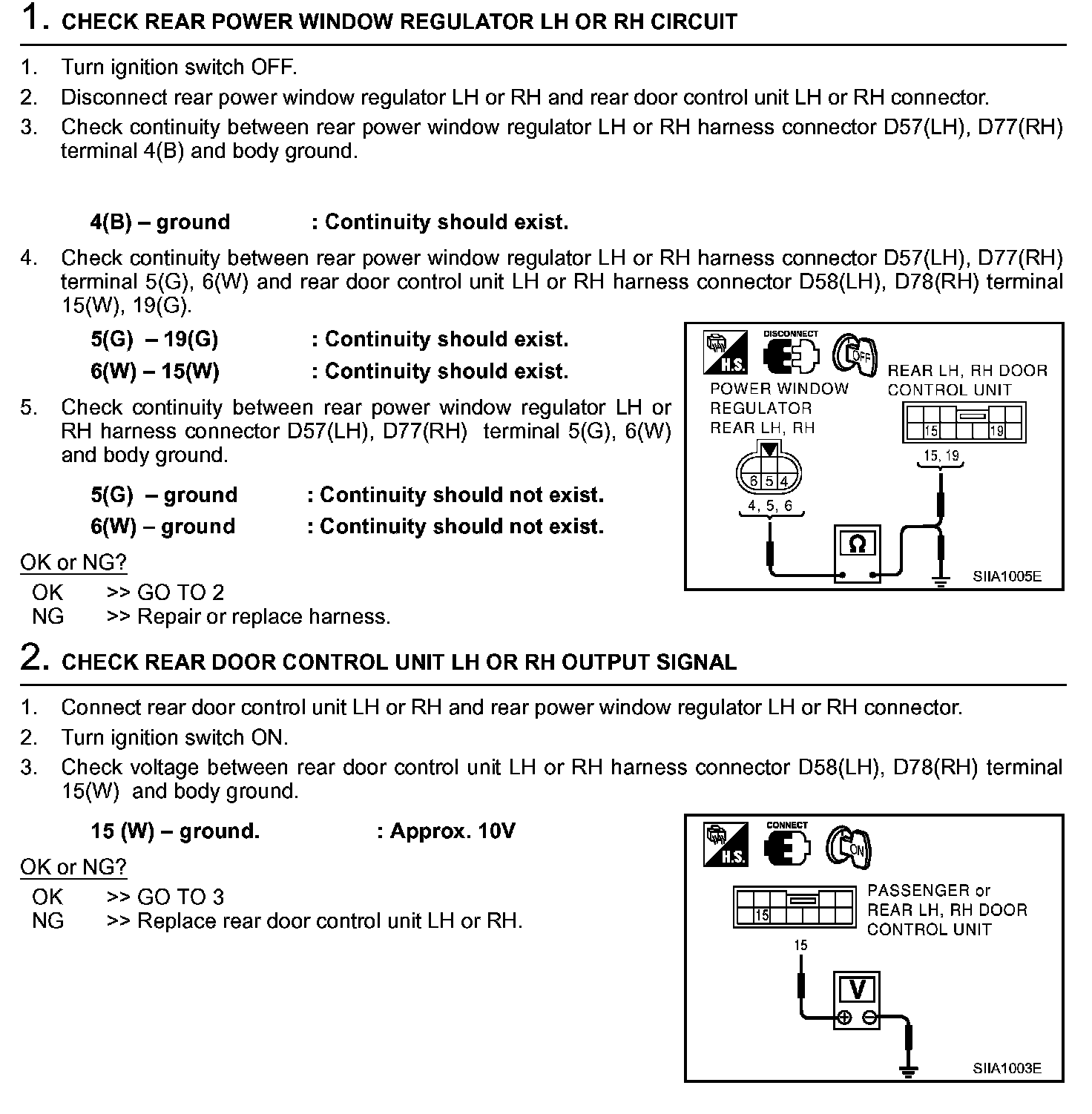

Encoder Circuit Check - Rear LH Or RH Step 1 - 2:

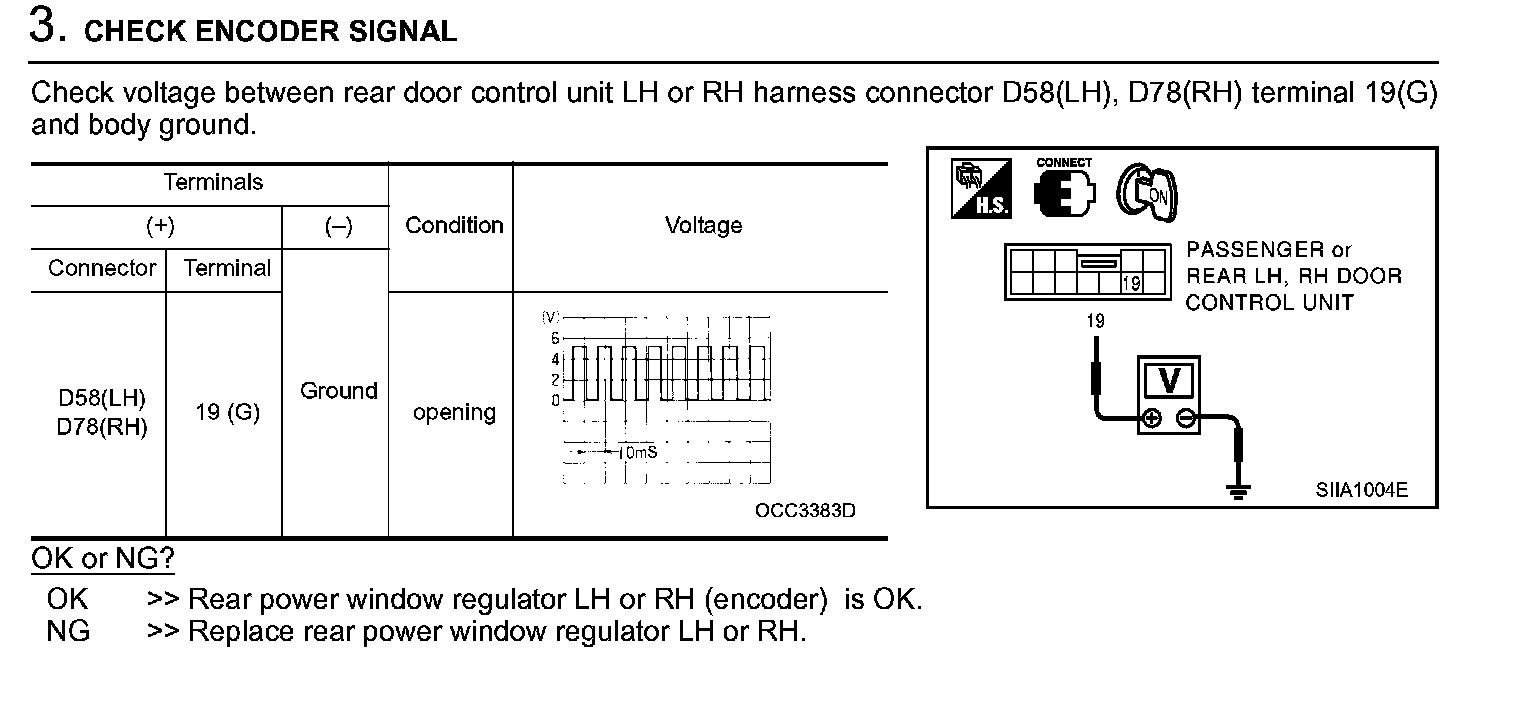

Encoder Circuit Check - Rear LH Or RH Step 3:
