Outline and Preparation

OUTLINE

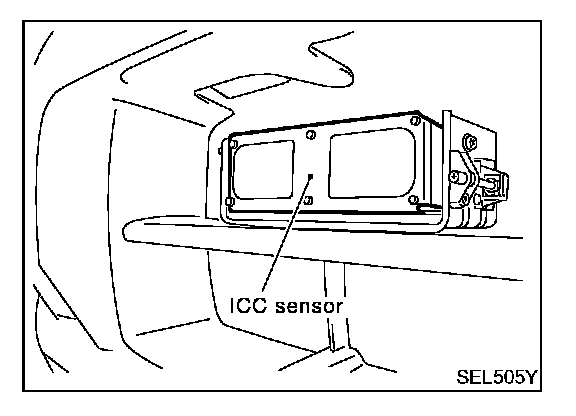

Adjust the laser beam aiming every time the ICC sensor is removed or installed.

CAUTION: Place the vehicle on the level ground when the laser beam aiming adjustment is operated.
Follow the CONSULT-II when adjusting the Laser beam aiming (Laser beam aiming adjustment cannot be operated without CONSULT-II).


PREPARATION
Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure value.

See that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position). Coolant, engine oil filled up to correct level and full fuel tank.

Shift the gear into "P" position and release the parking brake.






Clean the sensor with a soft cloth.



OUTLINE OF ADJUSTMENT PROCEDURE
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSULT-II (Turn manually the screw for up-down position adjustment. ICC sensor automatically adjust the right-left position).
