Sensor Reference Graphs In Data Monitor Mode

The following are the major sensor reference graphs in "DATA MONITOR" mode.

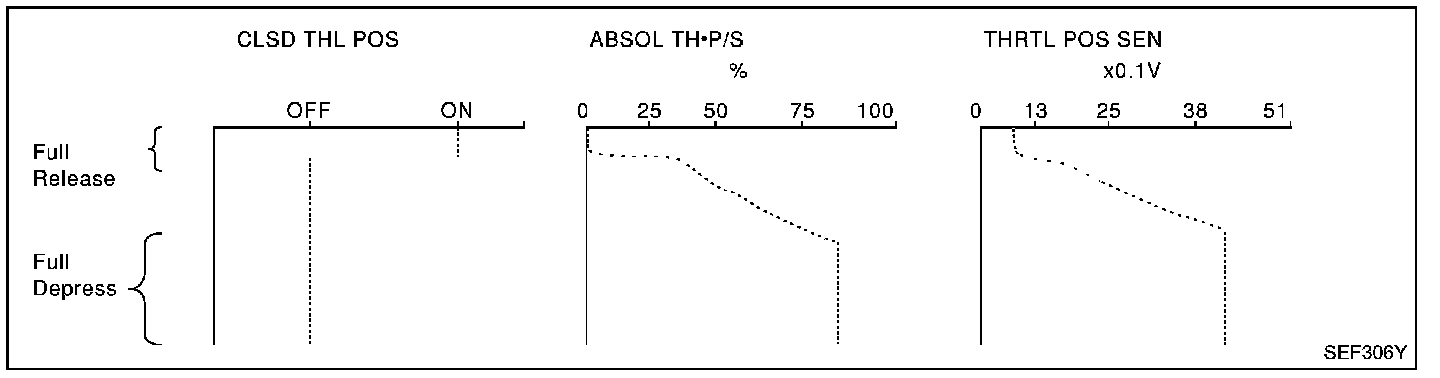

THRTL POS SEN, ABSOL TH.P/S, CLSD THL POS
Below is the data for "THRTL POS SEN", "ABSOL TH.P/S" and "CLSD THL POS" when depressing the accelerator pedal with the ignition switch "ON".




The signal of "THRTL POS SEN" and "ABSOL TH.P/S" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from "ON" to "OFF".

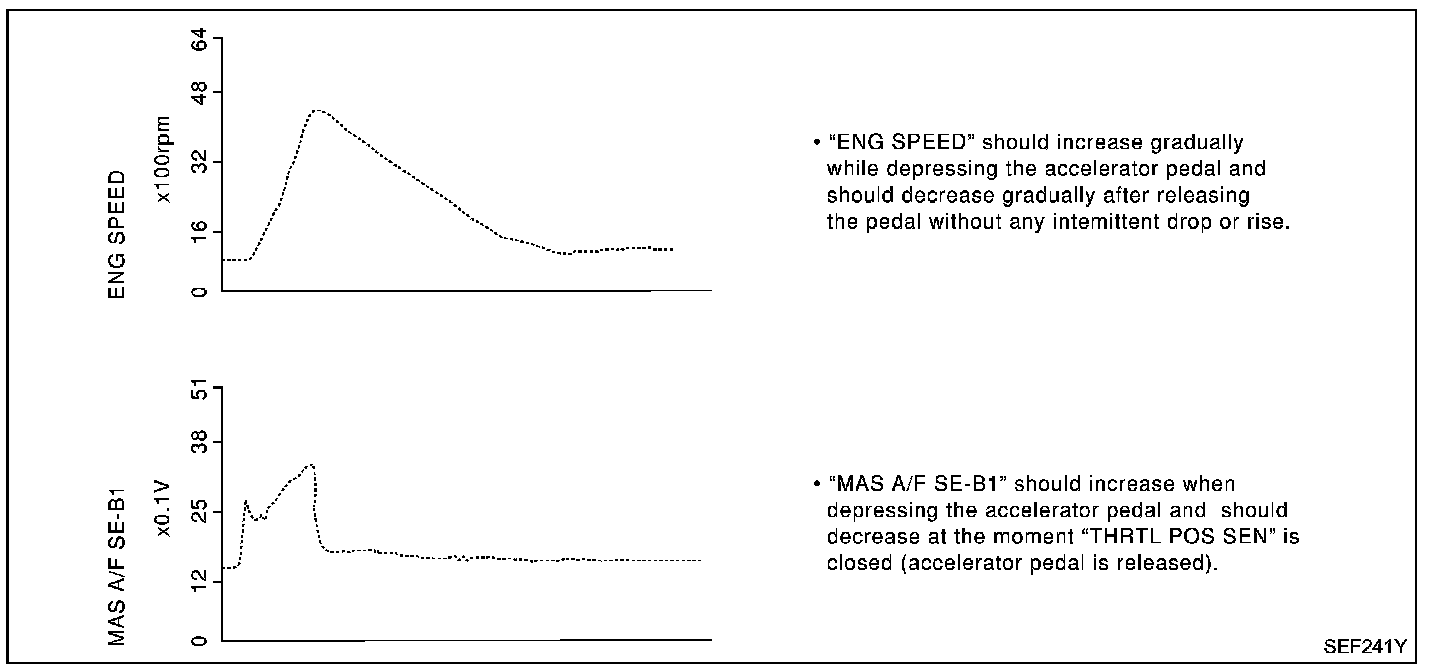

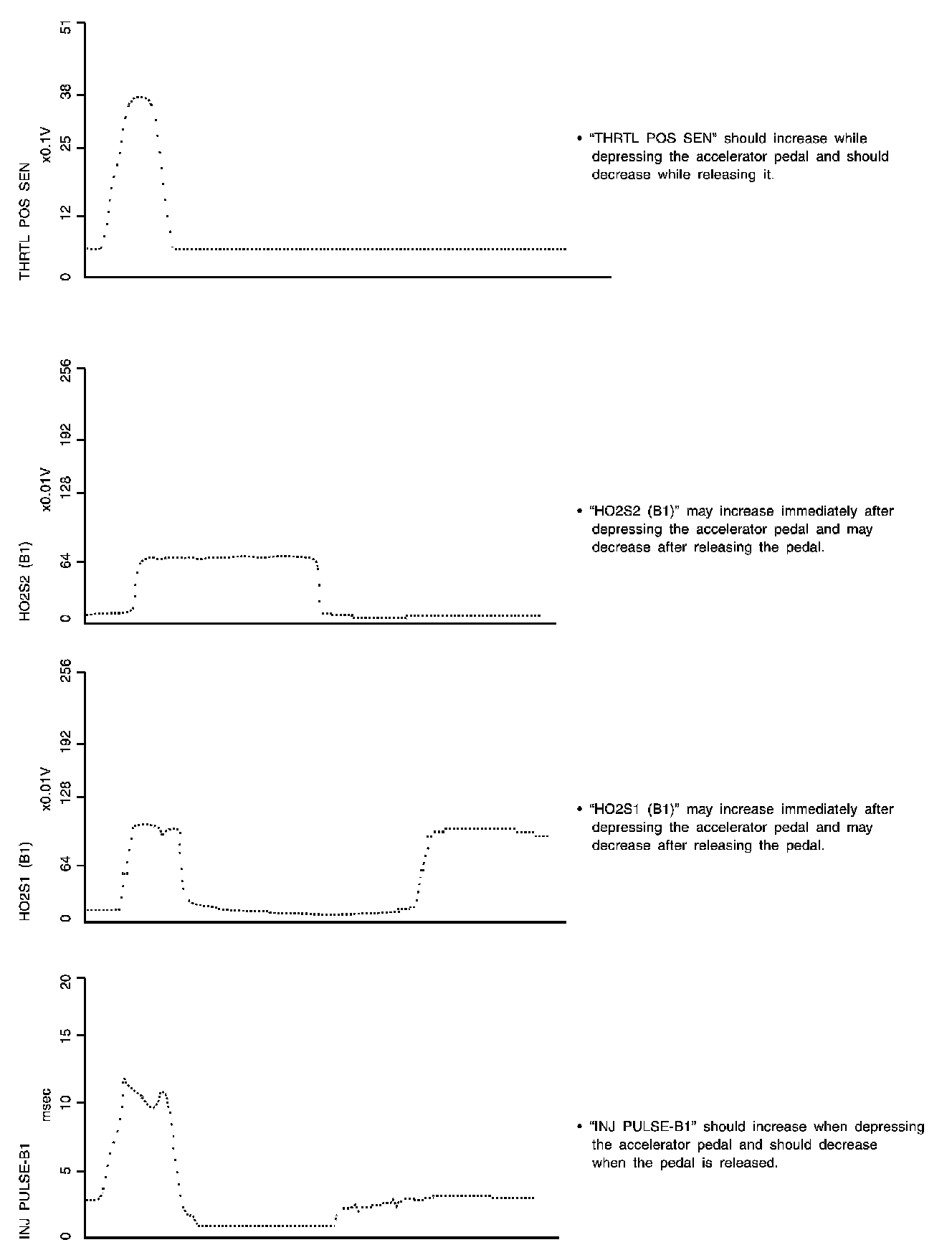

ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
above is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL POS SEN", "HO2S2 (B1)", "HO2S1 (B1)" and "INJ PULSE-B1" when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.
