Electronic Brake Control Module: Service and Repair

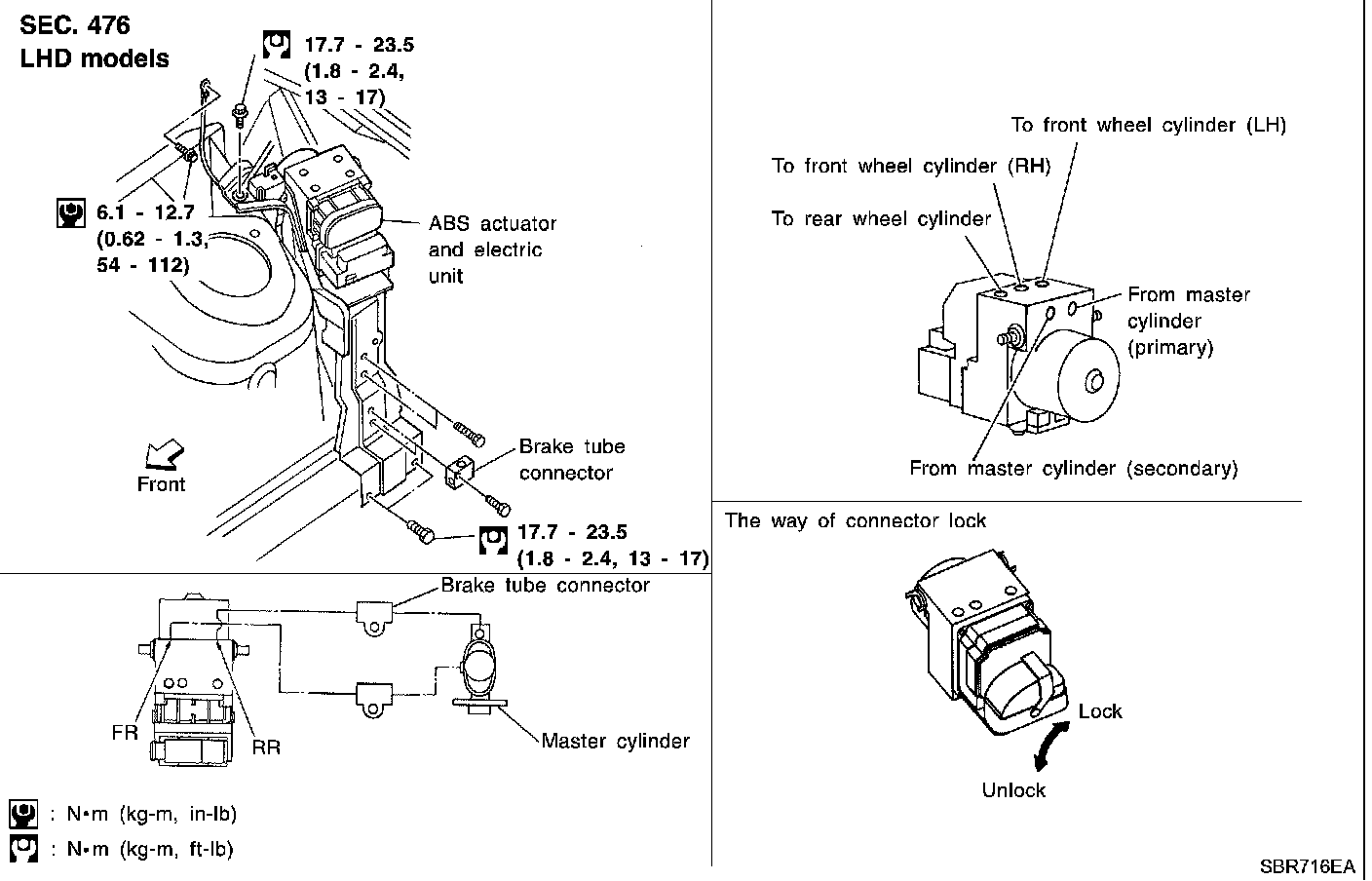

ABS Actuator and Electric Unit






REMOVAL
1. Disconnect battery cable.
2. Drain brake fluid.
3. Remove mounting bracket fixing bolts and nuts.
4. Disconnect connector, brake pipes and remove fixing nuts and actuator ground cable.

INSTALLATION

CAUTION: After installation, refill brake fluid. Then bleed air.

1. Tighten actuator ground cable. Place ground cable at a notch of mounting bracket.
2. Connect brake pipes temporarily.
3. Tighten fixing bolts and nuts.
4. Tighten brake pipes.
5. Connect connector and battery cable.
