Intake Manifold Torque & Sequence

ENGINE OUTER COMPONENT PARTS (1 OF 2):

ENGINE OUTER COMPONENT PARTS (2 OF 2):

Intake Manifold Torque Sequence:

Intake Manifold
Step 1 (In sequence) 5 - 10 Nm (44 - 86 in-lbf)
Step 2 (In sequence) 26 - 31 Nm (20 - 23 ft-lbf)

Tighten all bolts to final torque, evenly dividing the tightening into at least five steps.

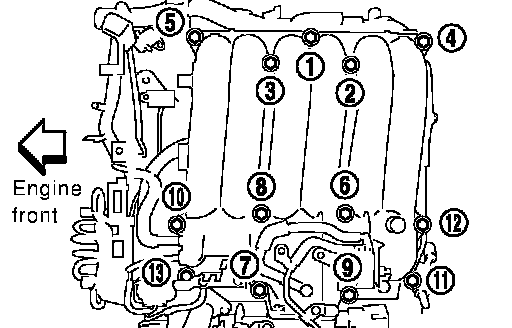

UPPER INTAKE MANIFOLD COLLECTOR TORQUE SEQUENCE:

Upper Intake Manifold Collector
(In order): 18 to 21 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.)

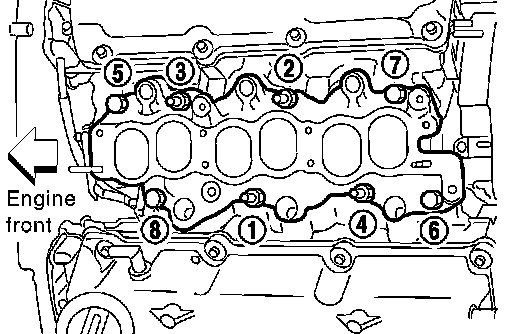

LOWER INTAKE MANIFOLD COLLECTOR TORQUE SEQUENCE:

Lower Intake Manifold Collector
(In order): 18 to 21 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.)
