Rocker Cover Torque & Sequence

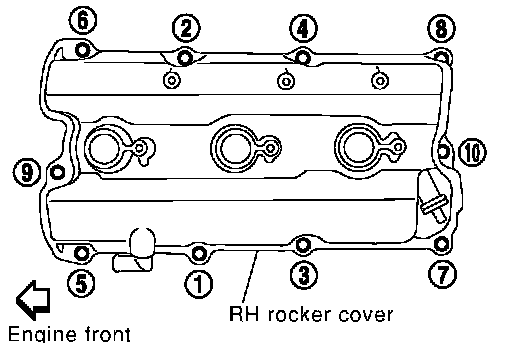

Right Rocker Cover Bolt Torque Sequence:

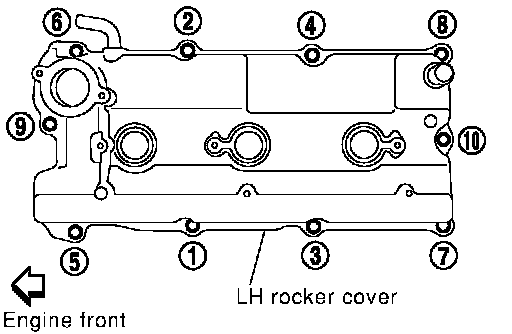

Left Rocker Cover Bolt Torque Sequence:
Tighten in numerical order as shown in the figures.
Tighten bolts 1 to 10 in that order to
6.9 to 8.8 Nm (0.7 to 0.9 kg-m, 61 to 78 inch lbs.).
Then tighten bolts 1 to 10 as indicated in figure to
6.9 to 8.8 N m (0.7 to 0.9 kg-m, 61 to 78 inch lbs.).
