Radiator Support: Service and Repair

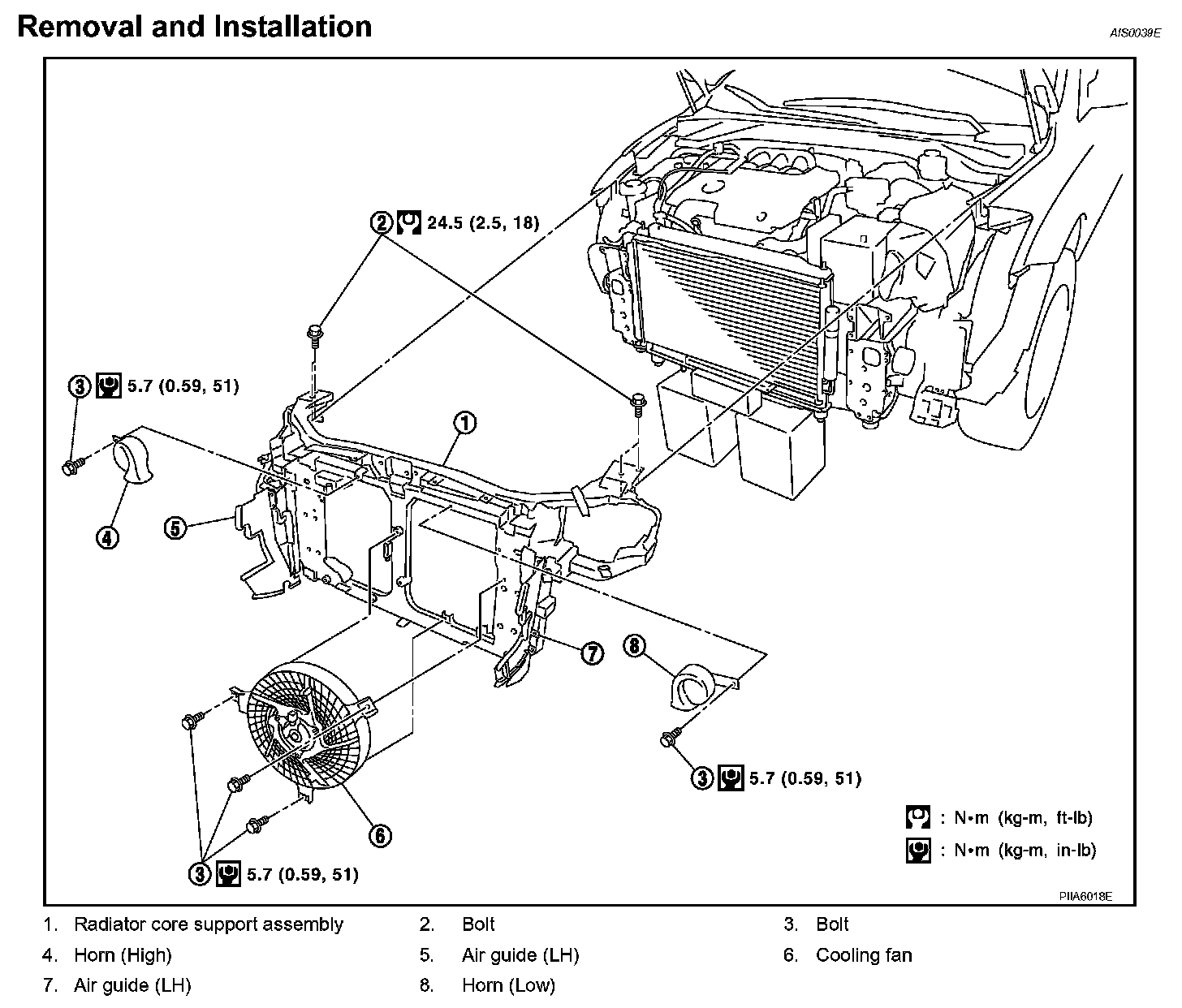

RADIATOR CORE SUPPORT




Removal and Installation

REMOVAL
1. Remove the front fender protector.
2. Remove the front bumper.
3. Remove the ICC.
4. Remove the headlamp.
5. Remove the washer tank.
6. Remove the resonator.
7. Remove the power steering oil cooler.
8. Remove the ambient sensor.
9. Remove the crash zone sensor.
10. Remove the horn connector, blower fan connector and harness clip.
11. Remove the support finisher & grill.
12. Remove the hood lock and disconnect hood lock control cable.
13. Remove the reservoir tank.
14. Remove mounting blots and remove the radiator core support.
15. After remove radiator core support, remove the horn, cooling fan.

INSTALLATION
Install in the reverse order of removal.
