Map Light Bulb: Service and Repair

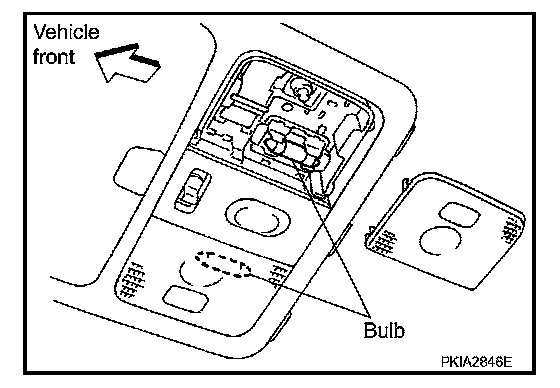

MAP LAMP

Bulb Replacement




1. Remove lens using clip driver or suitable tool.
2. Remove bulb.

Map lamp : 12 V - 8 W

3. Install in the reverse order of removal.

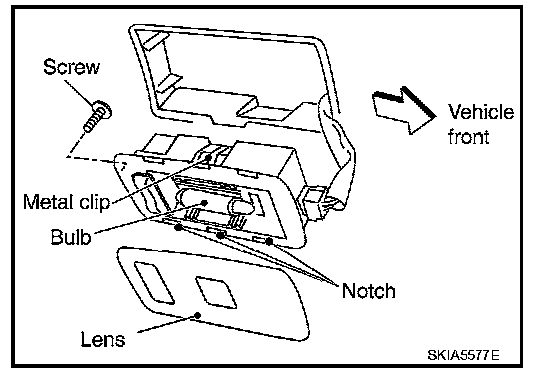

PERSONAL LAMP

Bulb Replacement




1. Remove personal lamp. Refer to "Removal and Installation".
2. Remove screw from personal lamp.
3. Insert a screwdriver or similar tool and remove lens.
4. Remove bulb.

Personal lamp : 12 V - 8 W

5. Install in the reverse order of removal.
