Ignition Coil: Testing and Inspection

IGNITION COIL WITH POWER TRANSISTOR
1. Turn ignition switch "OFF".
2. Disconnect ignition coil harness connector.

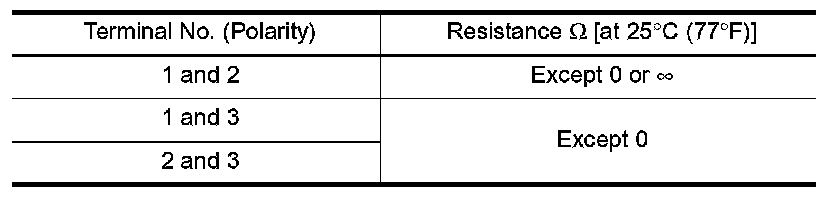

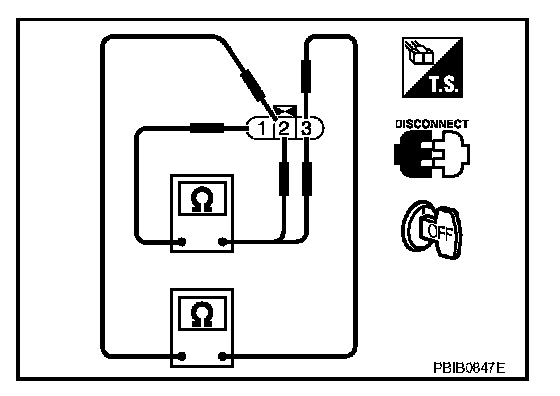

3. Check resistance between ignition coil terminals as specified.
