Ignition Timing: Testing and Inspection
IGNITION TIMINGAny of following two methods may be used.
Method A 1.

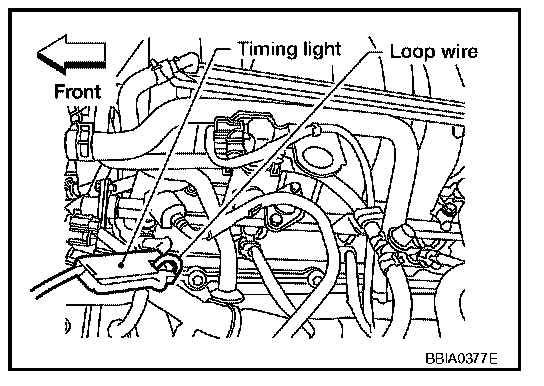

Attach timing light to loop wire as shown.
2.

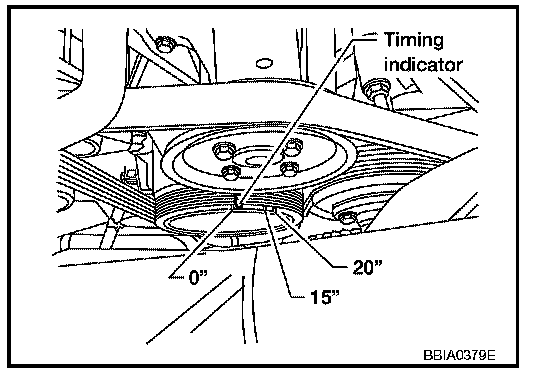

Check
ignition timing.
Method B 1.

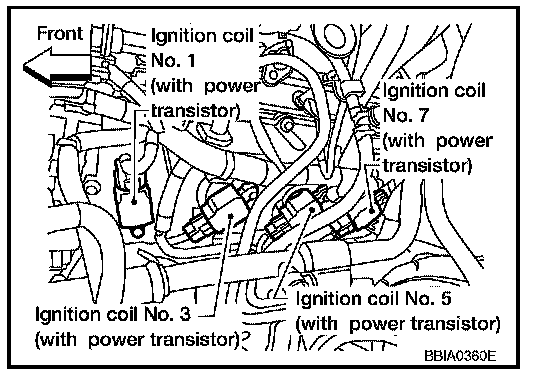

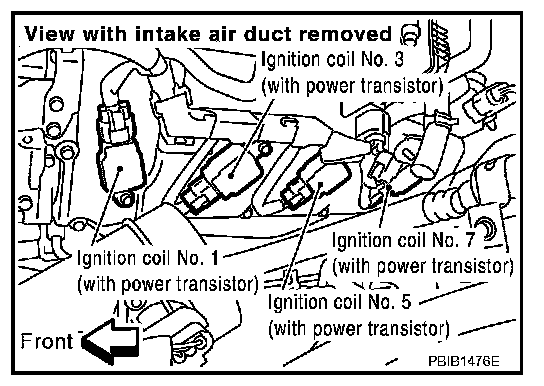

Remove No. 1 ignition coil.
2.

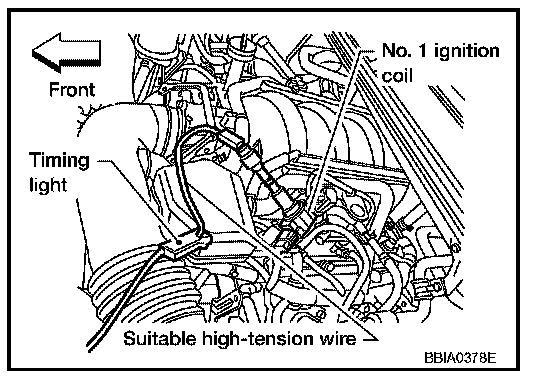

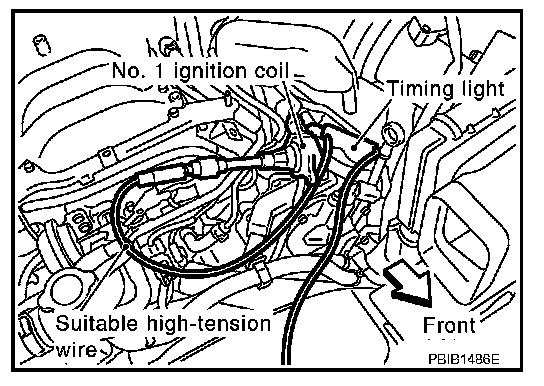

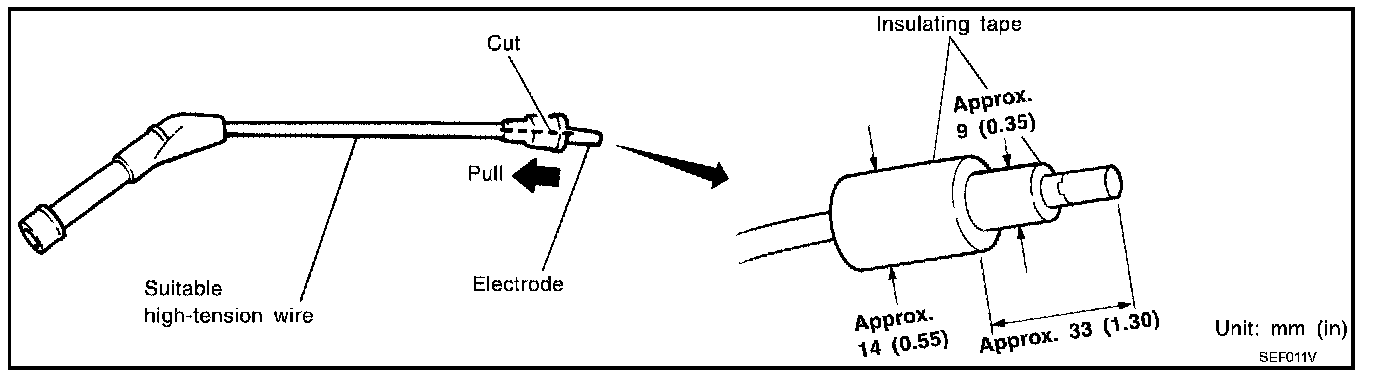

Connect No. 1 ignition coil and No. 1

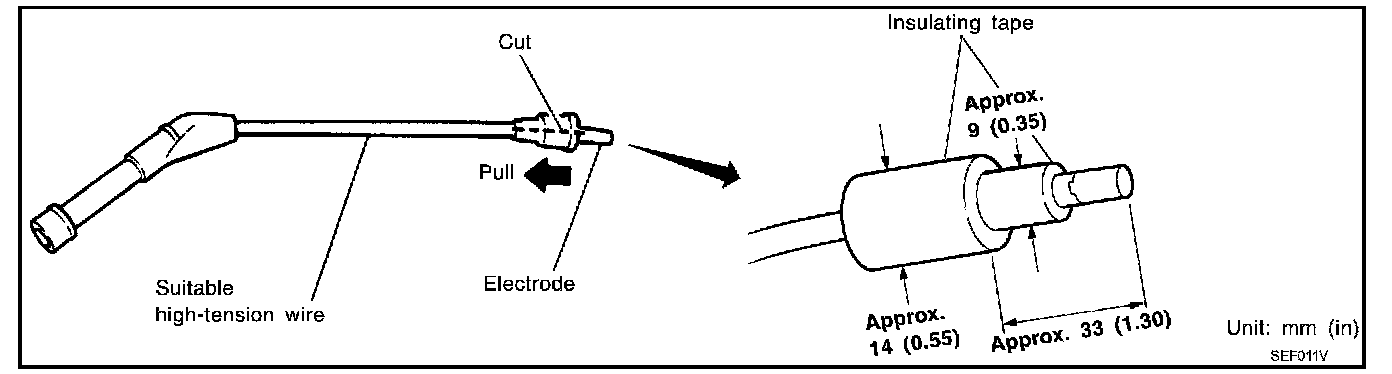

spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
3.

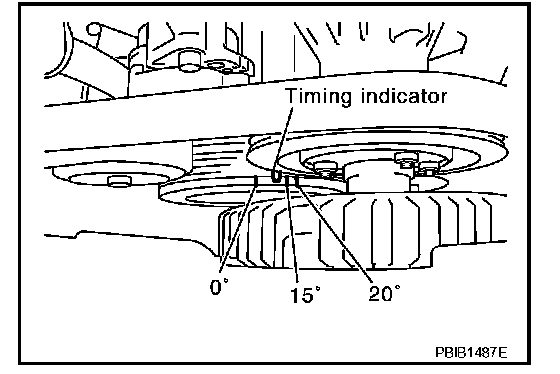

Check
ignition timing.
