Flex Plate

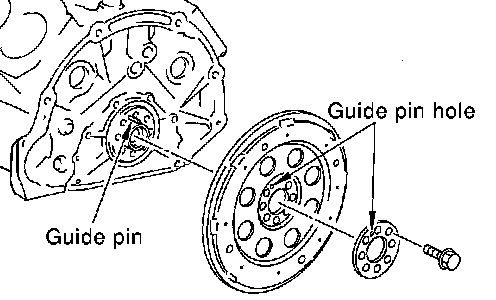

Align guide pin of crankshaft rear end with pin holes of each parts to install.

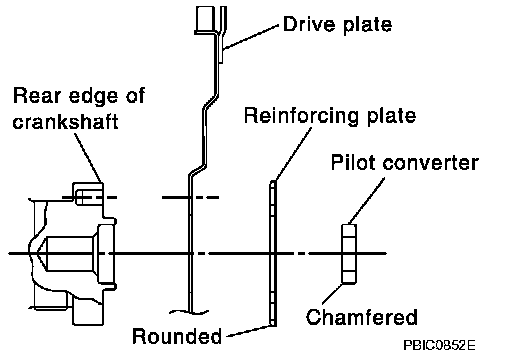

Install drive plate, reinforcement plate and pilot converter as shown in figure.
Face chamfered or rounded edge side to crankshaft.

Flexplate Bolt Torque
88.5, 9.0, 65 (Nm, Kg/m, ft.lb)
