Disassembly of Display Unit Assembly

Disassembly of Display Unit Assembly


1. Remove display unit assembly.Refer to navigation System;Service and Repair.

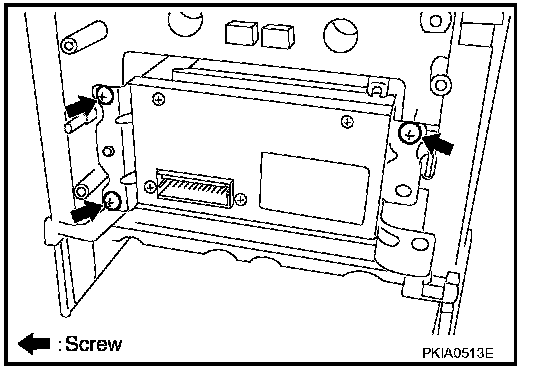

2. Remove screws (3) and remove power source box.

NOTE: Be careful to handle display unit and power source box because they are connected each other via FPC (Flexible Print Circuit).

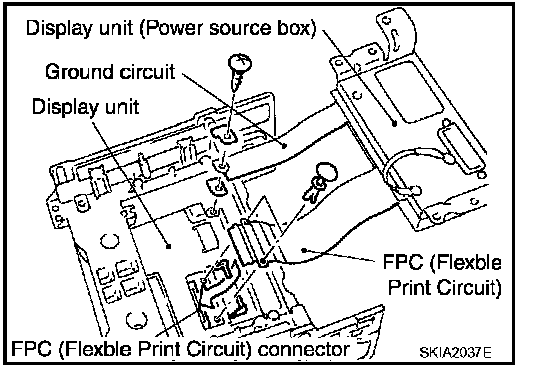

3. Unlock FPC (Flexible Print Circuit) connector from display unit.




4. Remove clips (2) fixing FPC (Flexible Print Circuit) at back side of display unit.
5. Remove screw and remove ground circuit.

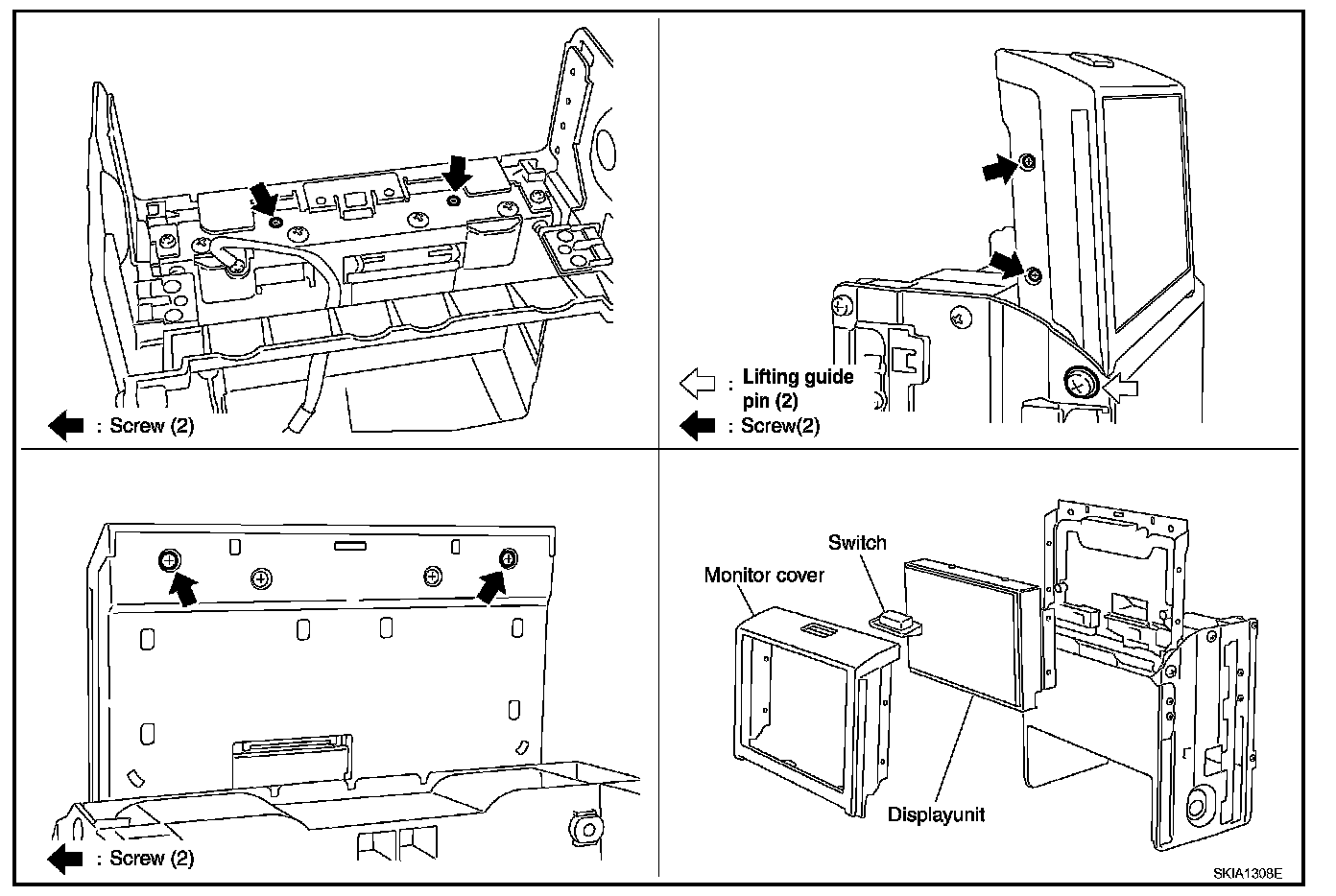

6. Using a precision screwdriver remove screws (RH/LH back and bottom) and lifting guide pin on display. Separate monitor cover and display unit.
