Display Setting Mode

"DISPLAY SETTING" MODE

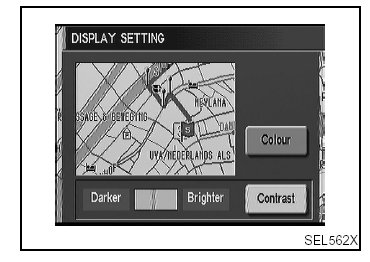

Display Color Setting
1. Start the engine.
2. Push "OPEN/CLOSE" switch and then open the display.
3. Push "SETTING" switch.
4. Select "System Setting".
5. Select "Color". Display color will change to Day mode/Night mode.
6. Select "MAP" switch, then the display will go back to the current location map.







NOTE: Display color can be changed independently when lighting switch is turned on and off.
Initial setting of the color is as follows:
- When lighting switch is turned off......Day mode
- When lighting switch is turned on......Night mode

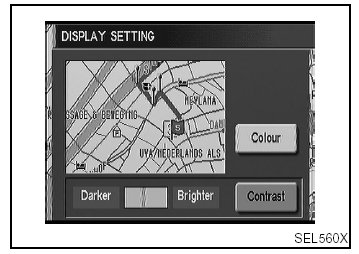

Brightness Setting
1. Start the engine.
2. Push "OPEN/CLOSE" switch and then open the display.
3. Push "SETTING" switch.
4. Select "System Setting".
5. Select "Bright" or "Dark" to adjust the brightness of display.
6. Select "MAP" switch, then the display will go back to the current location map.

NOTE: Display brightness can be adjusted independently when lighting switch is turned on and off.
