Tracking Mode





"TRACKING" MODE
1. Start the engine.
2. Push "OPEN/CLOSE" switch and then open the display.
3. Push "SETTING" switch.

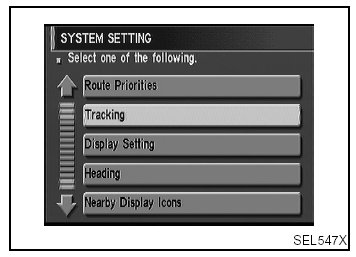

4. Select "System Setting".
5. Select "Tracking".

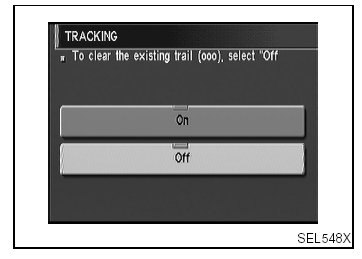

6. Select "On" or "Off" icon.
- To leave no trail on the map, select "Off".
- To leave a trail in the map, select "On".

7. Push "MAP" switch, then the display will go back to the current location map.

NOTE: When a trail display is turned OFF, trail data is erased from the memory.
