Control Unit

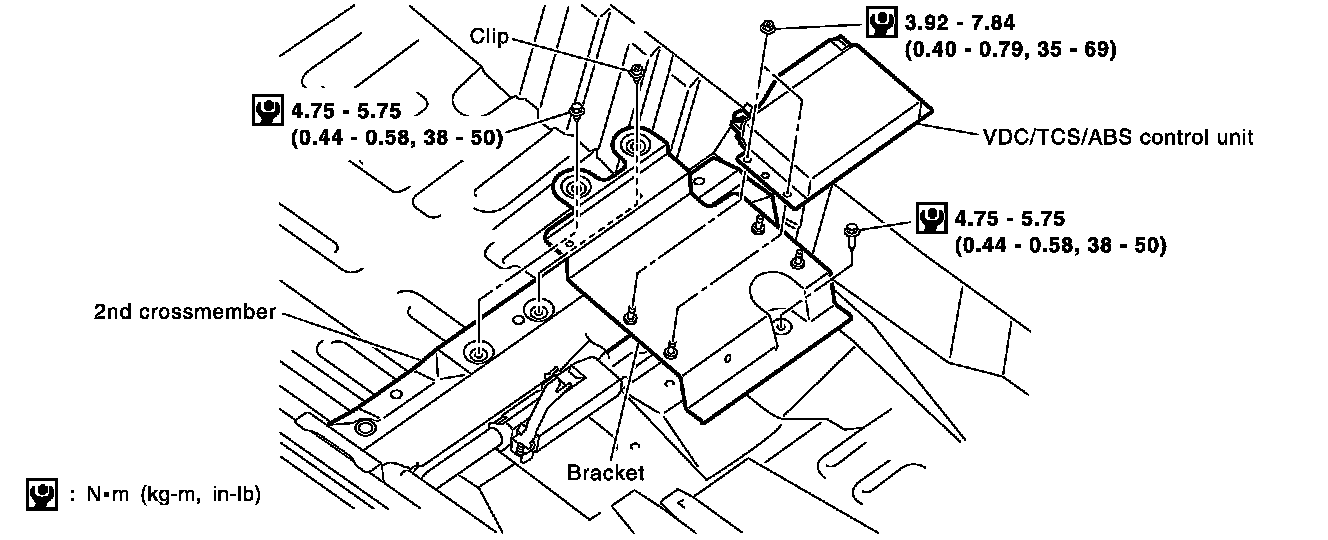

VDC/TCS/ABS Control Unit:






REMOVAL
1. Remove the front seat LH.
2. Remove the VDC/TCS/ABS control unit.


INSTALLATION

Installation is the reverse order of removal.
