Infiniti
>>
2003
>>
I35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Components
Components
Components

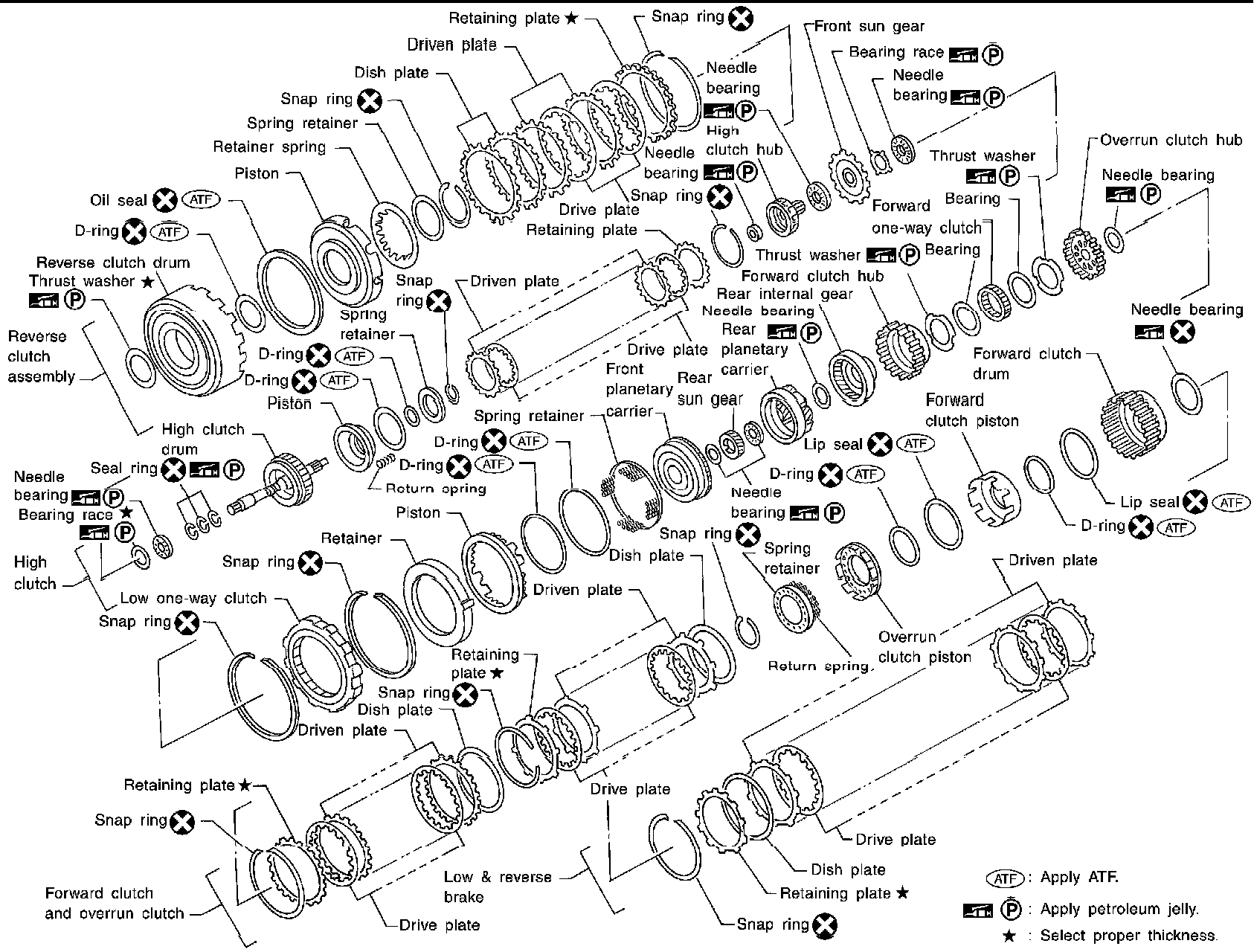

View 1 Of 3:

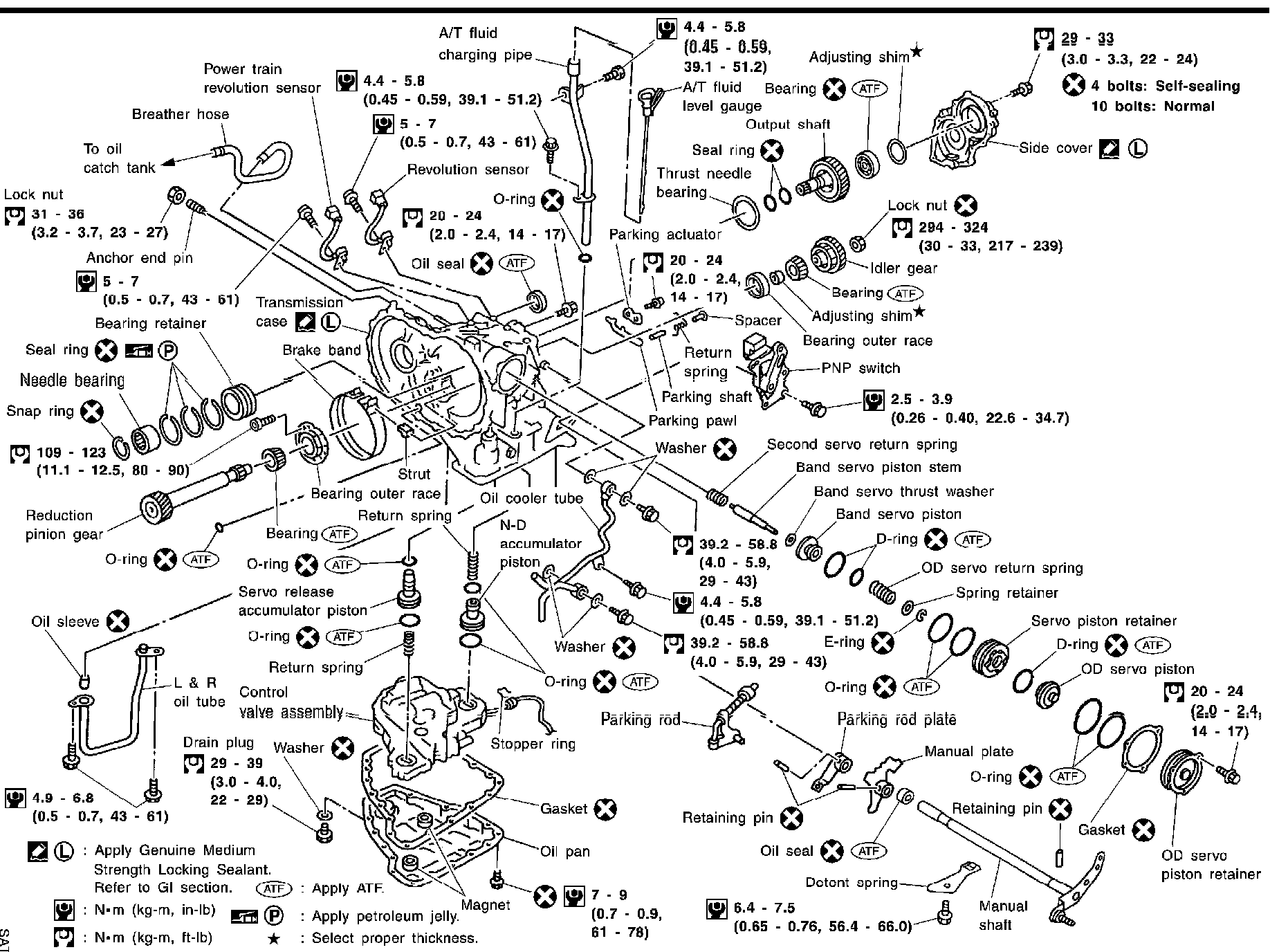

View 2 Of 3:
View 3 Of 3:
