CONSULT-II / Inspection Procedure

CONSULT-II INSPECTION PROCEDURE






1. Turn the ignition switch "OFF".
2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.
3. Turn ignition switch "ON".

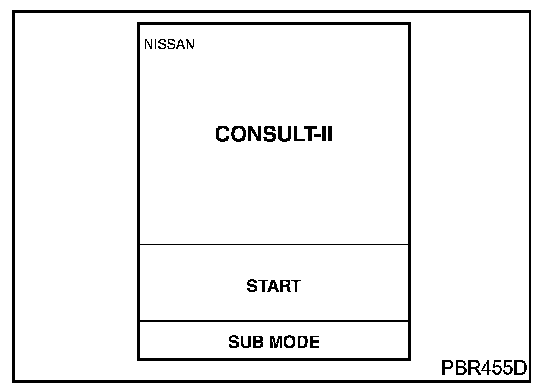

4. Touch "START".

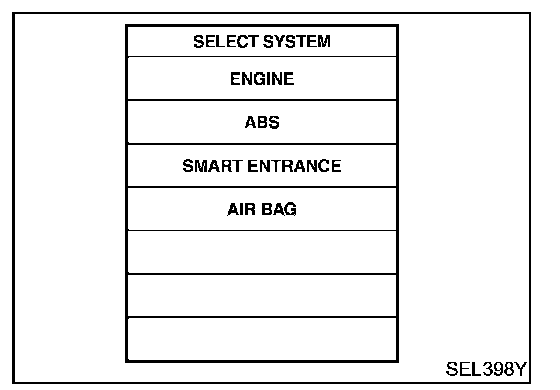

5. Touch "SMART ENTRANCE". If "SMART ENTRANCE" is not indicated, go to:
Diagrams / Diagnostic Aids / CONSULT-II Checking System / Checking/Loading Equipment. CONSULT-II Checking System

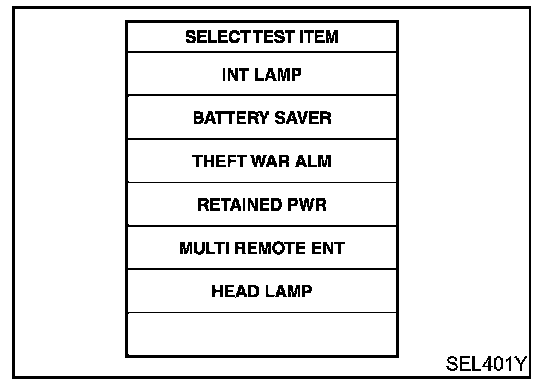

6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION".
