EC-MAIN

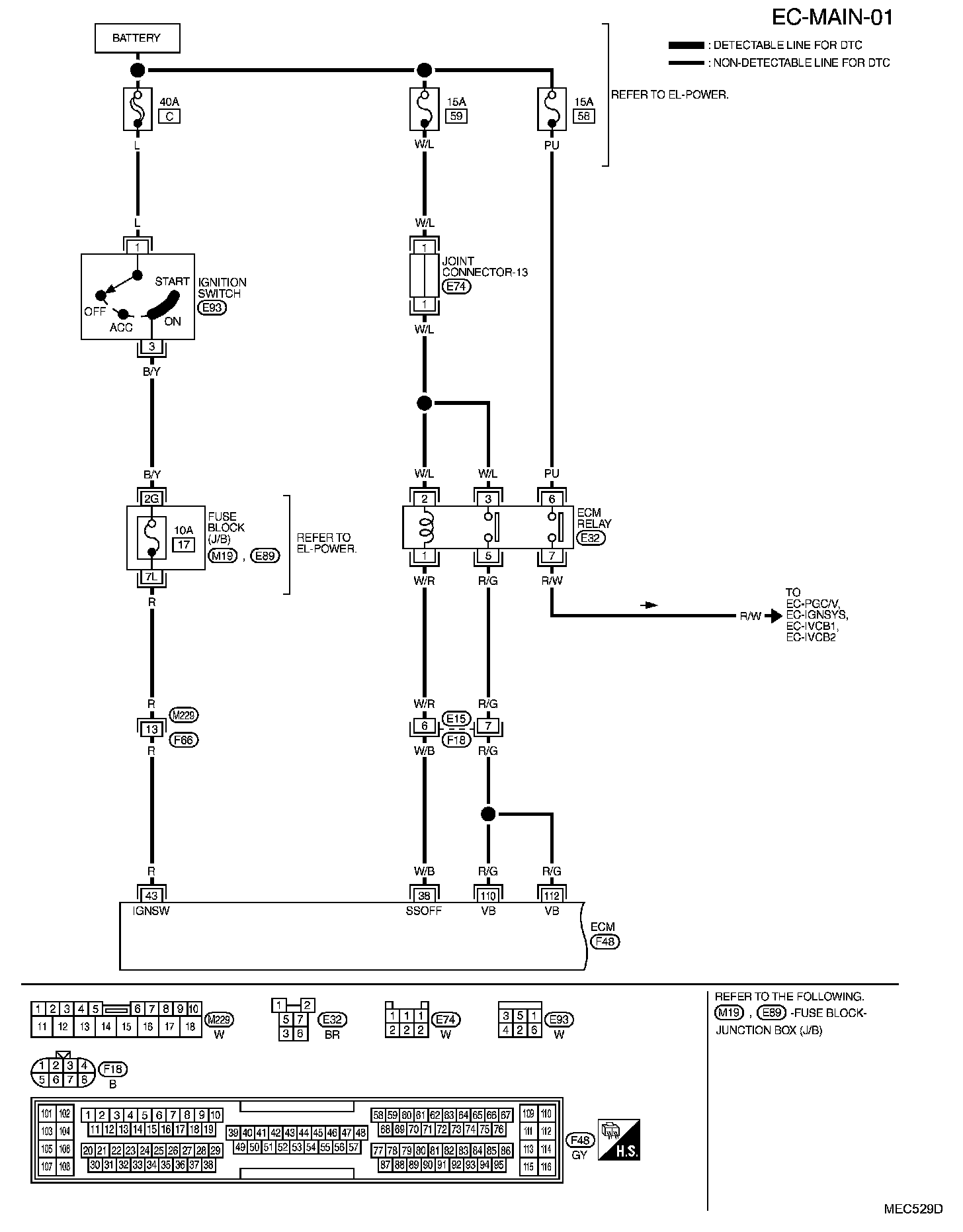

EC-MAIN-01 (Main Power Supply And Ground Circuit Check):

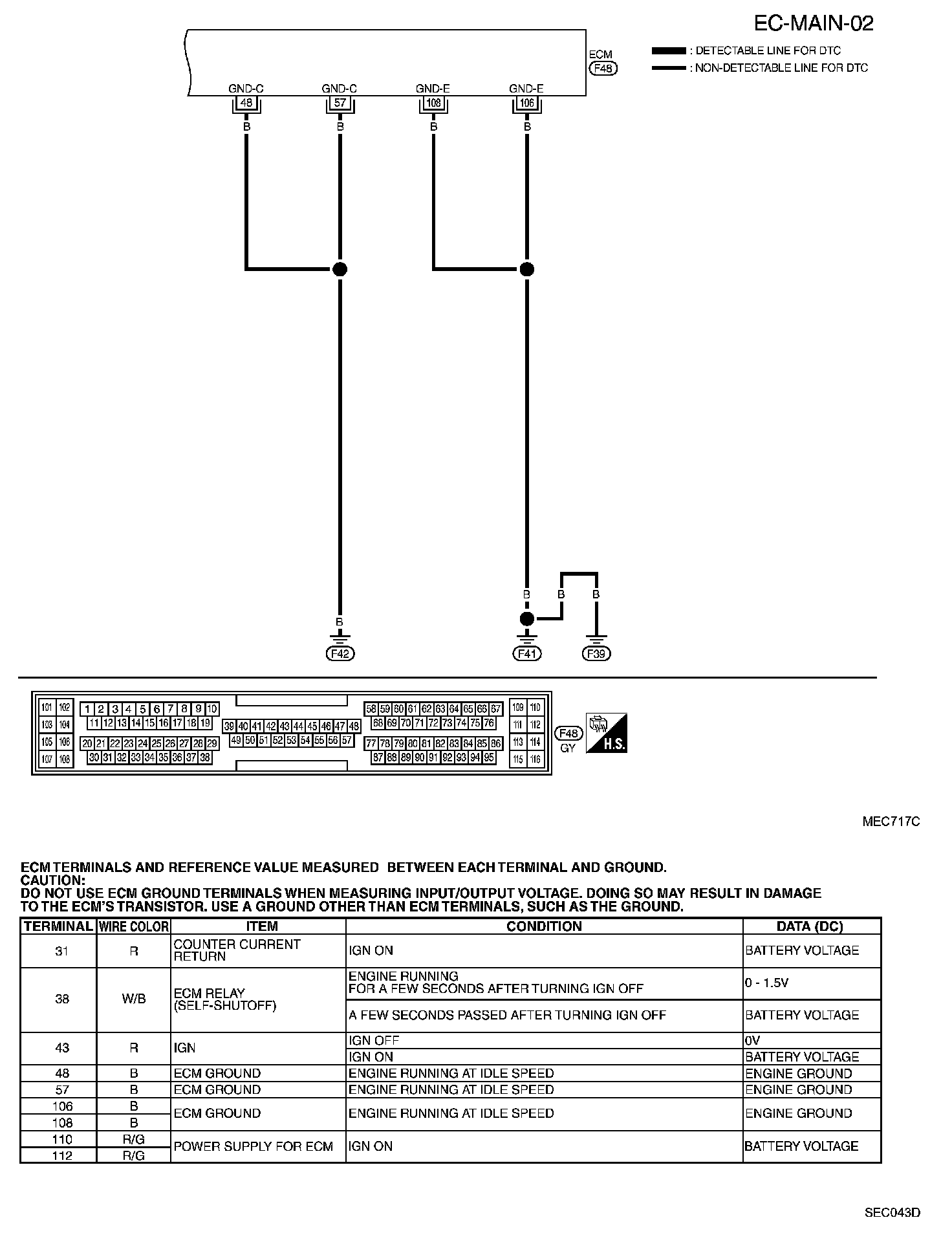

EC-MAIN-02 (Main Power Supply And Ground Circuit Check):

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
