ABS/TCS Control Unit Circuit Check

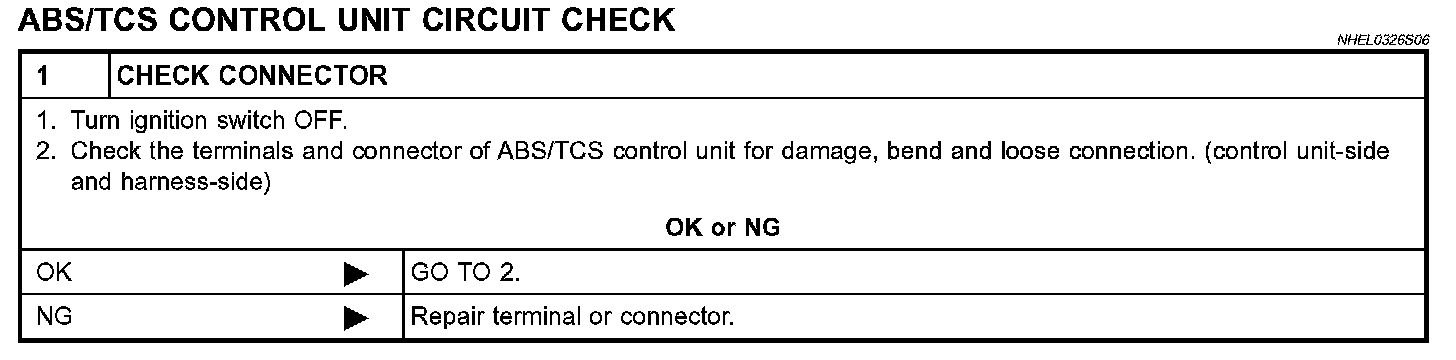

ABS/TCS Control Unit Circuit Check (EL-455):

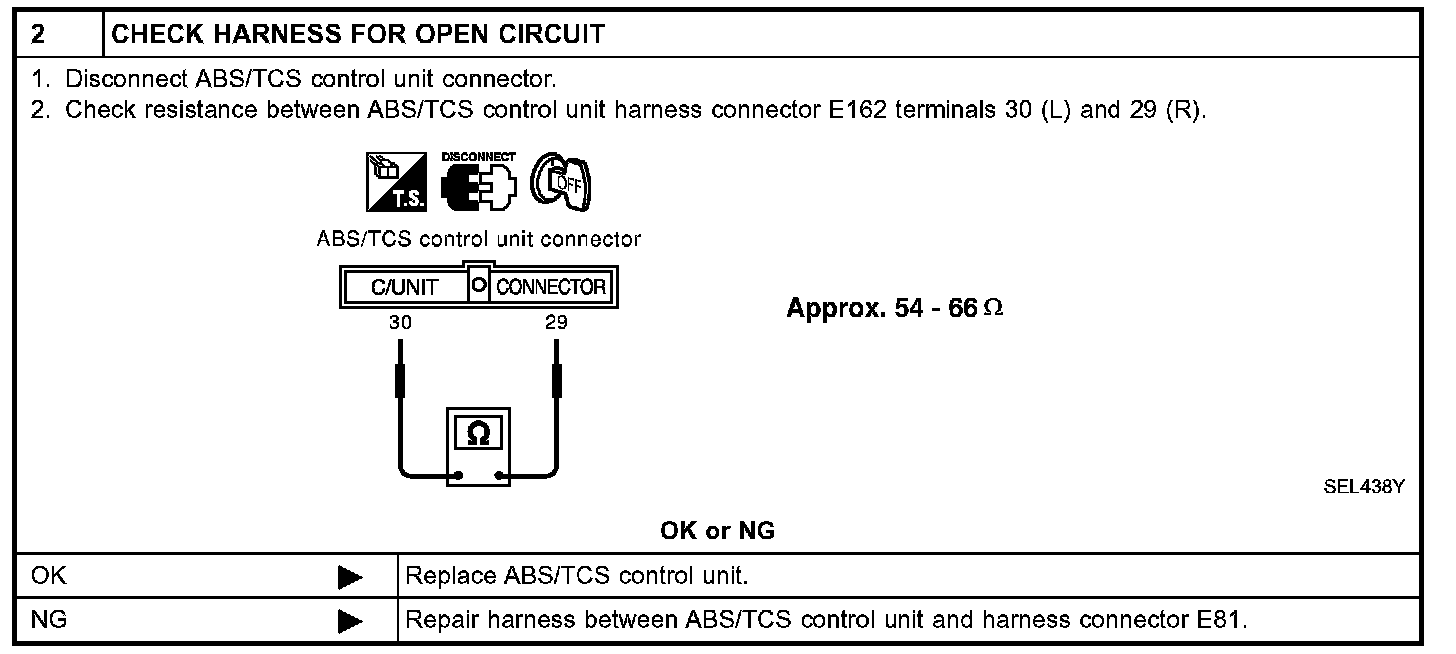

ABS/TCS Control Unit Circuit Check (EL-456):
