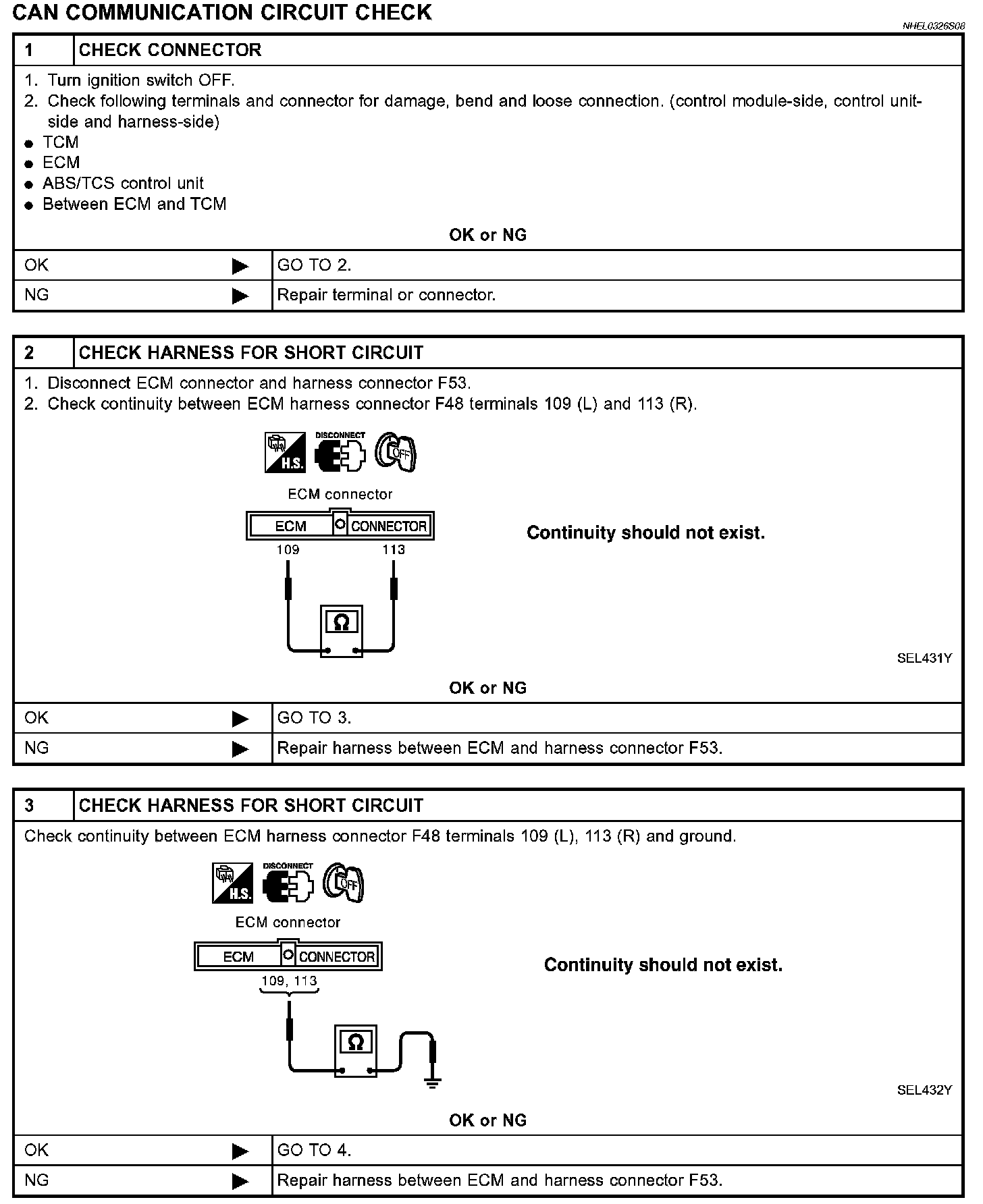

CAN Communication Circuit Check (EL-457):

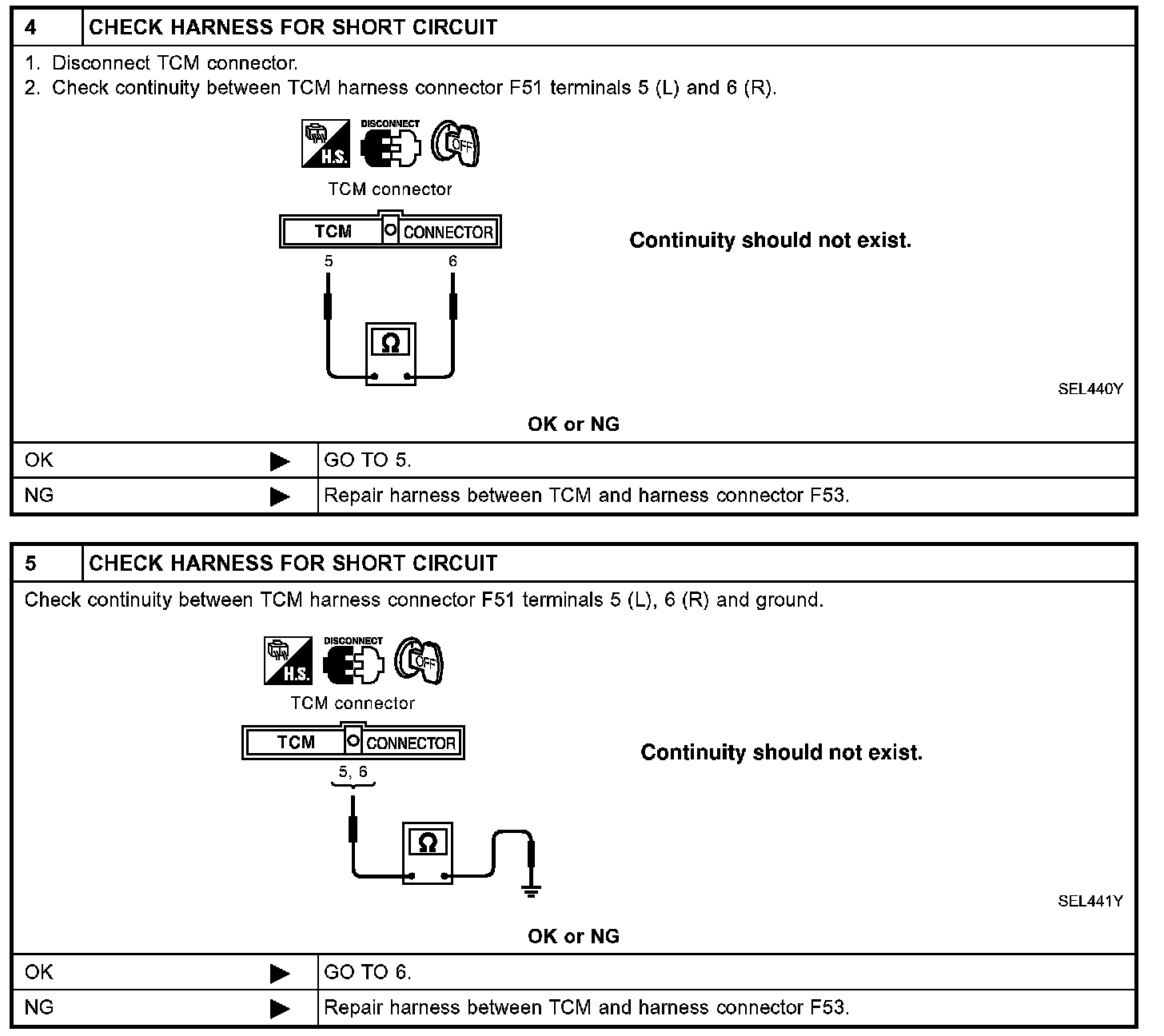

CAN Communication Circuit Check (EL-458):

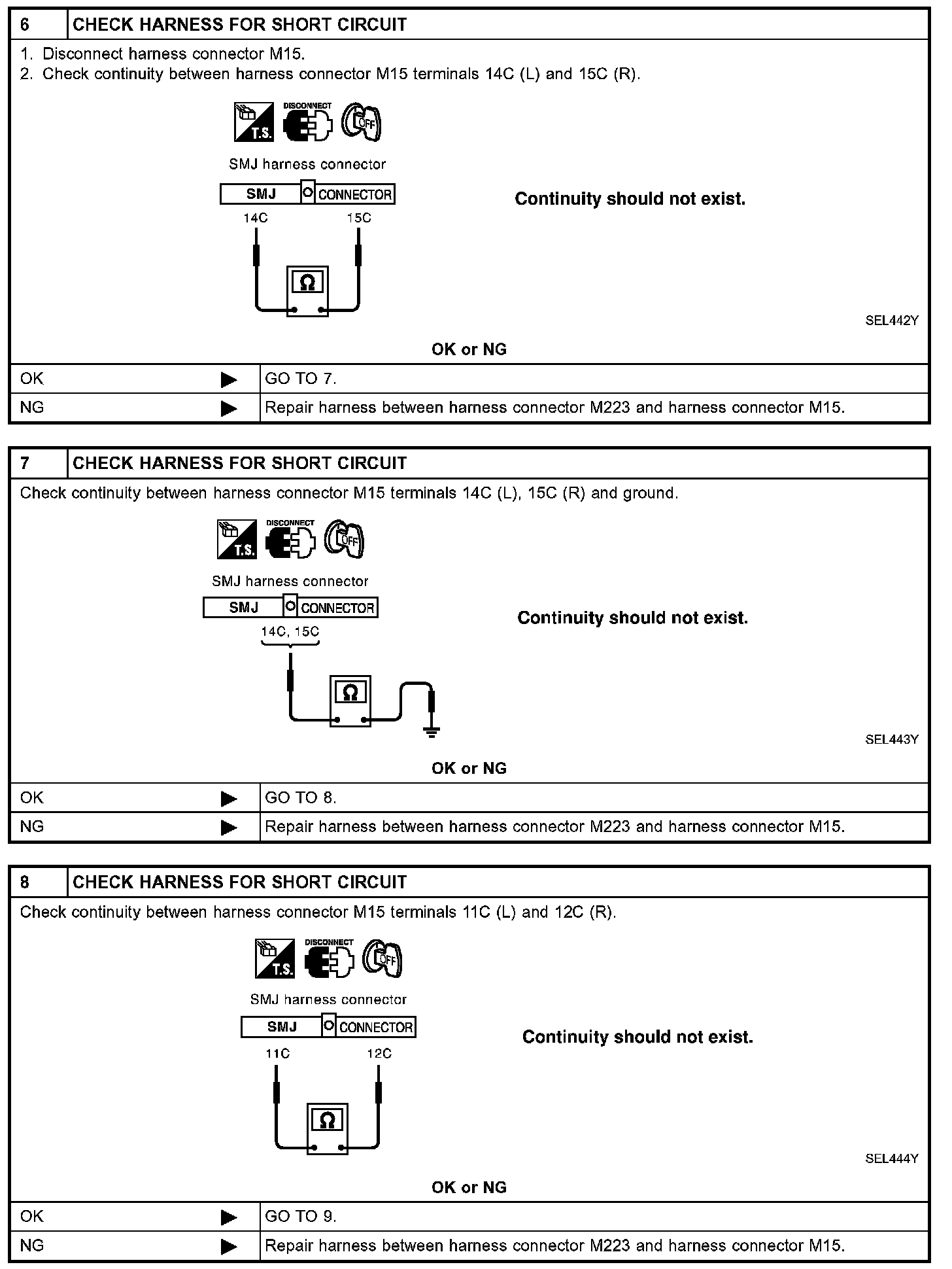

CAN Communication Circuit Check (EL-459):

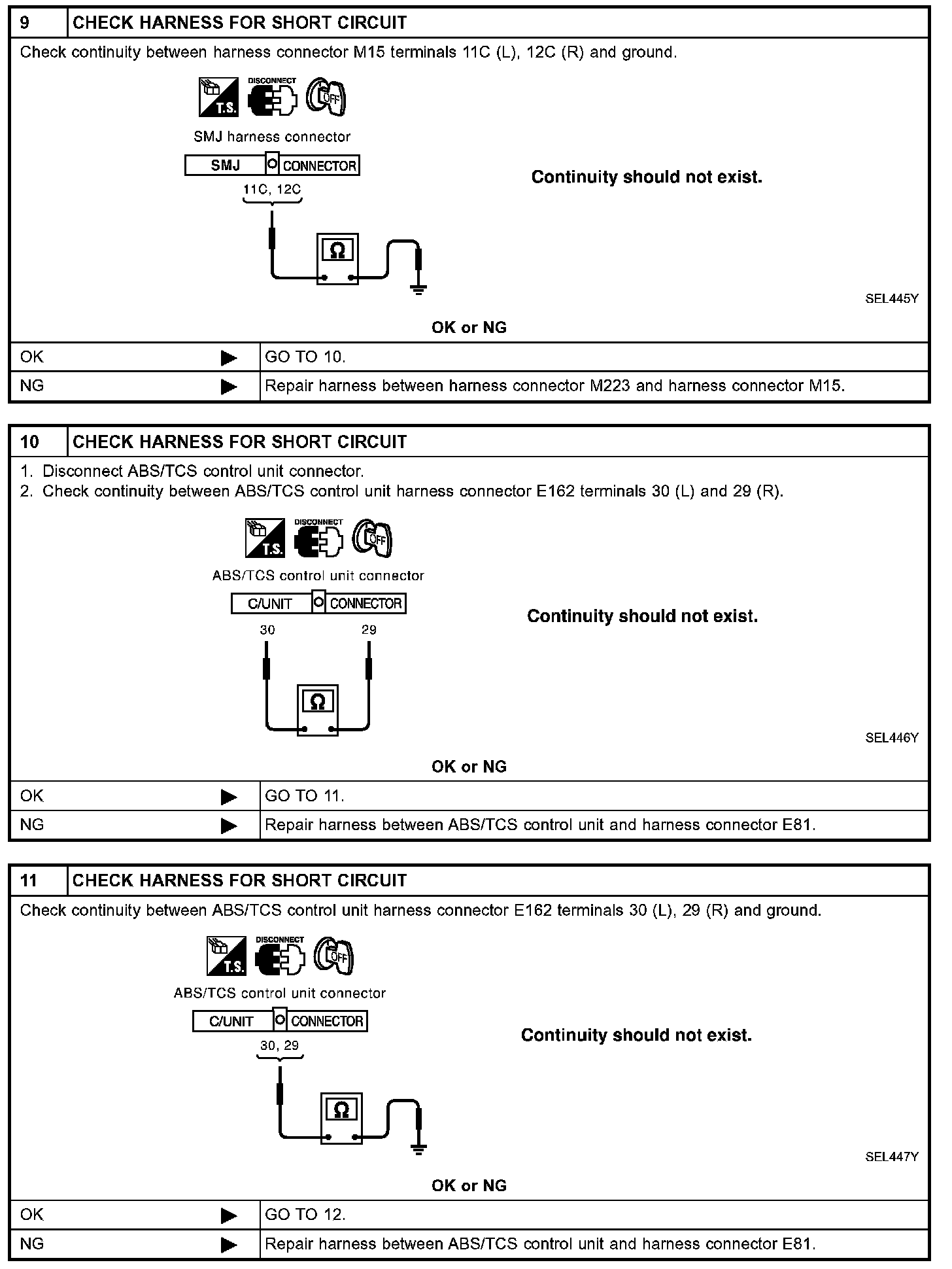

CAN Communication Circuit Check (EL-460):

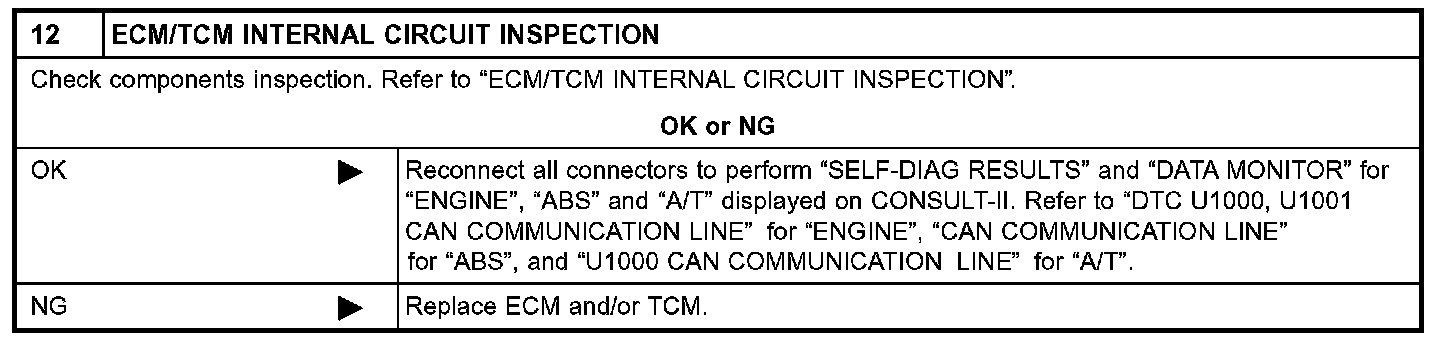

CAN Communication Circuit Check (EL-461):
