Circuit Check VDC/TCS/ABS Control Unit & Steering Angle Sensor

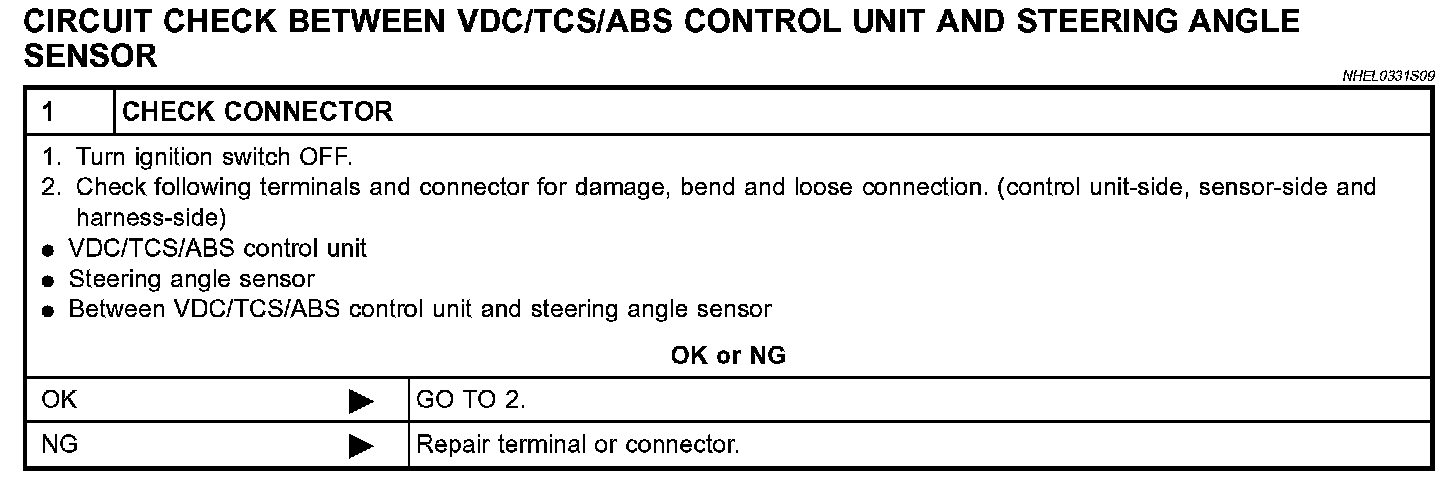

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Angle Sensor (EL-467):

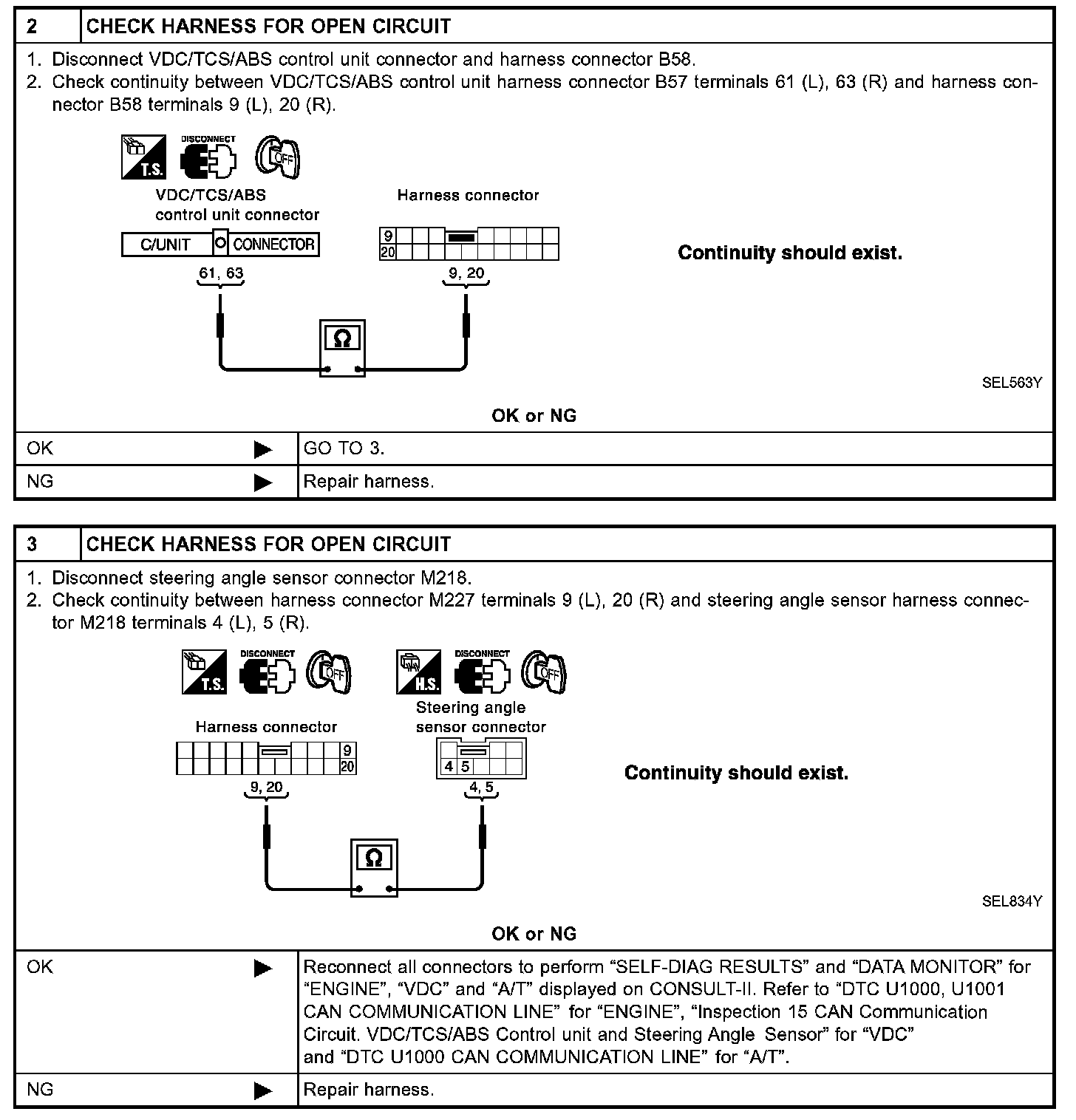

Circuit Check Between VDC/TCS/ABS Control Unit And Steering Angle Sensor (EL-468):
