ECM/TCM Internal Circuit Inspection

ECM/TCM Internal Circuit Inspection

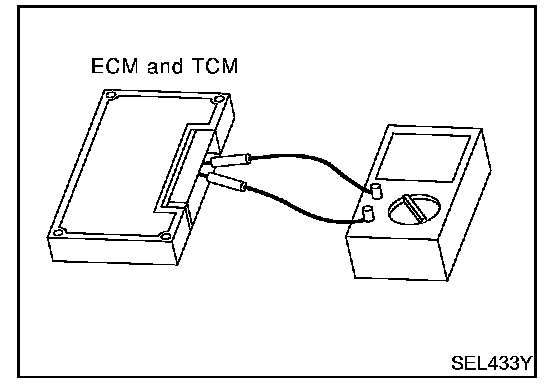

- Remove ECM and TCM from vehicle.

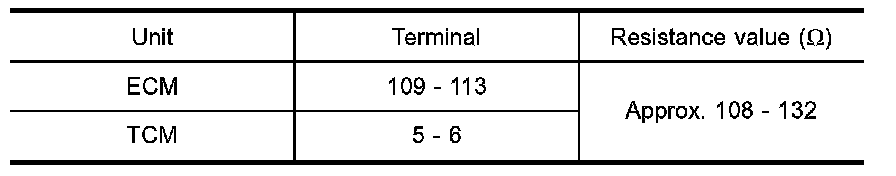

- Check resistance between ECM terminals 109 and 113.
- Check resistance between TCM terminals 5 and 6.
