Ignition Timing: Testing and Inspection
How to Check Ignition TimingAny of following two methods may be used.
-
Method A
a.

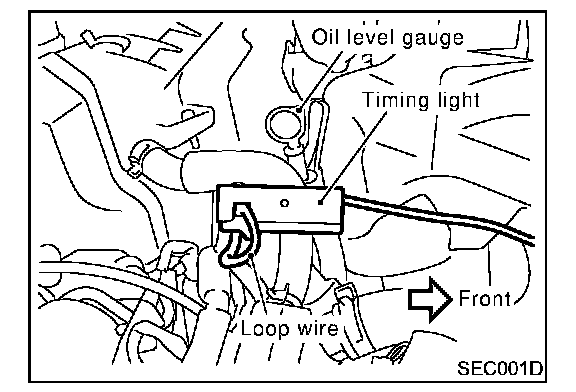

Attach timing light to loop wire as shown.
b.
Check
ignition timing.
-
Method B
a.
Attach timing light to No. 1 ignition coil harness as shown.
b.
Check
ignition timing.
