Remote Keyless Entry System

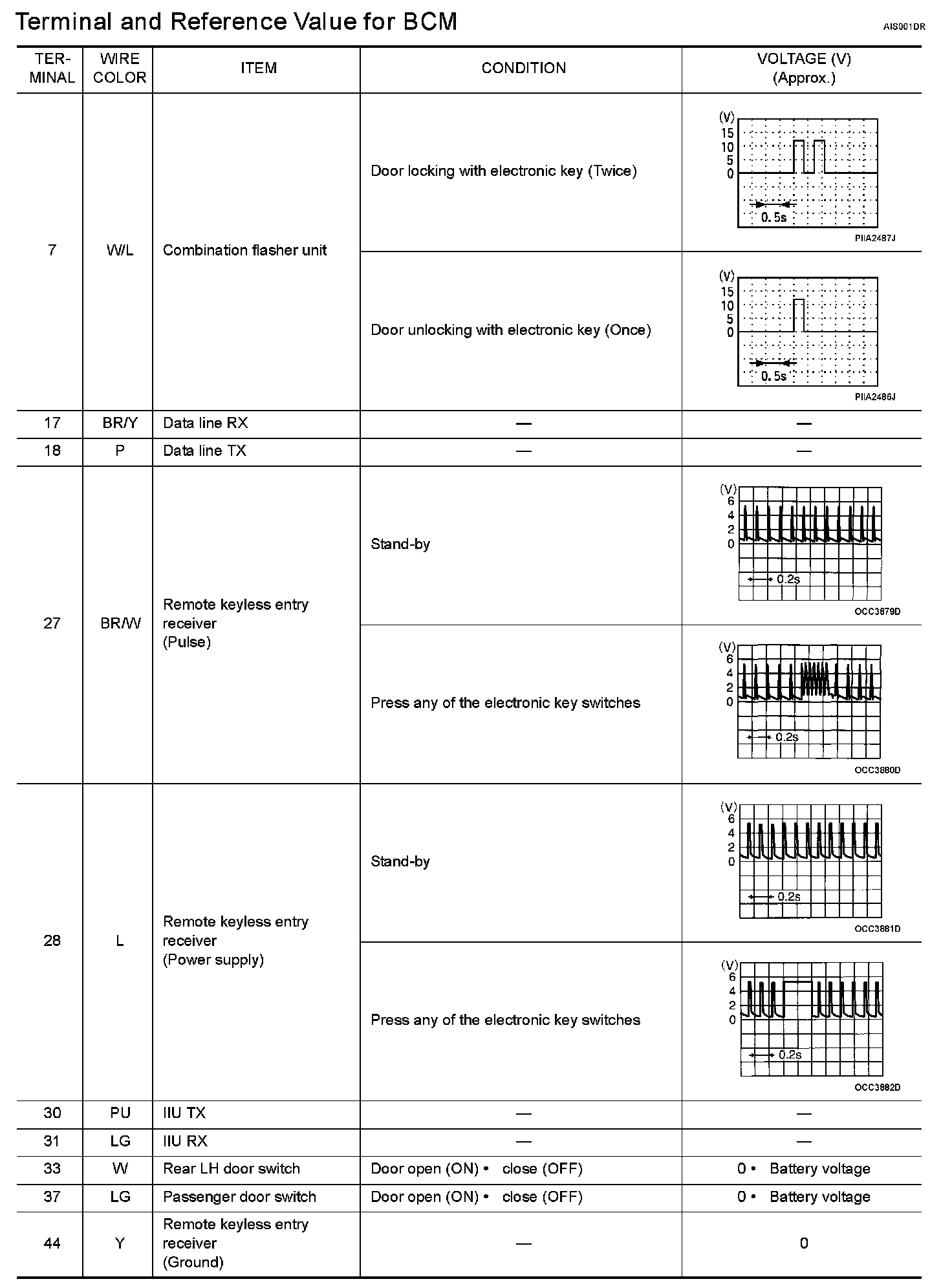

Terminals And Reference Value For BCM Part 1:

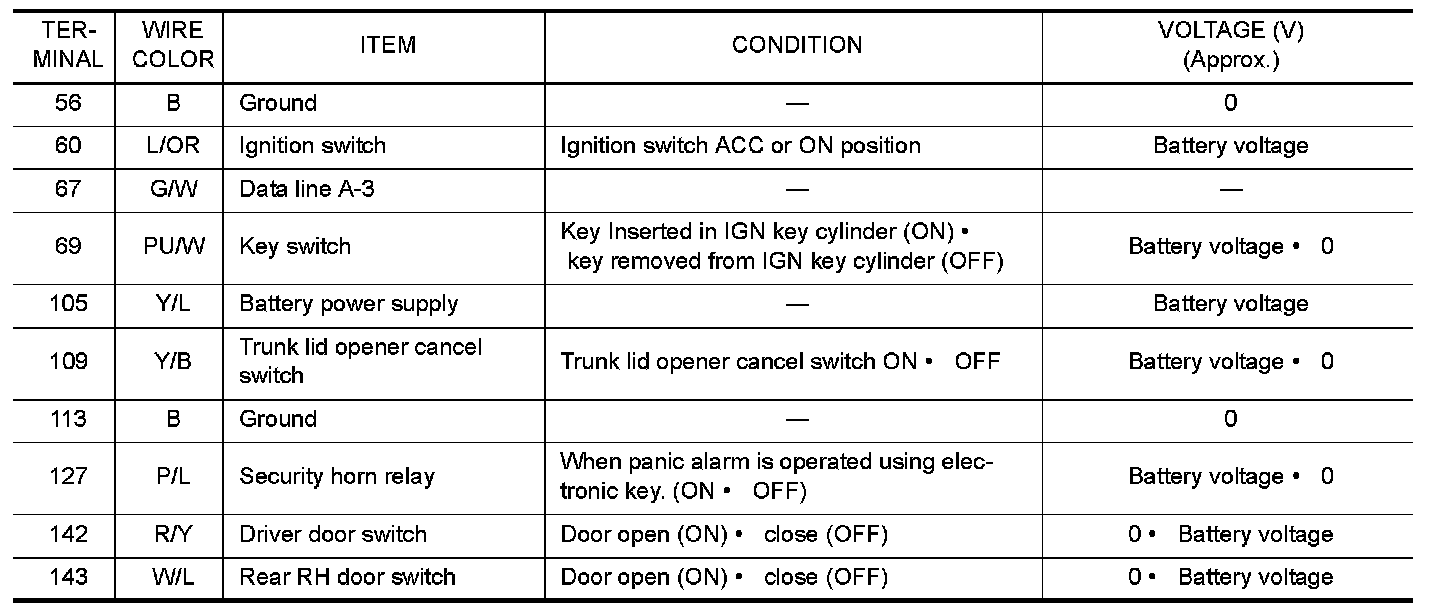

Terminals And Reference Value For BCM Part 2:





Part 1:



Part 2:
