Symptom Chart

Trouble Diagnosis Symptom Chart:

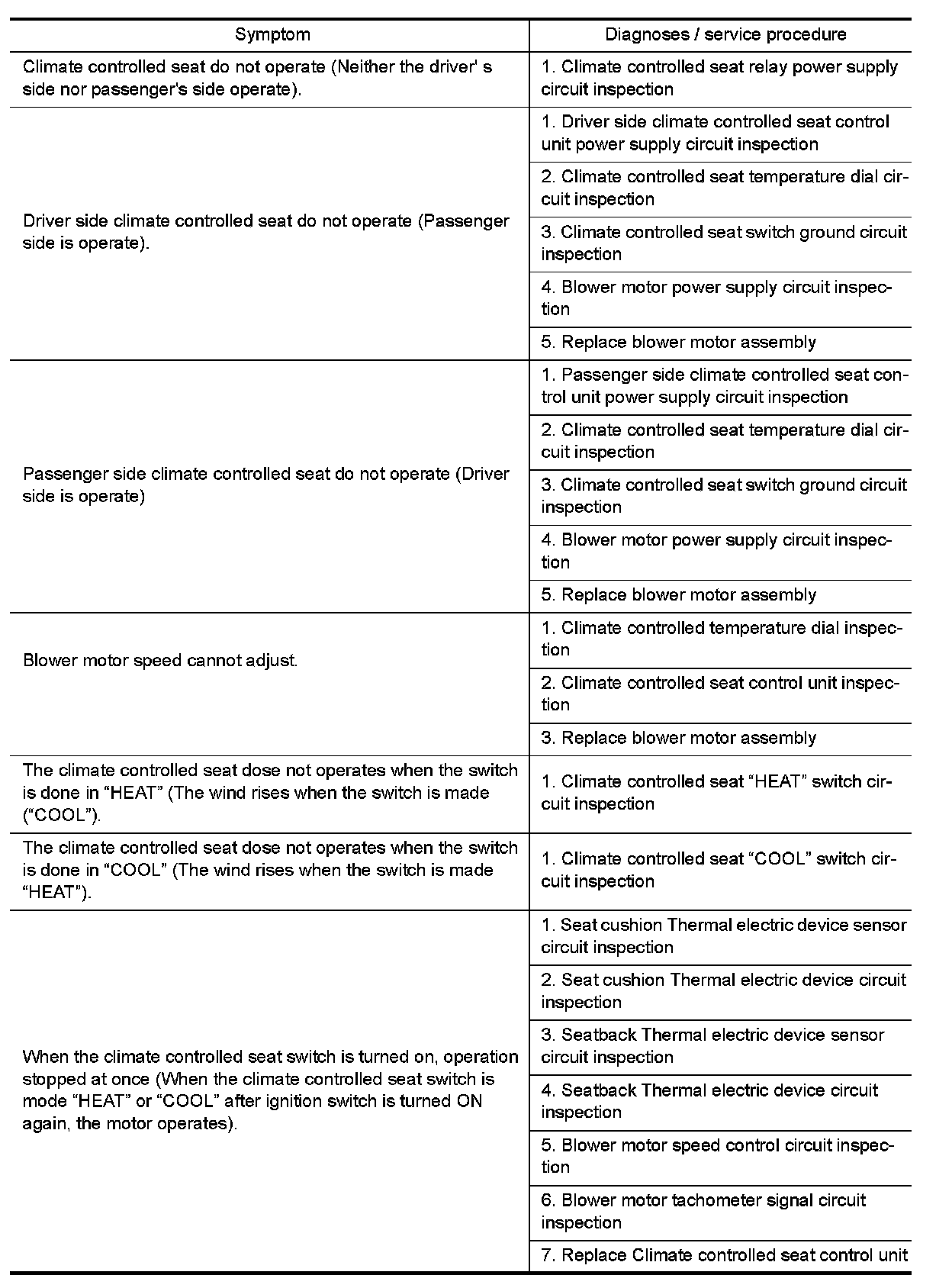

Trouble Diagnosis Symptom Chart
- Check that other systems using the signal of the following systems operate normally.

NOTE:
- The climate controlled seat blower keep low speed for approximately 60 seconds after turning the switch or the climate controlled dial.
- The climate controlled seat system is downed when the temperature sensor set as the seat cushion and the seat back's thermal electric device machine detects 20 °C (68 °F) or more of mutual differences of temperature.
