Oil Pump: Specifications

OIL PUMP
Body to outer rotor radial clearance 0.114 - 0.200 mm (0.0045 - 0.0079 inch)
Inner rotor to outer rotor tip clearance Below 0.18 mm (0.0071 inch)
Body to inner rotor axial clearance 0.030 - 0.070 mm (0.0012 - 0.0028 inch)
Body to outer rotor axial clearance 0.030 - 0.090 mm (0.0012 - 0.0035 inch)
Inner rotor to brazed portion of housing clearance 0.045 - 0.091 mm (0.0018 - 0.0036 inch)

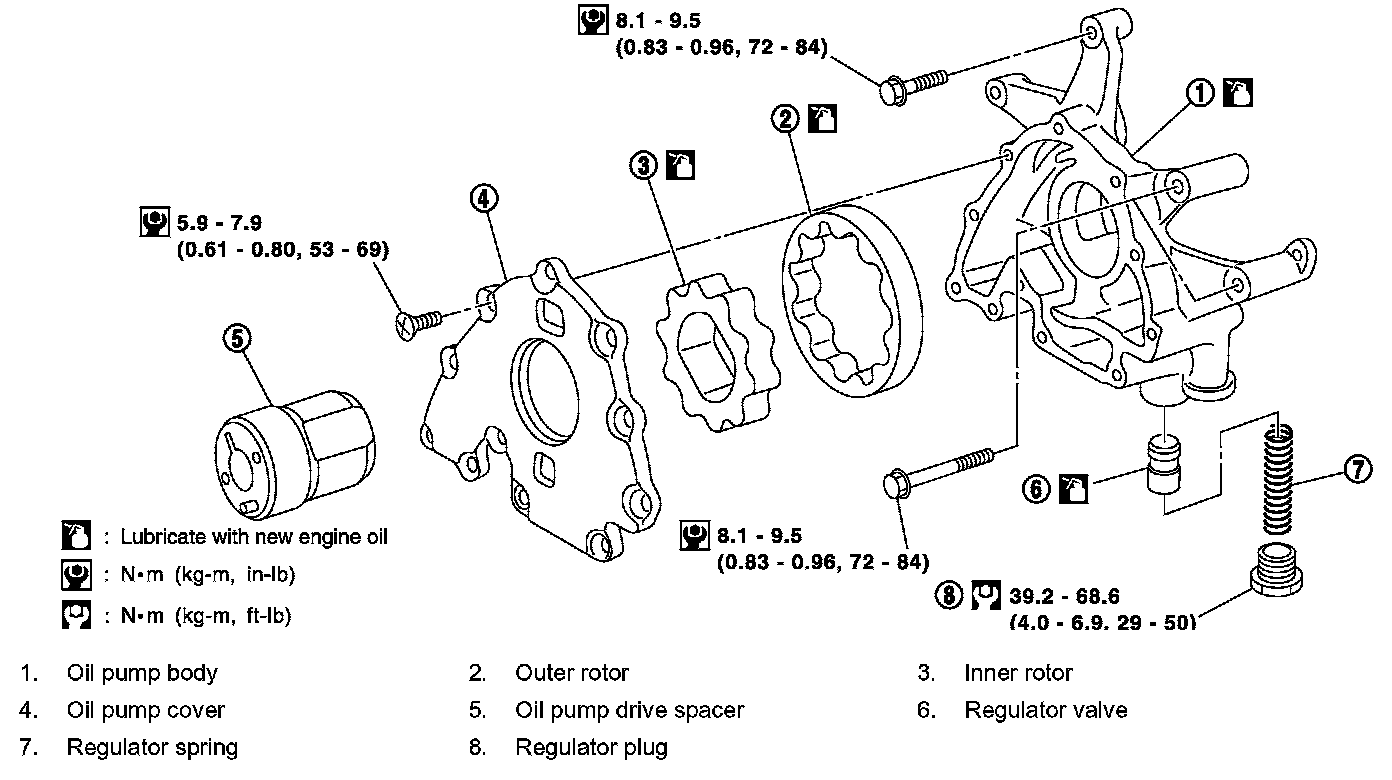

OIL PUMP:

Oil pump body 8.1 - 9.5 Nm (0.83 - 0.96 kg-m, 72 - 84 inch lbs.)
Oil pump cover 5.9 - 7.9 Nm (0.61 - 0.80 kg-m, 53 - 69 inch lbs.)
