Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE SENSOR

REMOVAL
1. Remove instrument lower driver panel. Service and Repair

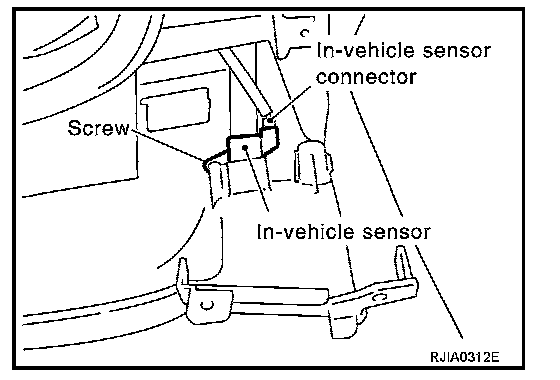

2. Disconnect in-vehicle sensor connector and aspirator duct.
3. Remove in-vehicle sensor.

INSTALLATION
Installation is basically the reverse order of removal.
