Electrical - Trailer Light Wiring Information

Classification:
EL03-044d

Reference:
ITB04-020d

Date:
August 9, 2007

TRAILER LIGHT WIRING

This bulletin has been amended to include 2008 MY vehicles. Please discard all previous copies of ITB04-020.

APPLIED VEHICLES:
2003 - 2004 I35 (CA33)
2003 - 2006 Q45 (F50)
2003 - 2006 G35 Sedan (\/35)
2007 - 2008 G35 Sedan (\/36)
2003 - 2007 G35 Coupe (CV35)
2008 G37 Coupe (CV36)
2003 - 2004 M45 (Y34)
2006 - 2008 M35/M45 (Y50)

SERVICE INFORMATION

NOTE:
^ This bulletin provides information to be shared with all affected customers.

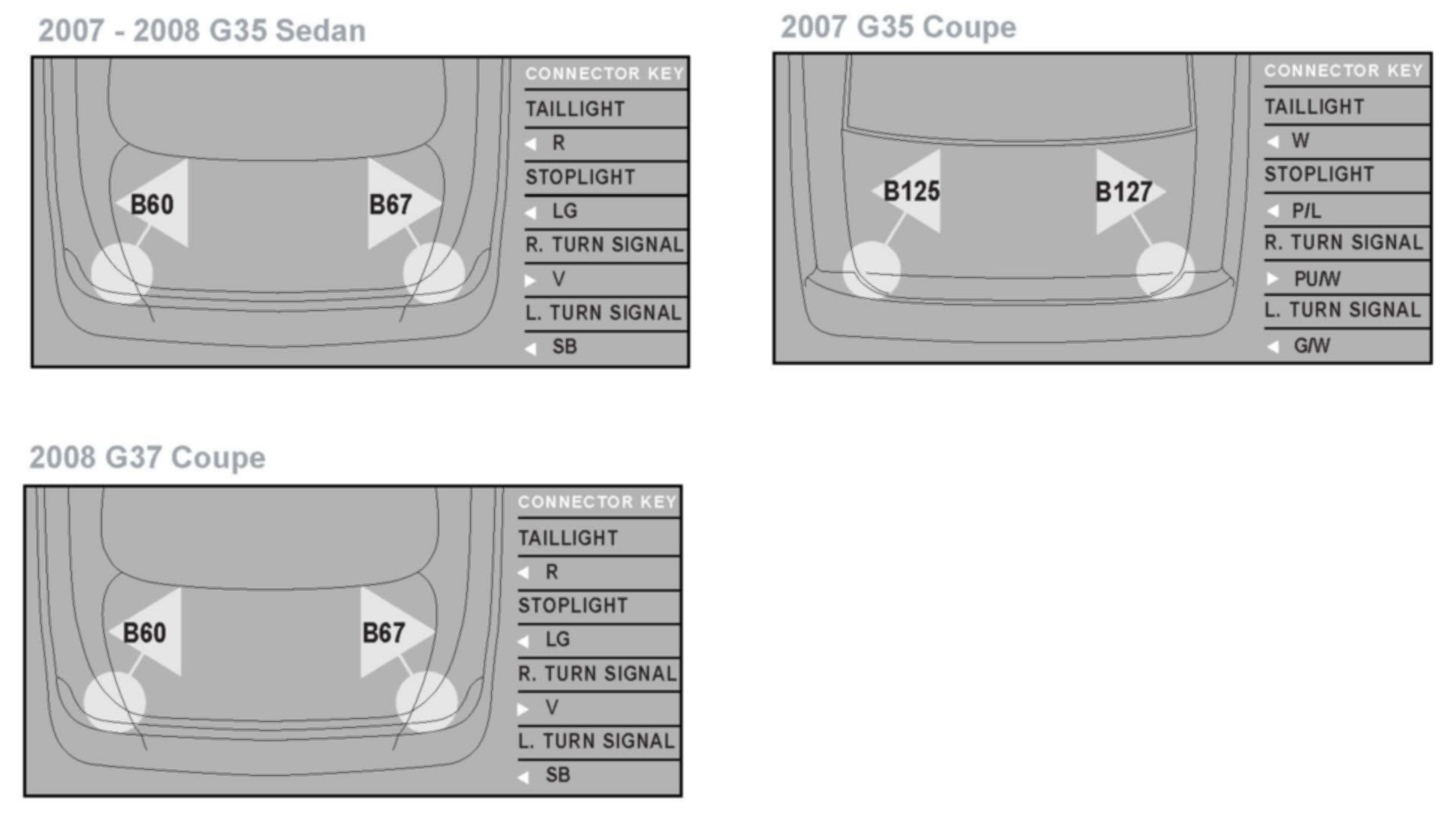

^ This TSB contains the appropriate hookup points for connecting a trailer light wiring harness to the towing vehicle's electrical system.

^ The wiring diagrams contained in this bulletin are for Infiniti vehicles that have trailer towing capability (see the owners manual) but do not have a Genuine Infiniti accessory towing kit (with wiring) available.

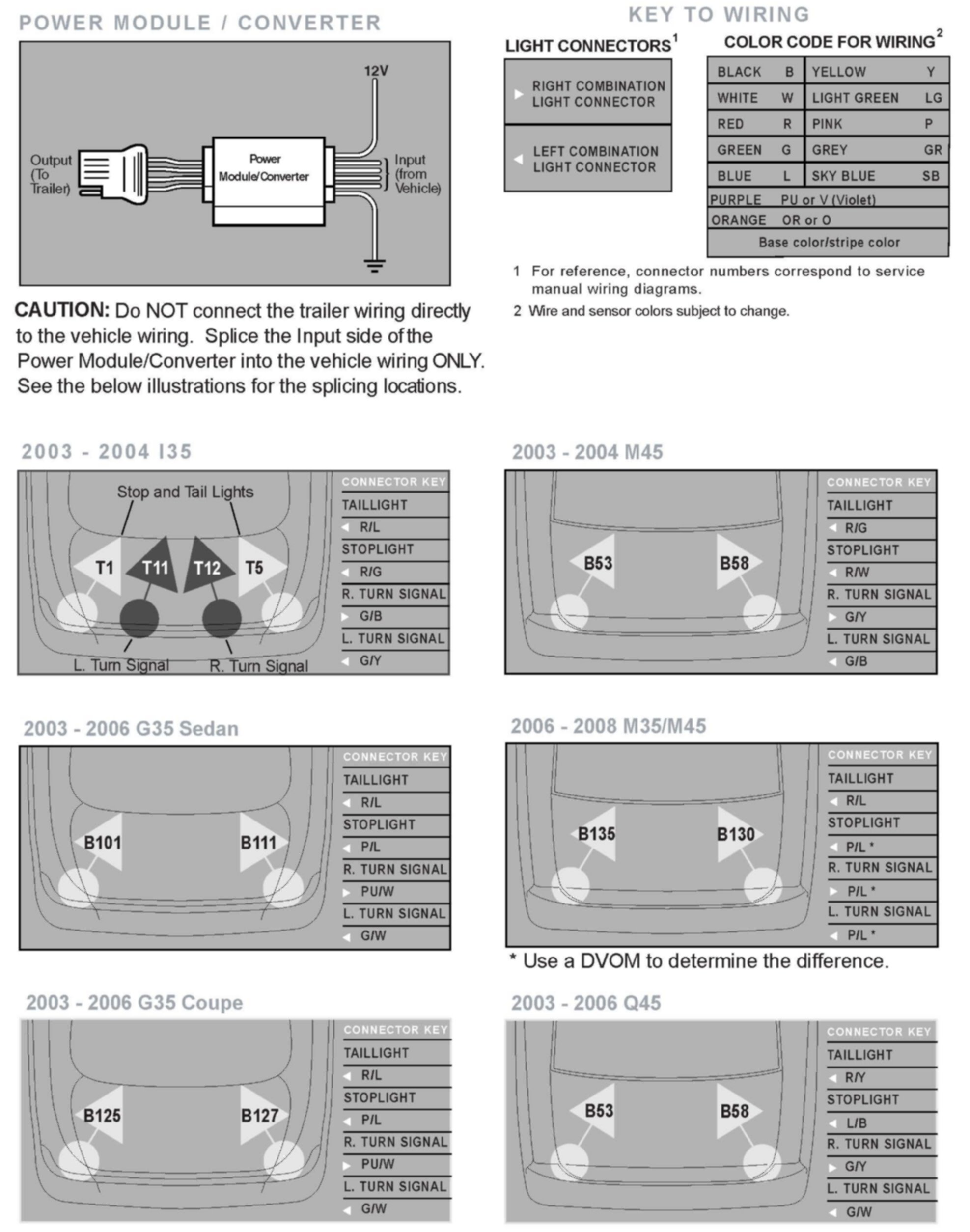

^ When splicing into the vehicle electrical system a power-type module/converter must be used to provide power for all trailer lighting. A power-type module/converter uses the vehicle battery as a direct power source for all trailer lights while using the vehicle tail lamp stoplight and turn signal circuits only as a signal source. (See the illustration.) The module/converter must draw no more than 5 milliamps from the vehicle turn signal circuits and no more than 15 milliamps from the stop and tail lamp circuits.

CAUTION:
Using a module/converter that exceeds these power requirements listed above may negatively affect the performance and function of the vehicle's electrical system.

See a professional trailer dealer or trailer rental agency for installation of the proper equipment.

Customers who inquire about towing should be reminded of the following:

^ Always check for correct operation of the turn signals stoplights and taillights every time a trailer is hitched up for towing.

^ The towing capacity for 135 G35 Sedan and Coupe G37 Coupe M35/M45 and Q45 is 1,000 lbs.

For more information customers should be referred to the Owners Manual as well as the Infiniti Towing Guide available online at the website.
