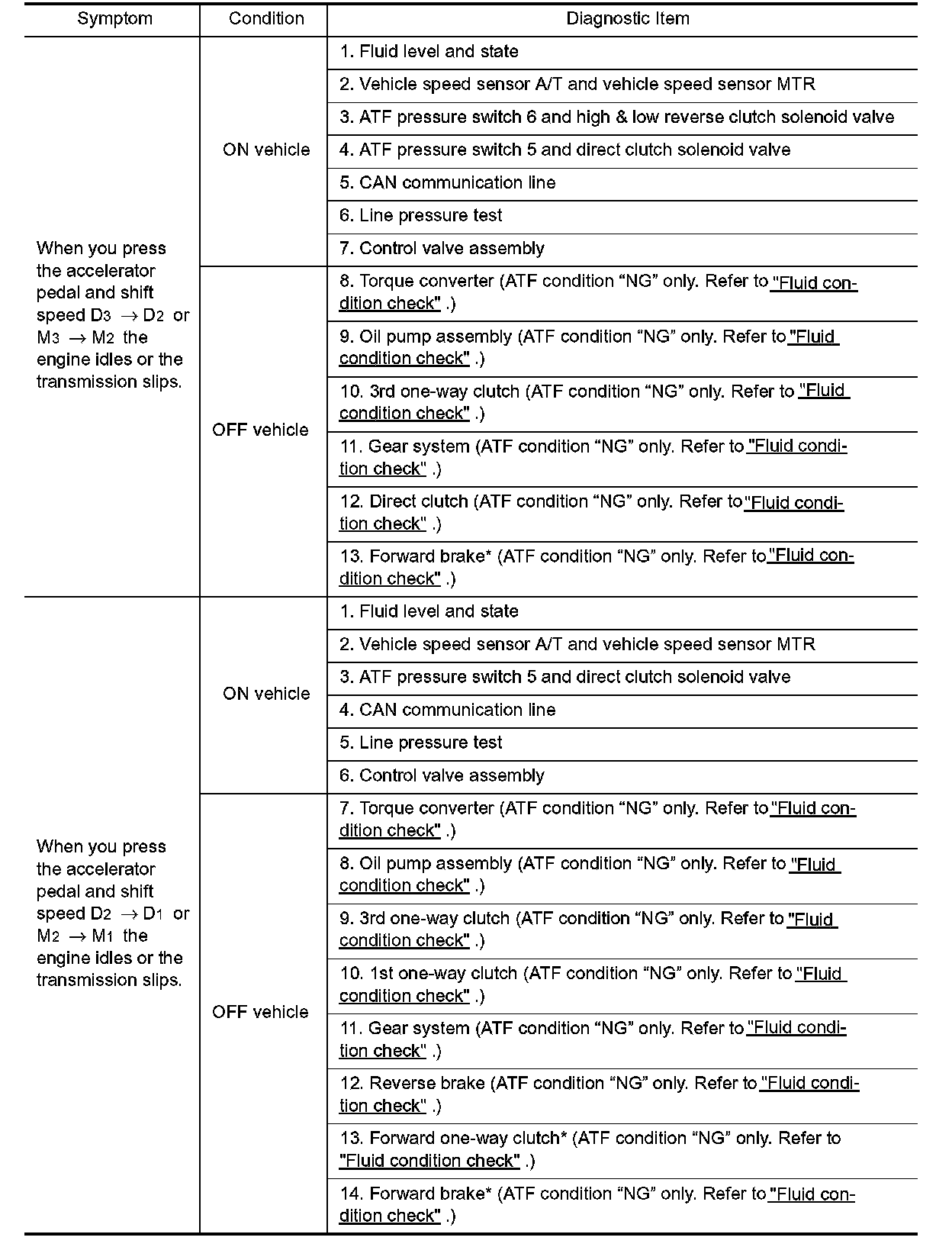

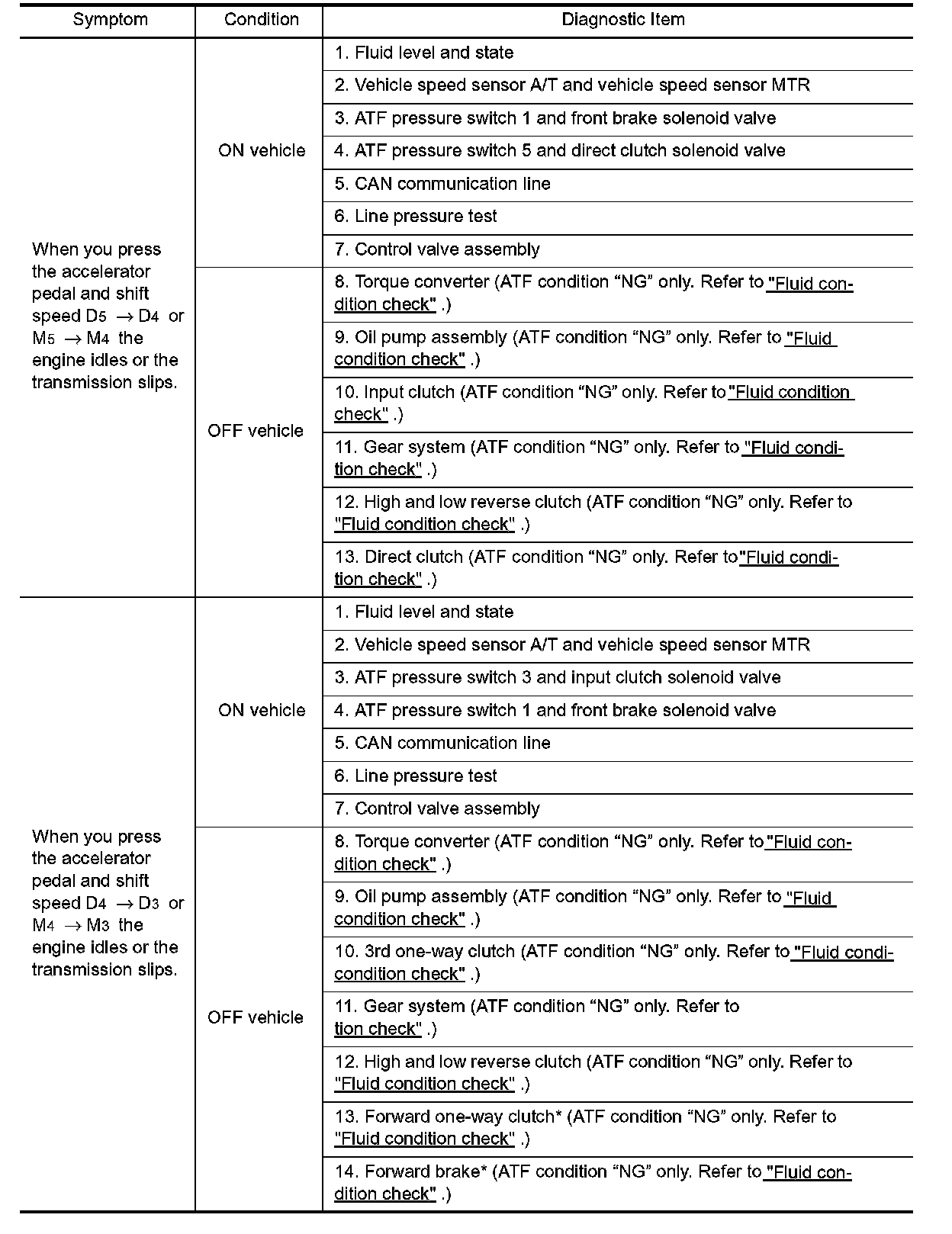

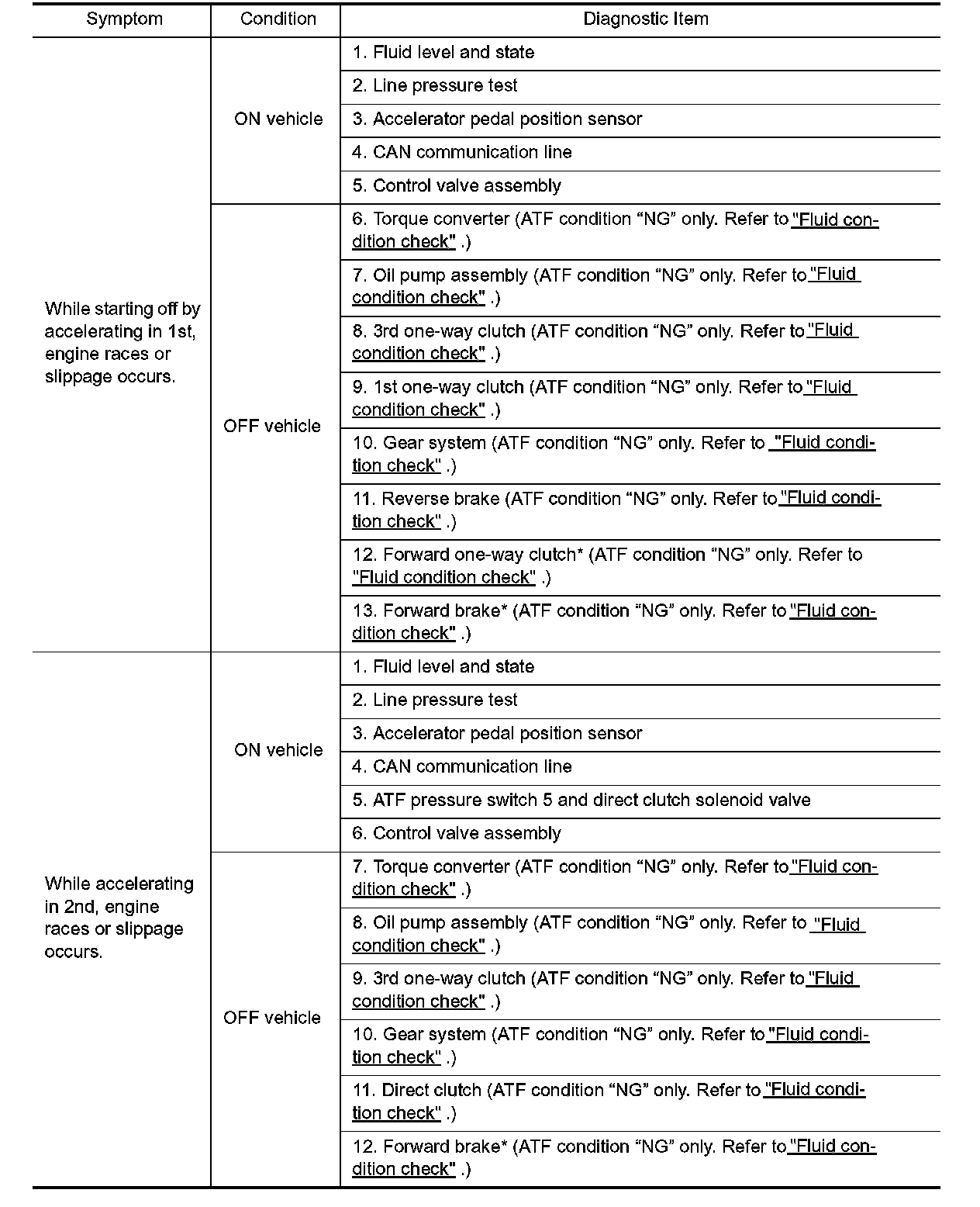

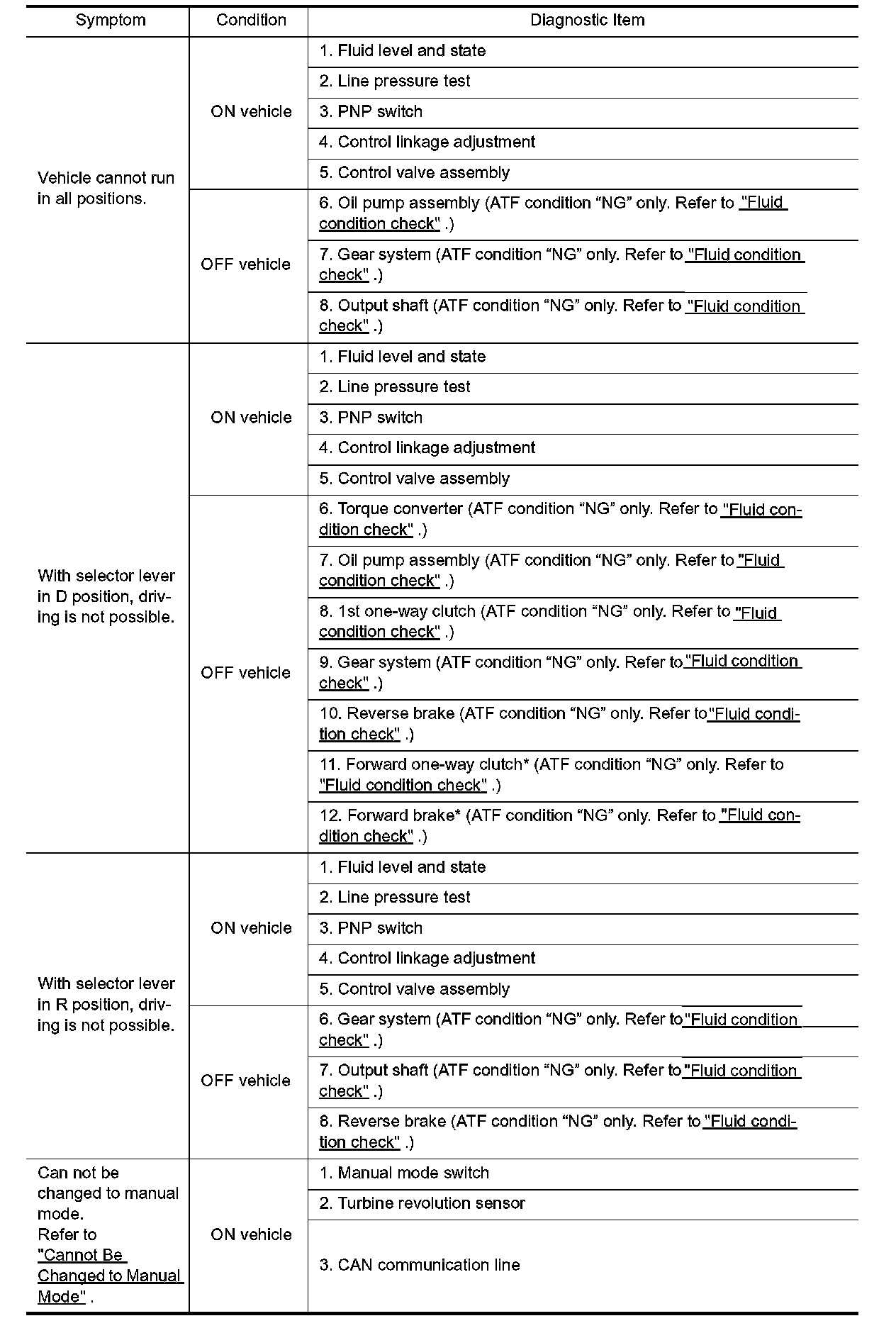

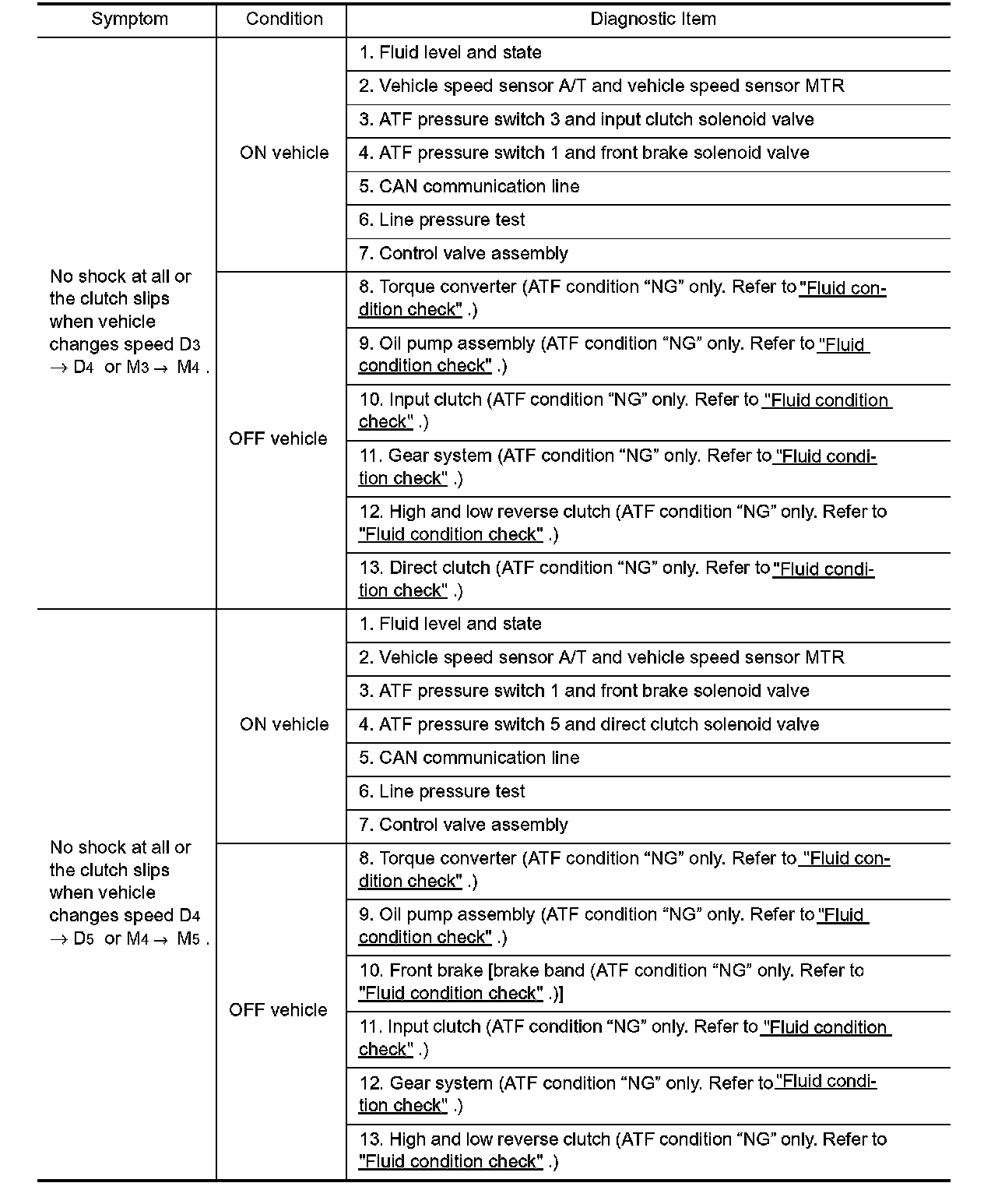

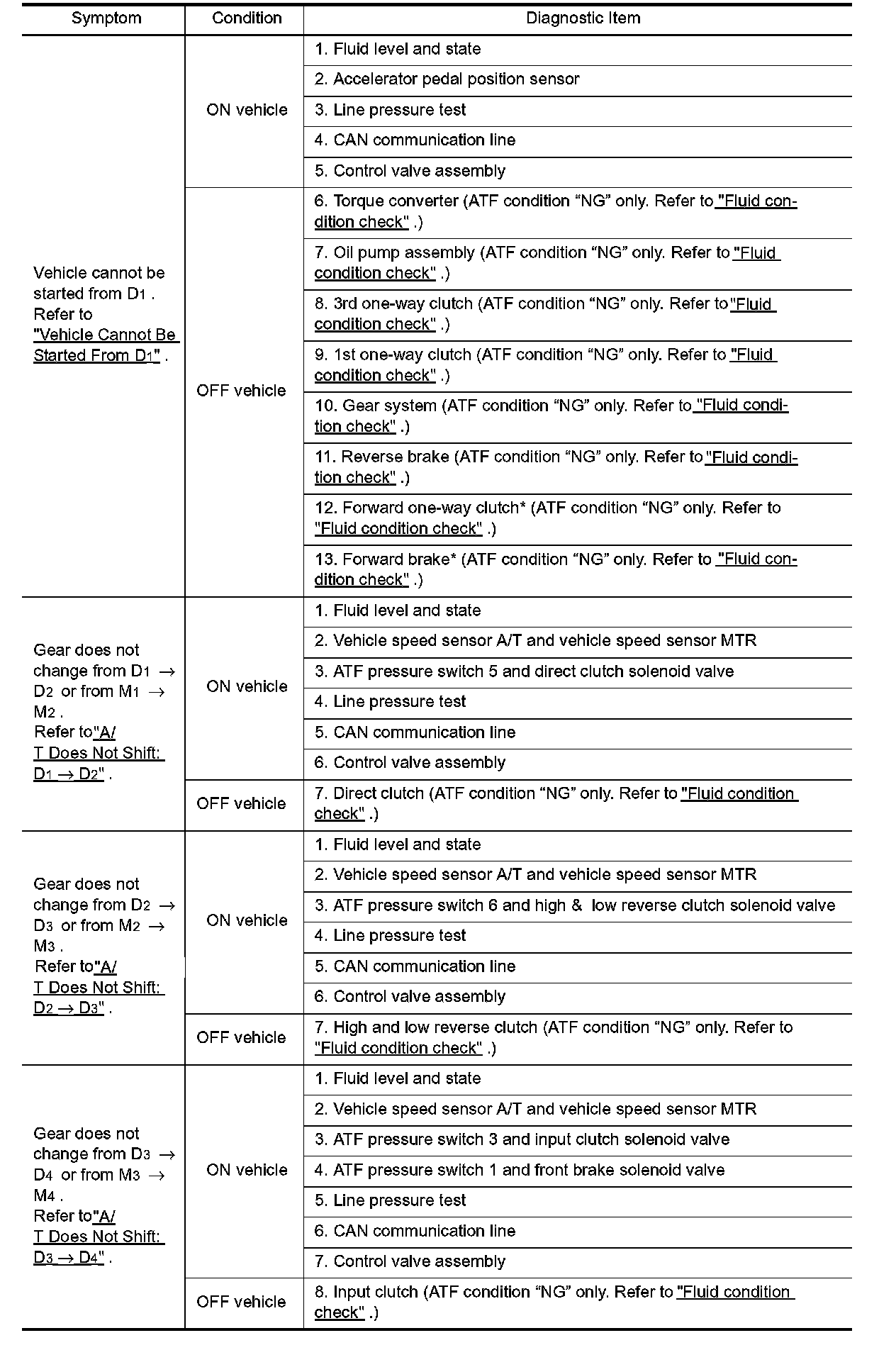

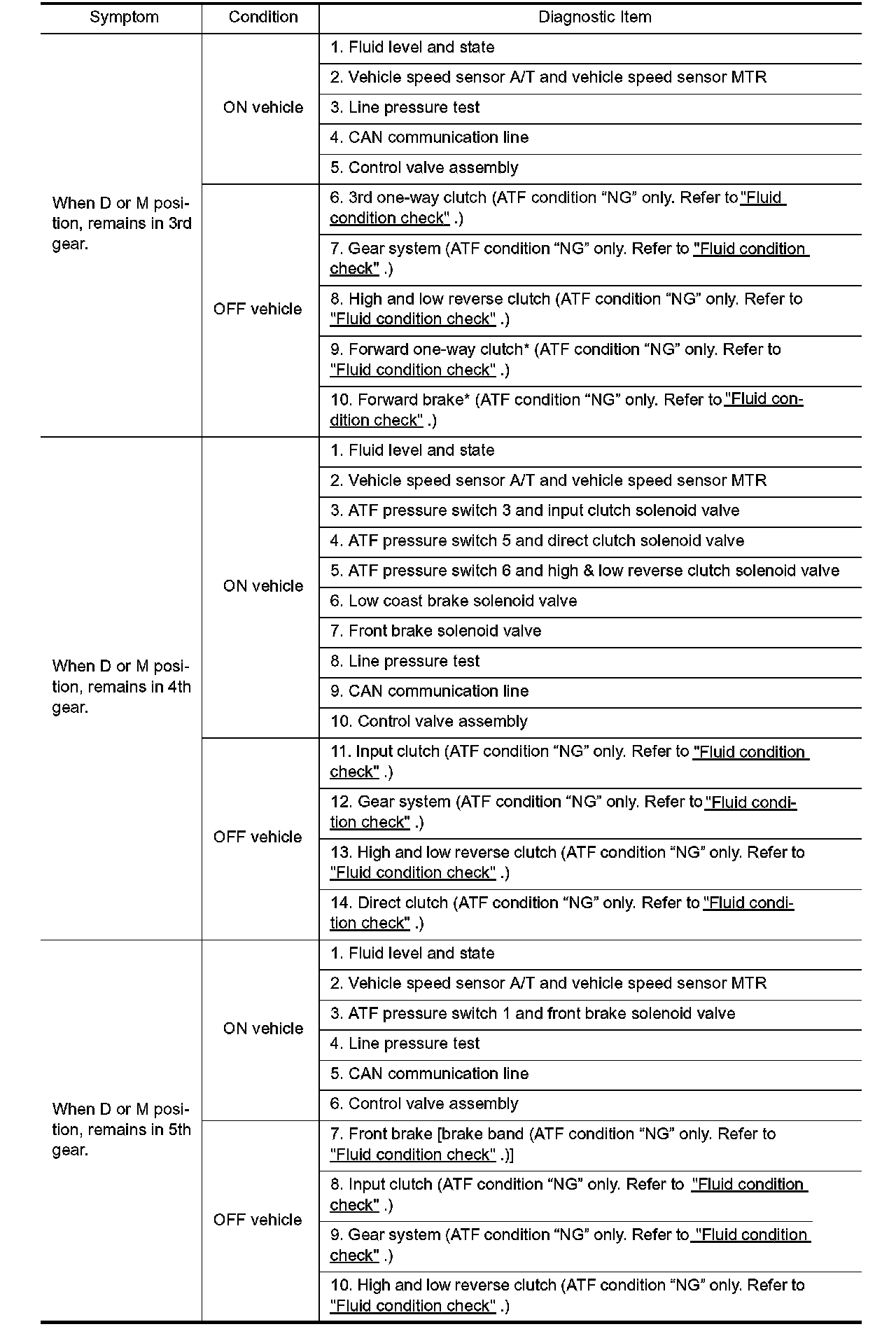

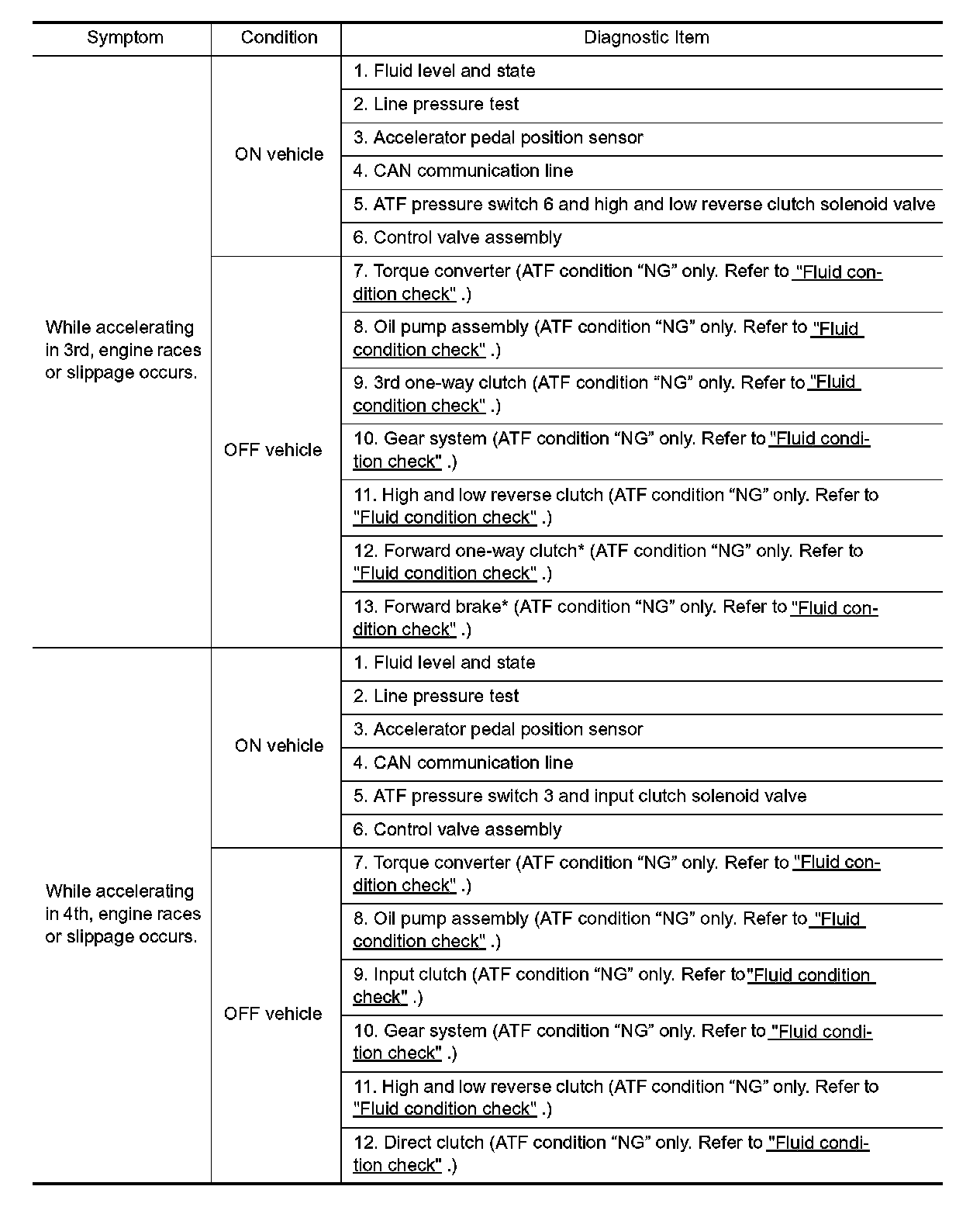

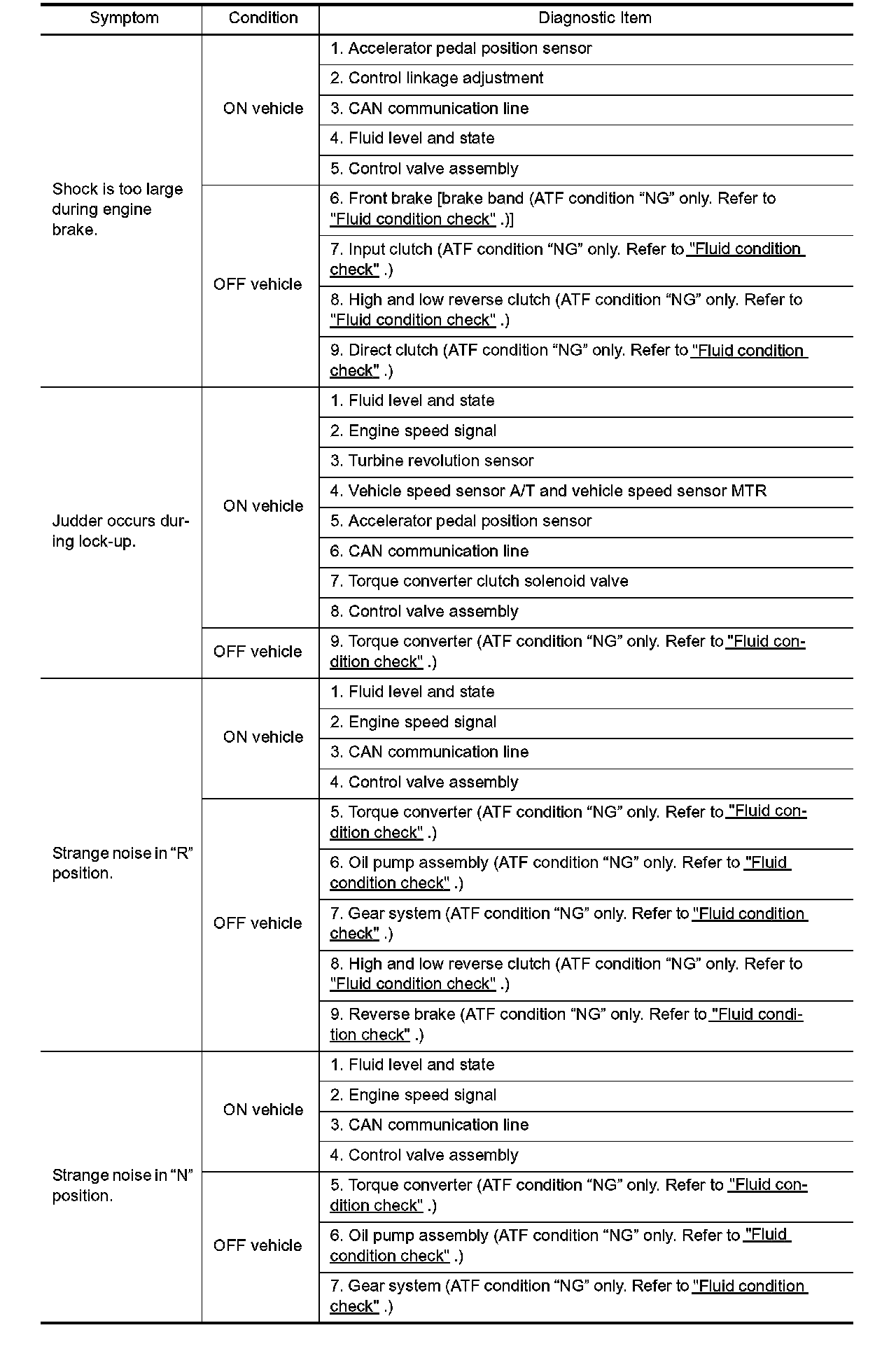

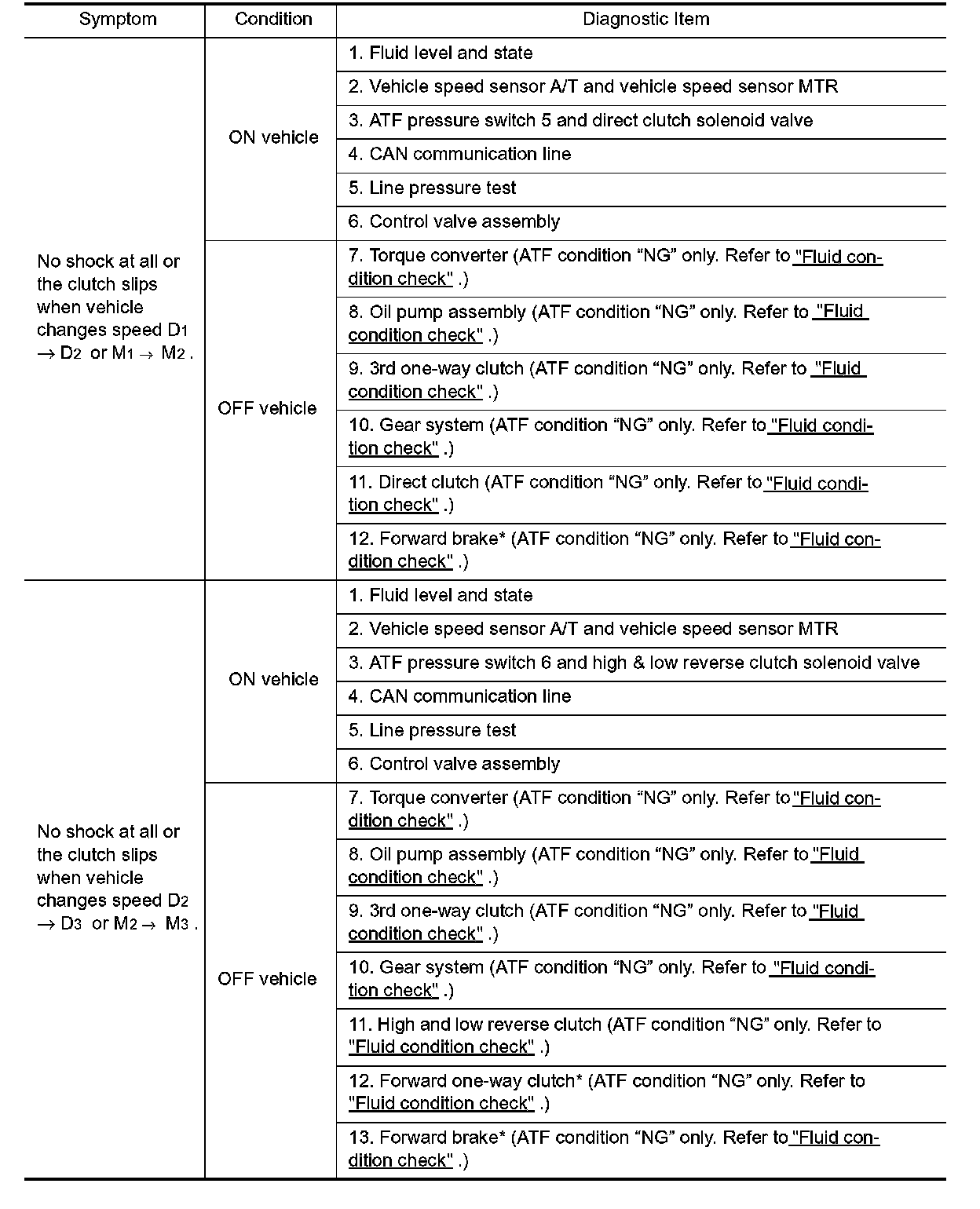

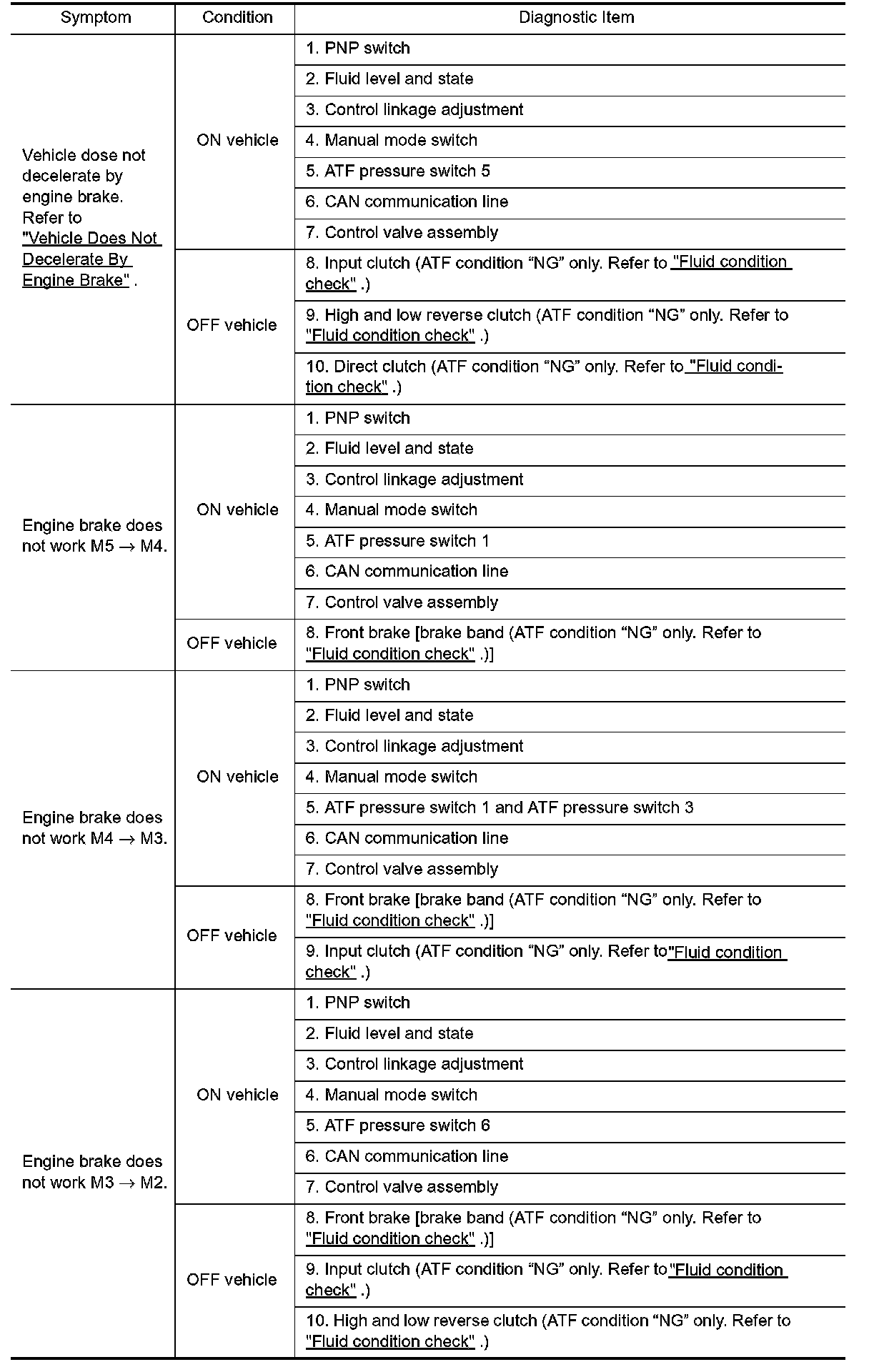

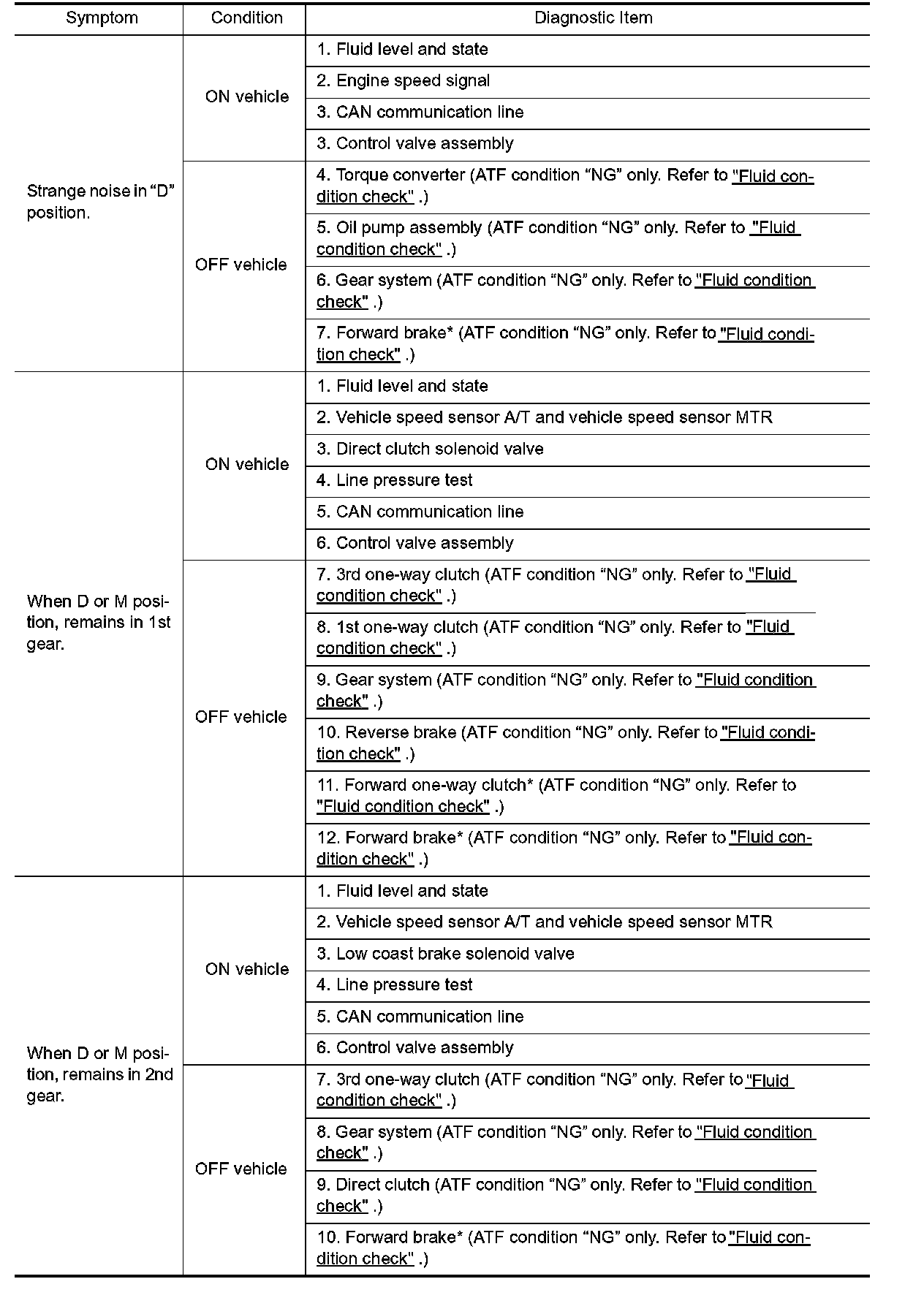

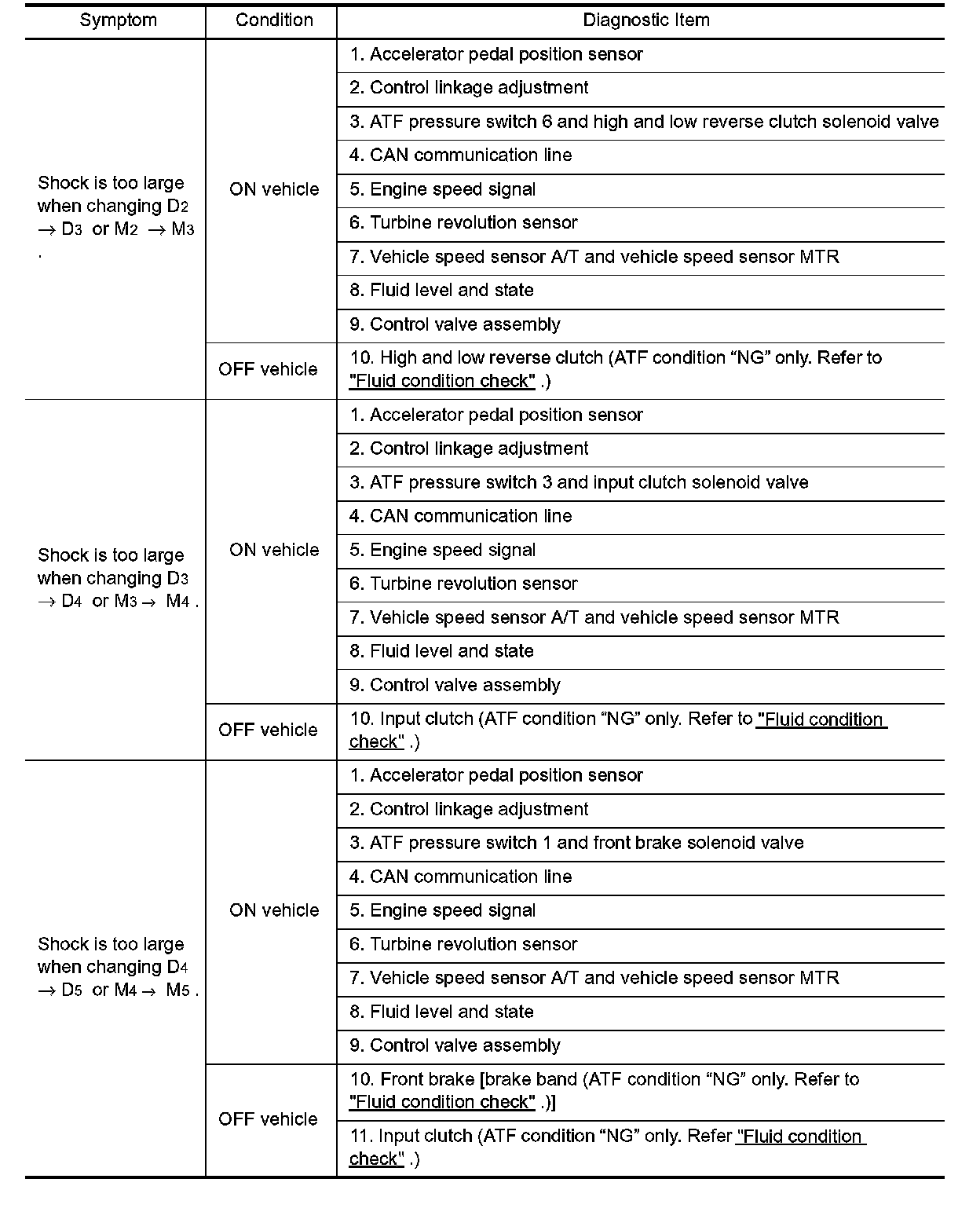

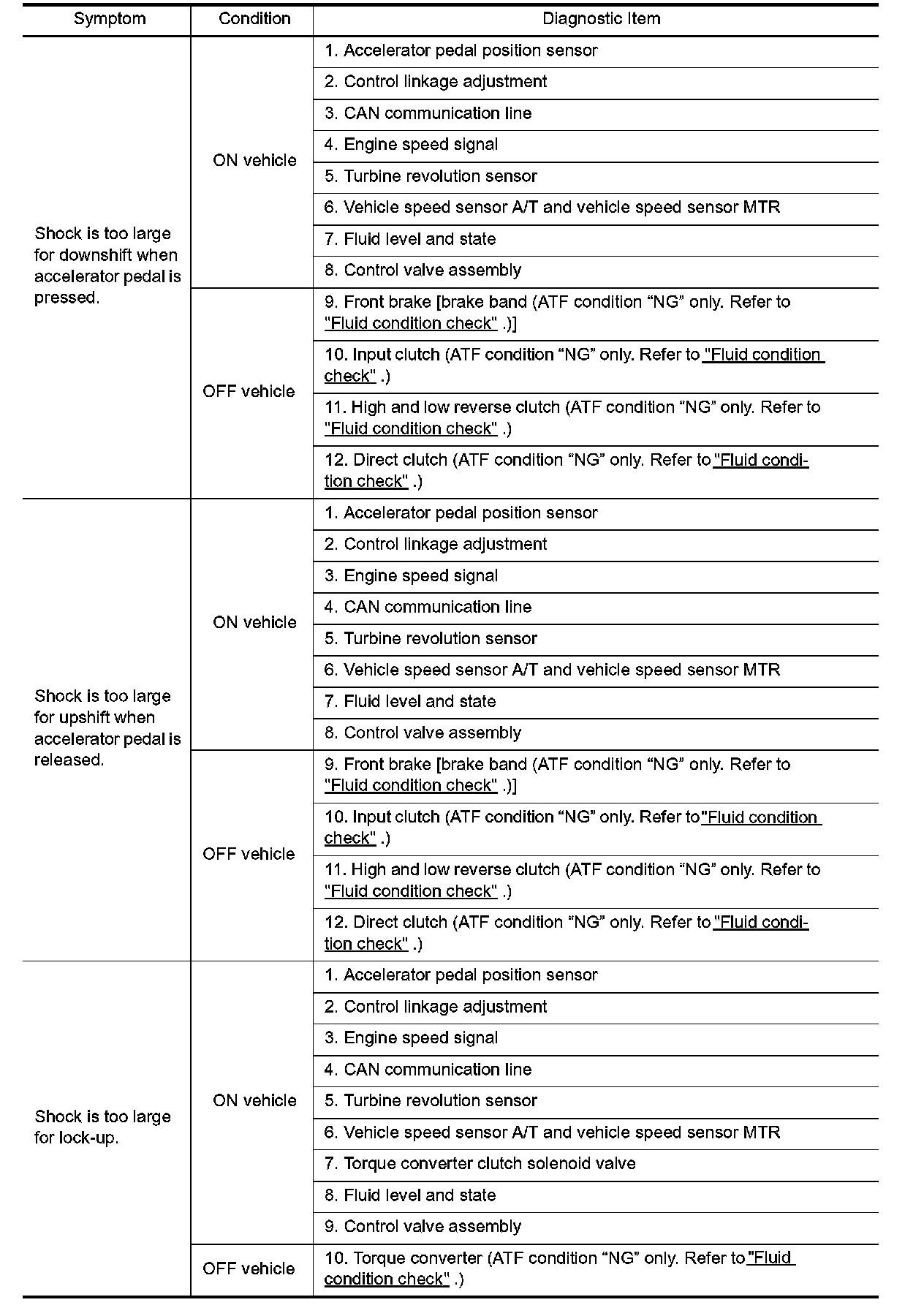

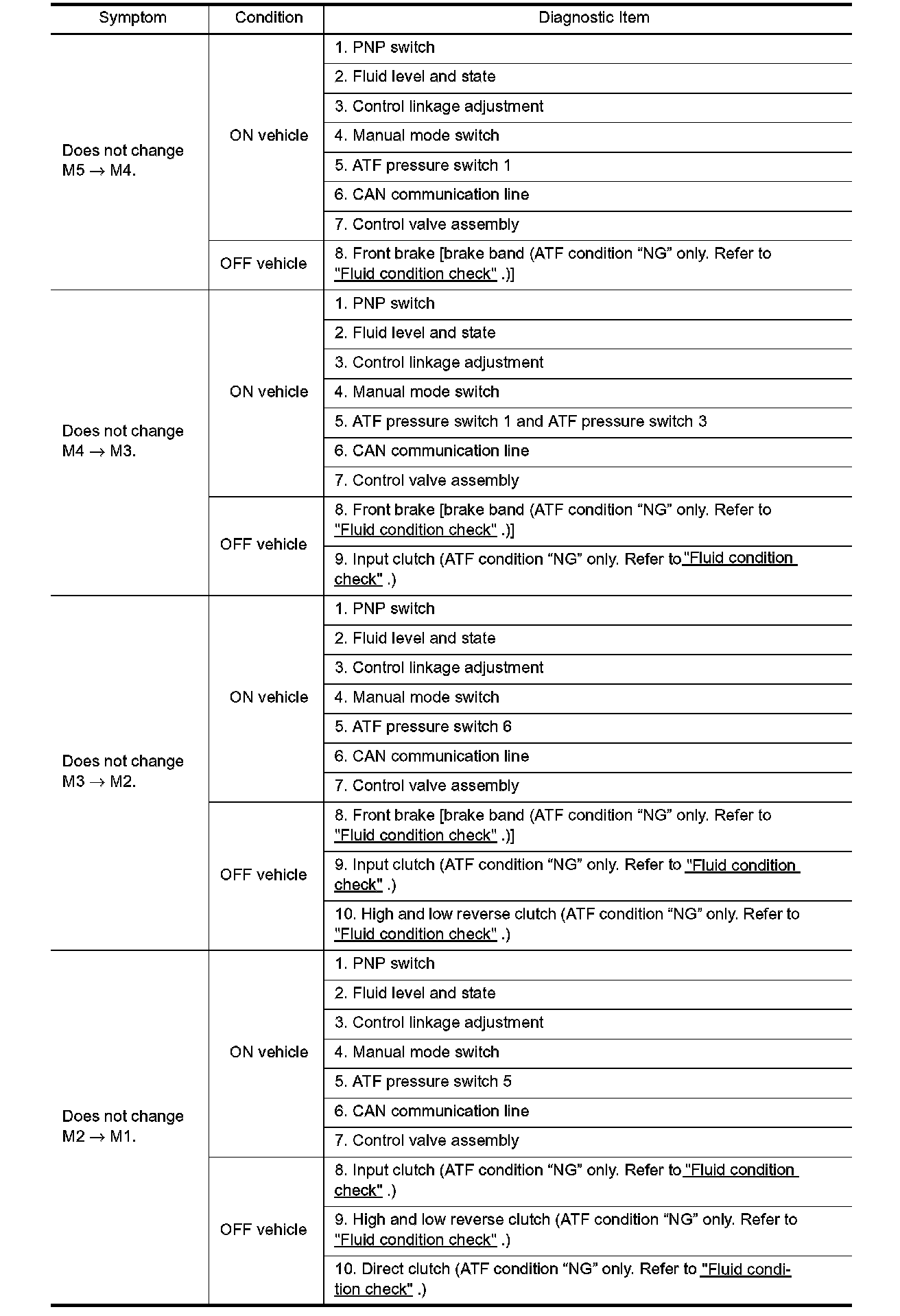

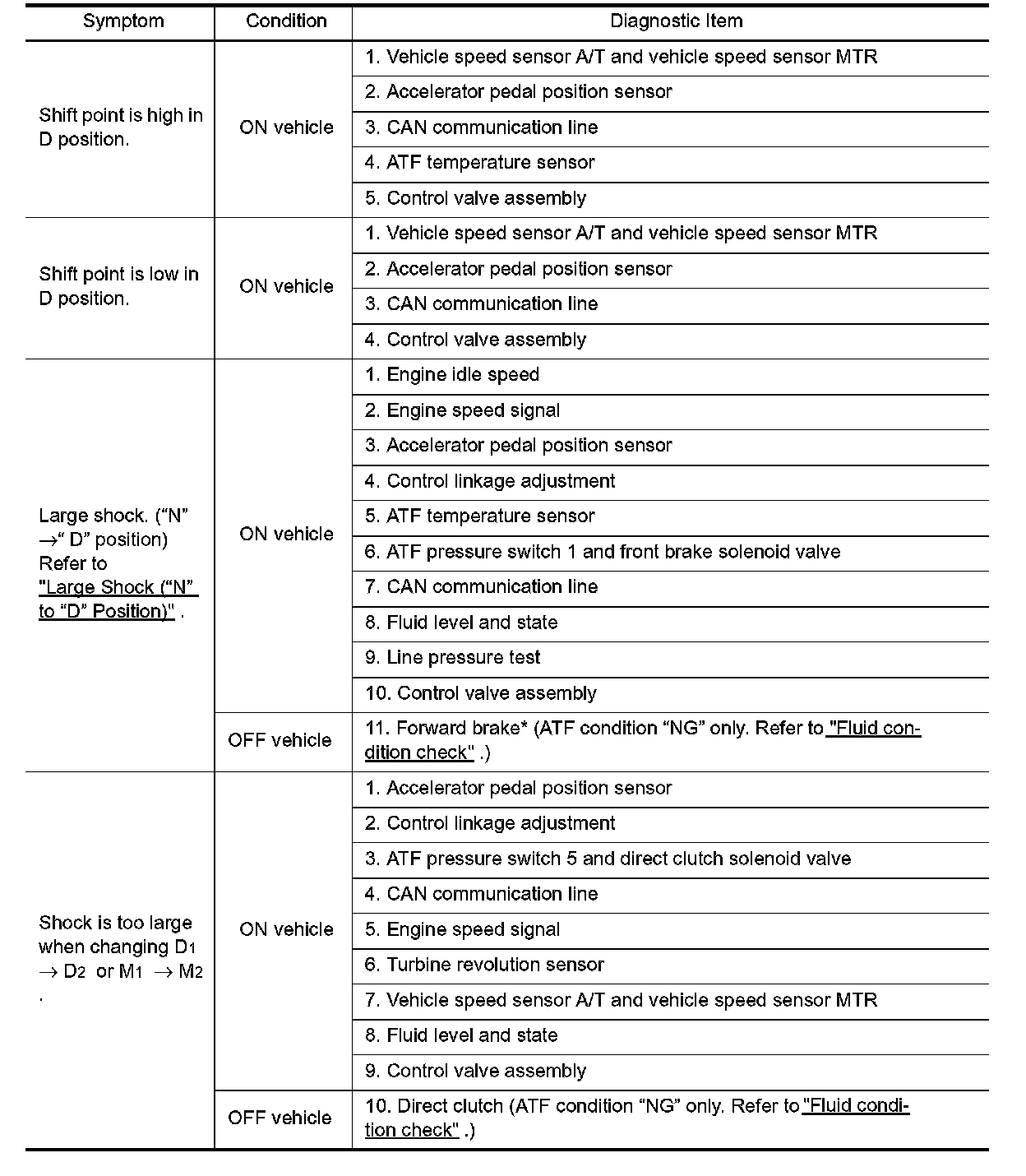

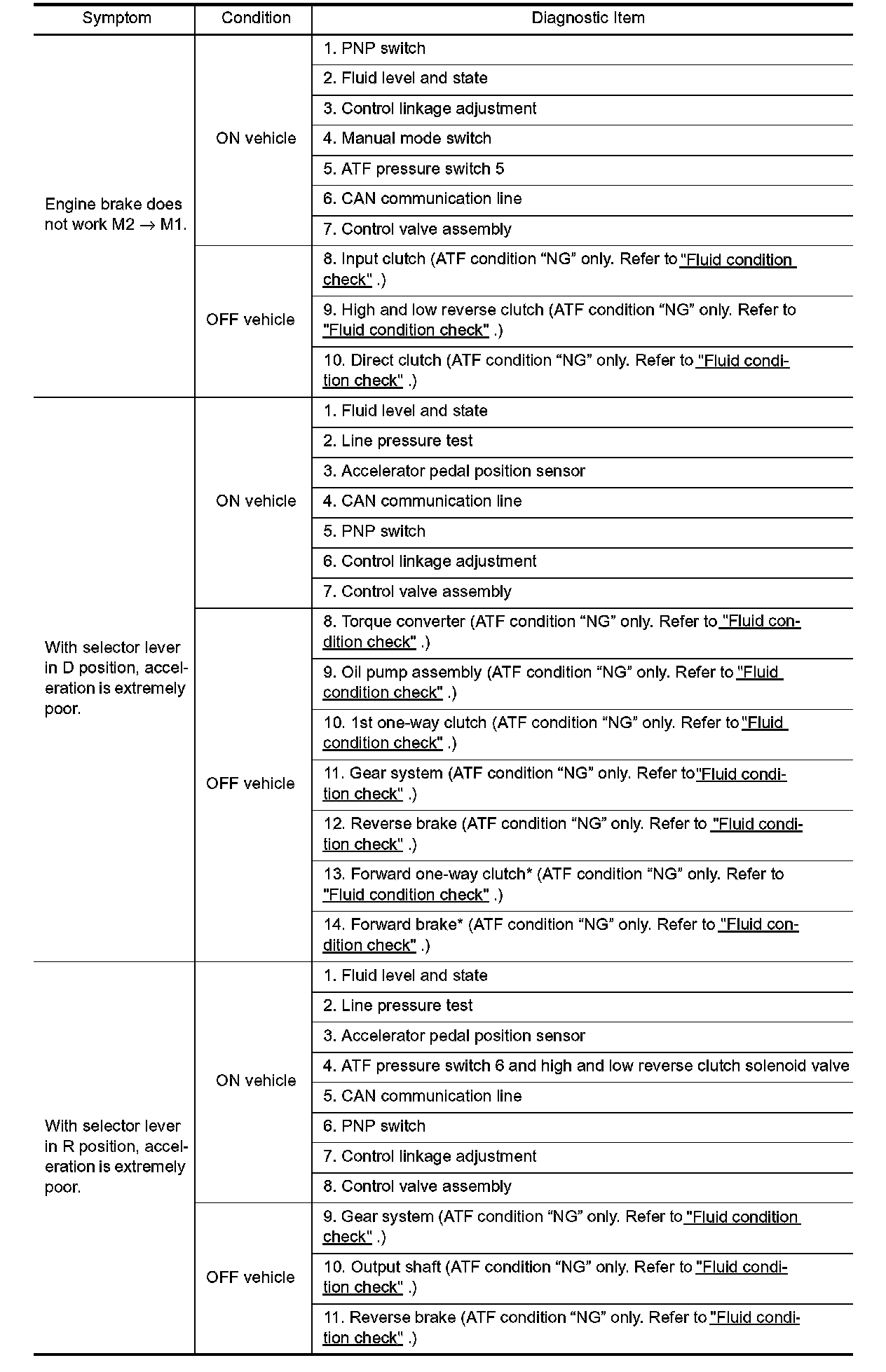

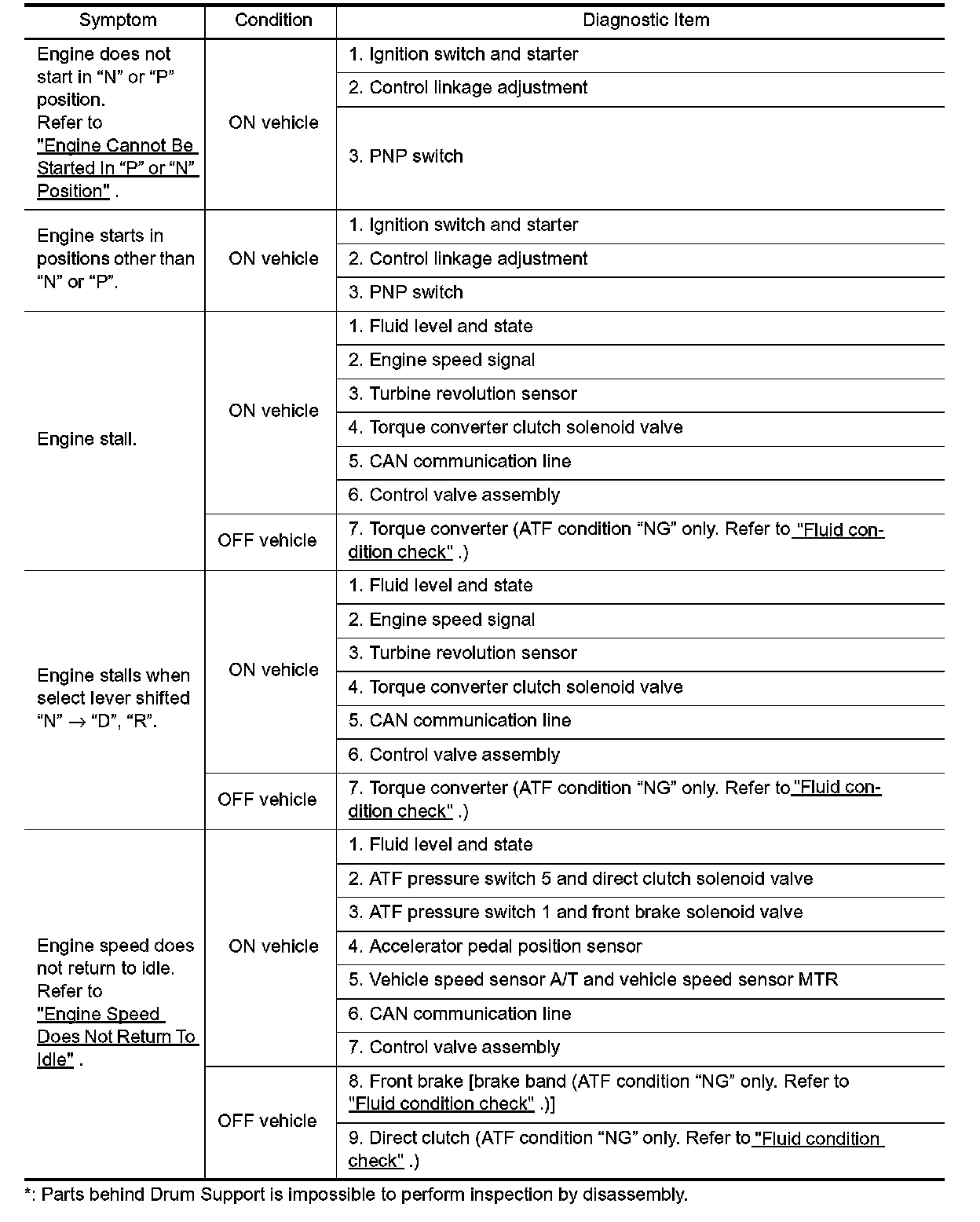

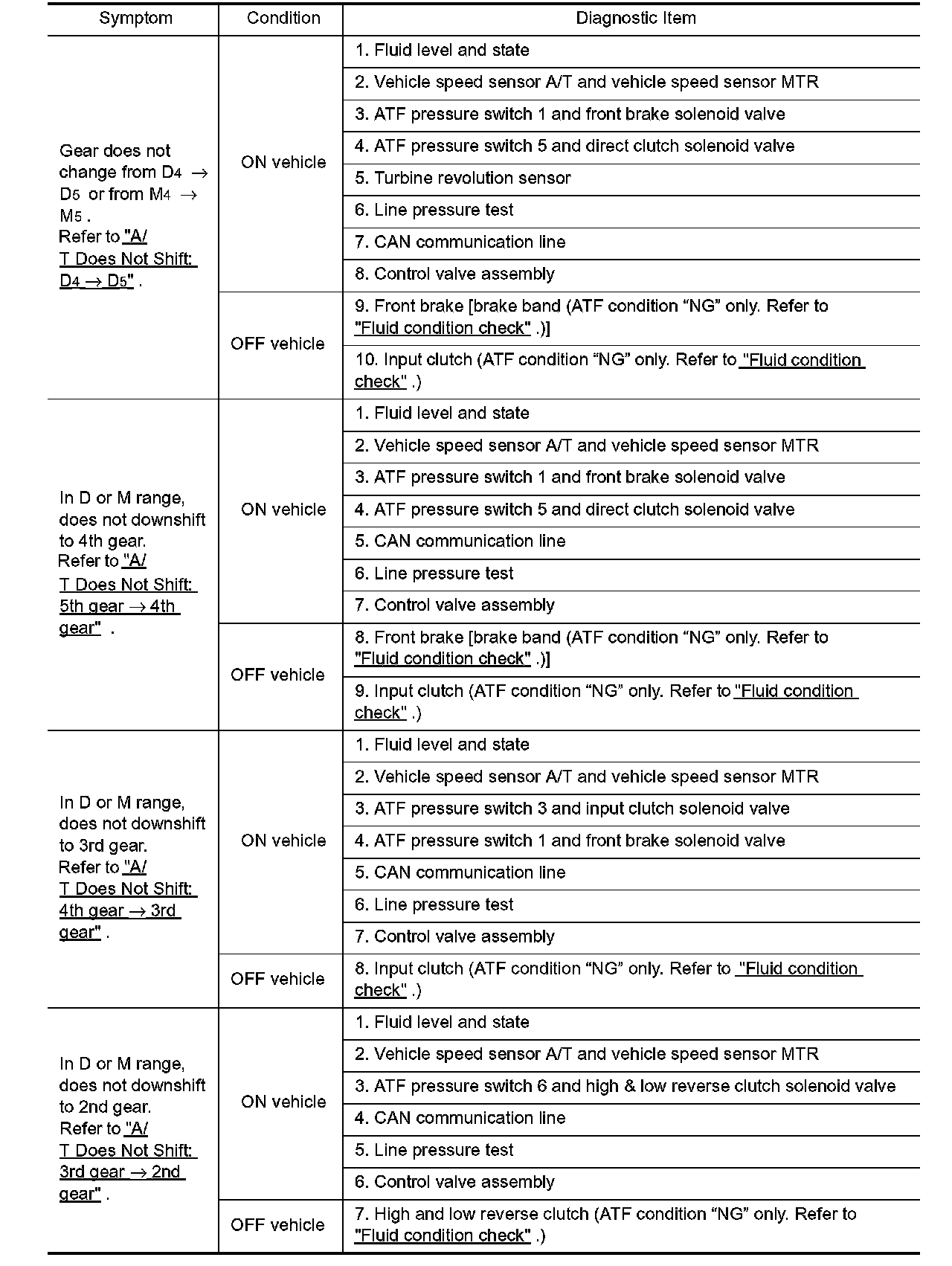

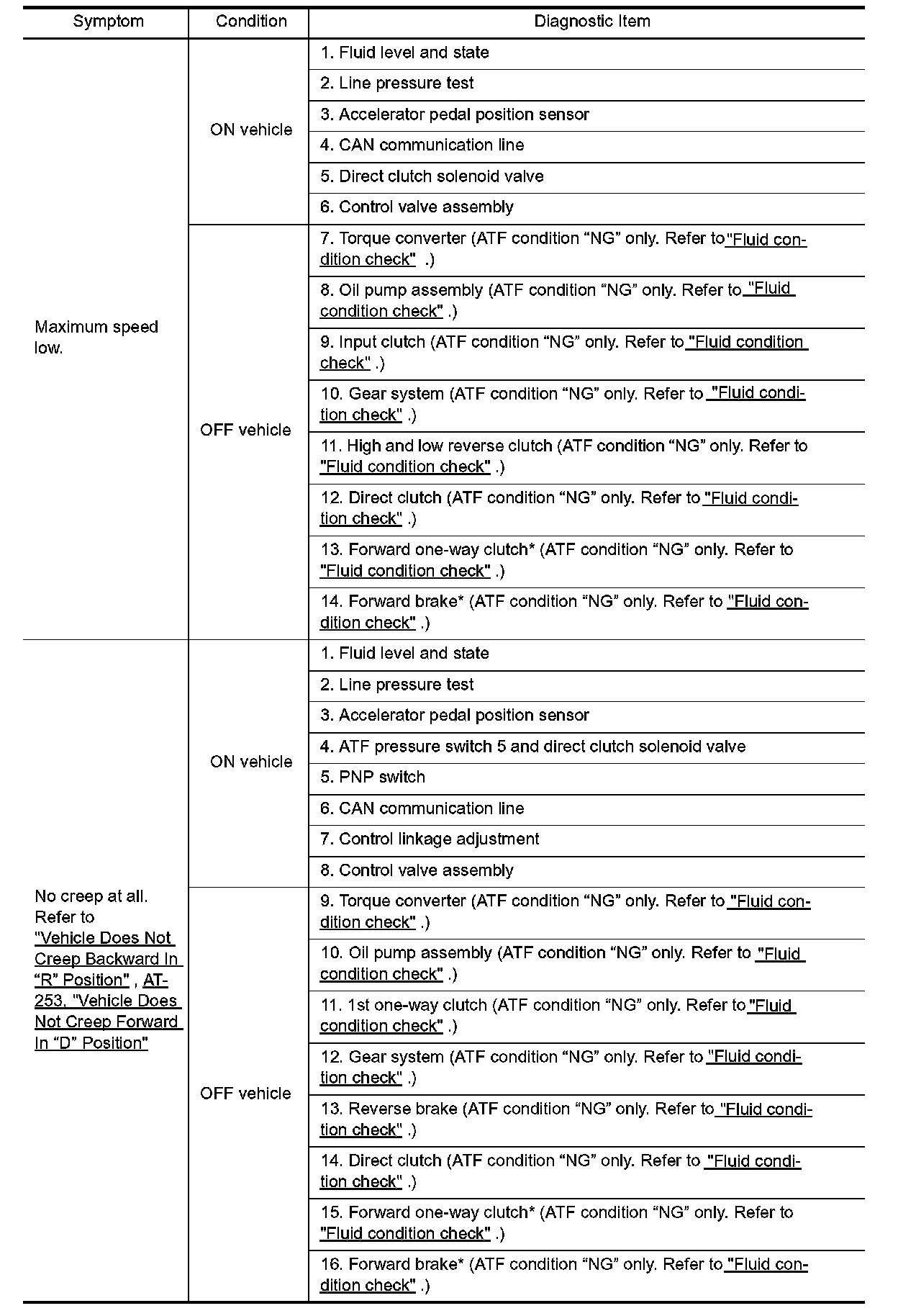

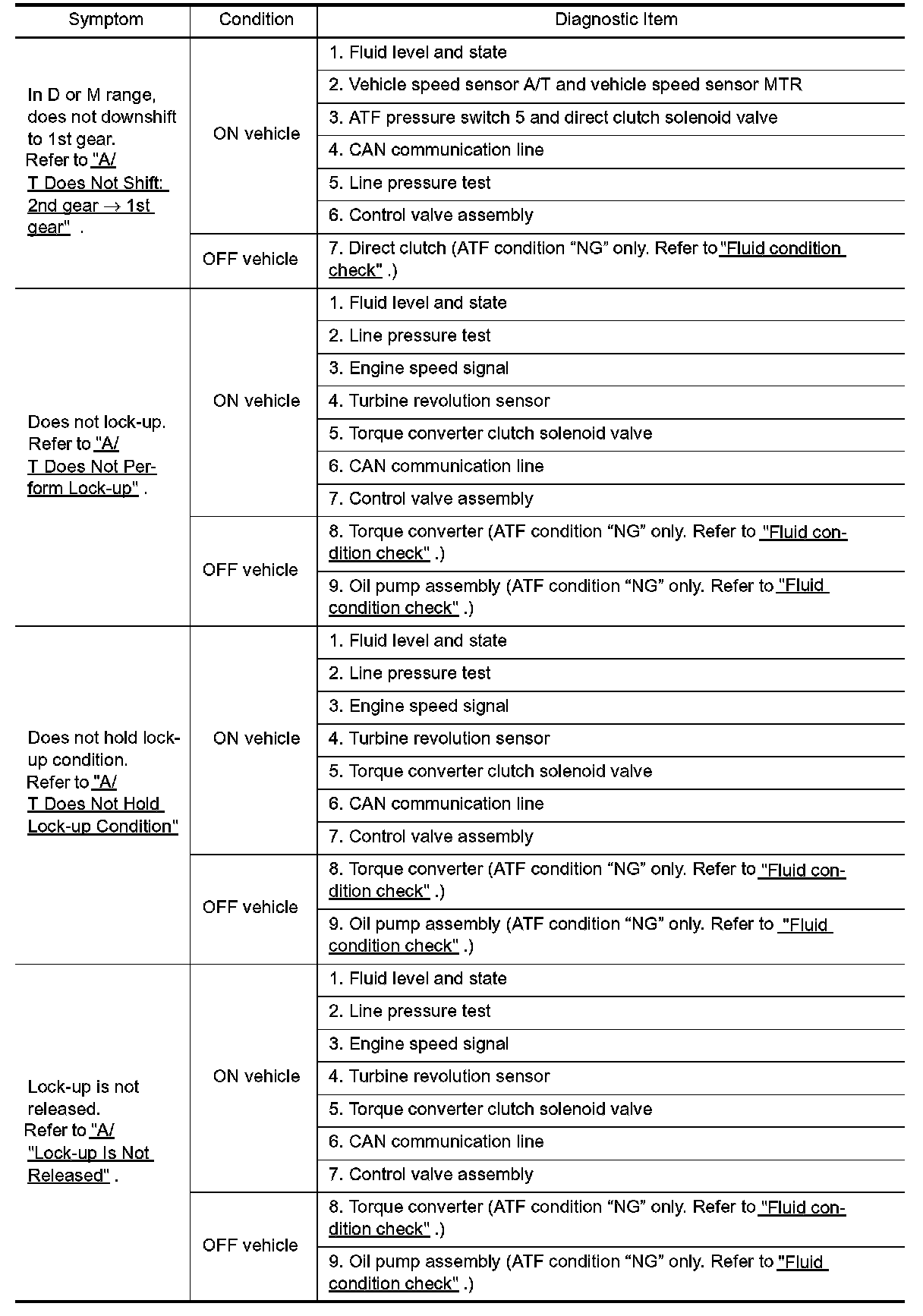

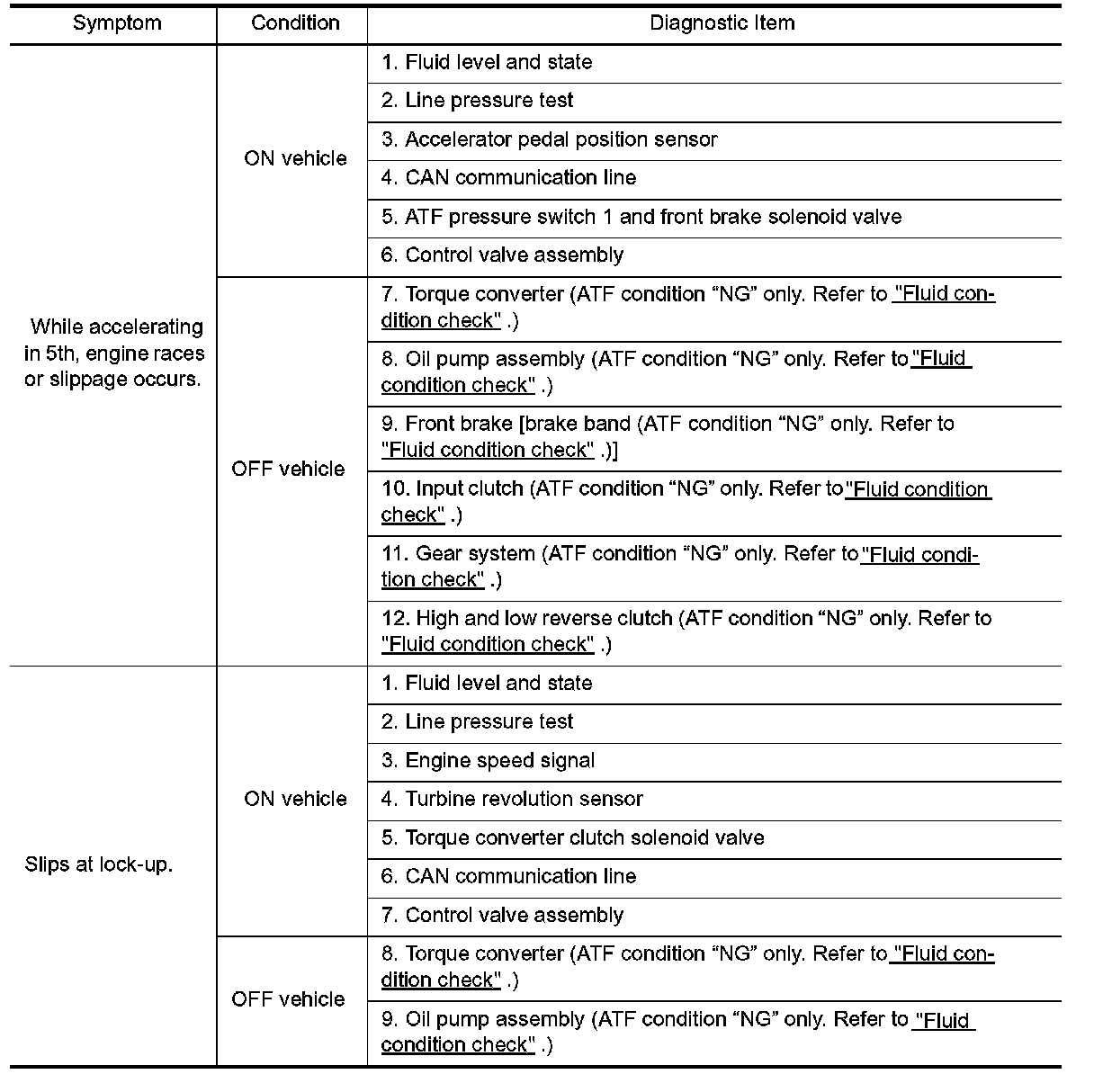

Symptom Chart

Symptom Chart
The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

Test 1 Of 23:




Test 2 Of 23:




Test 3 Of 23:




Test 4 Of 23:




Test 5 Of 23:




Test 6 Of 23:




Test 7 Of 23:




Test 8 Of 23:




Test 9 Of 23:




Test 1o Of 23:




Test 11 Of 23:




Test 12 Of 23:




Test 13 Of 23:




Test 14 Of 23:




Test 15 Of 23:




Test 16 Of 23:




Test 17 Of 23:




Test 18 Of 23:




Test 19 Of 23:




Test 20 Of 23:




Test 21 Of 23:




Test 22 Of 23:




Test 23 Of 23:
