Connecting Rod, Engine
CONNECTING RODCenter distance 146.95 - 147.05 mm (5.79 - 5.79 inch)
Bend [per 100 (3.94)]
Limit 0.15 mm (0.0059 inch)
Torsion [per 100 (3.94)]
Limit 0.30 mm (0.0118 inch)
Connecting rod small end inner diameter 24.980 - 25.000 mm (0.9835 - 0.9843 inch)

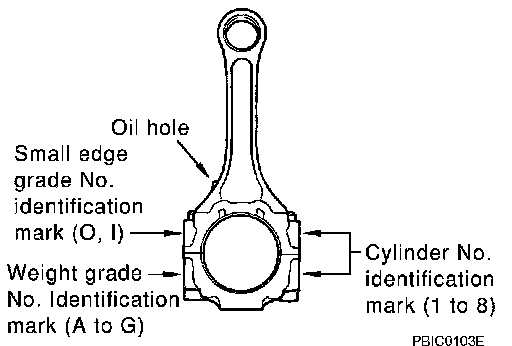

Piston pin bushing inner diameter
Grade No. 0 22.000 - 22.006 mm (0.8661 - 0.8664 inch)
Grade No. 1 22.006 - 22.012 mm (0.8664 - 0.8666 inch)
Connecting rod big end inner diameter 55.000 - 55.013 mm (2.1654 - 2.1659 inch)
Side clearance
Standard 0.20 - 0.35 mm (0.0079 - 0.0138 inch)
Limit 0.40 mm (0.0157 inch)
Rod Bearing Cap Bolts
Tighten the connecting rod nuts as follows:
Apply engine oil to the threads and seats of the connecting rod bolts and nuts.
Tighten nuts to 13.7 to 15.7 Nm (1.4 to 1.6 kg-m, 10 to 12 ft. lbs.).

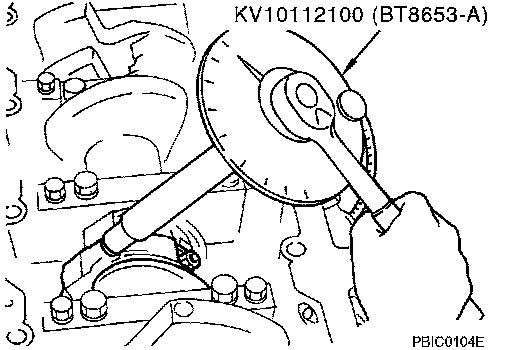

Put mating (with paint) on each nut and connecting rod cap, all in the same direction (when using a protractor).
Then all nuts 60 to 65 degrees clockwise [target: 60 degrees] (angle tightening).
CAUTION: Always use either an angle wrench or protractor. Avoid tightening based on visual check alone.
