Cooling System

COOLING SYSTEM

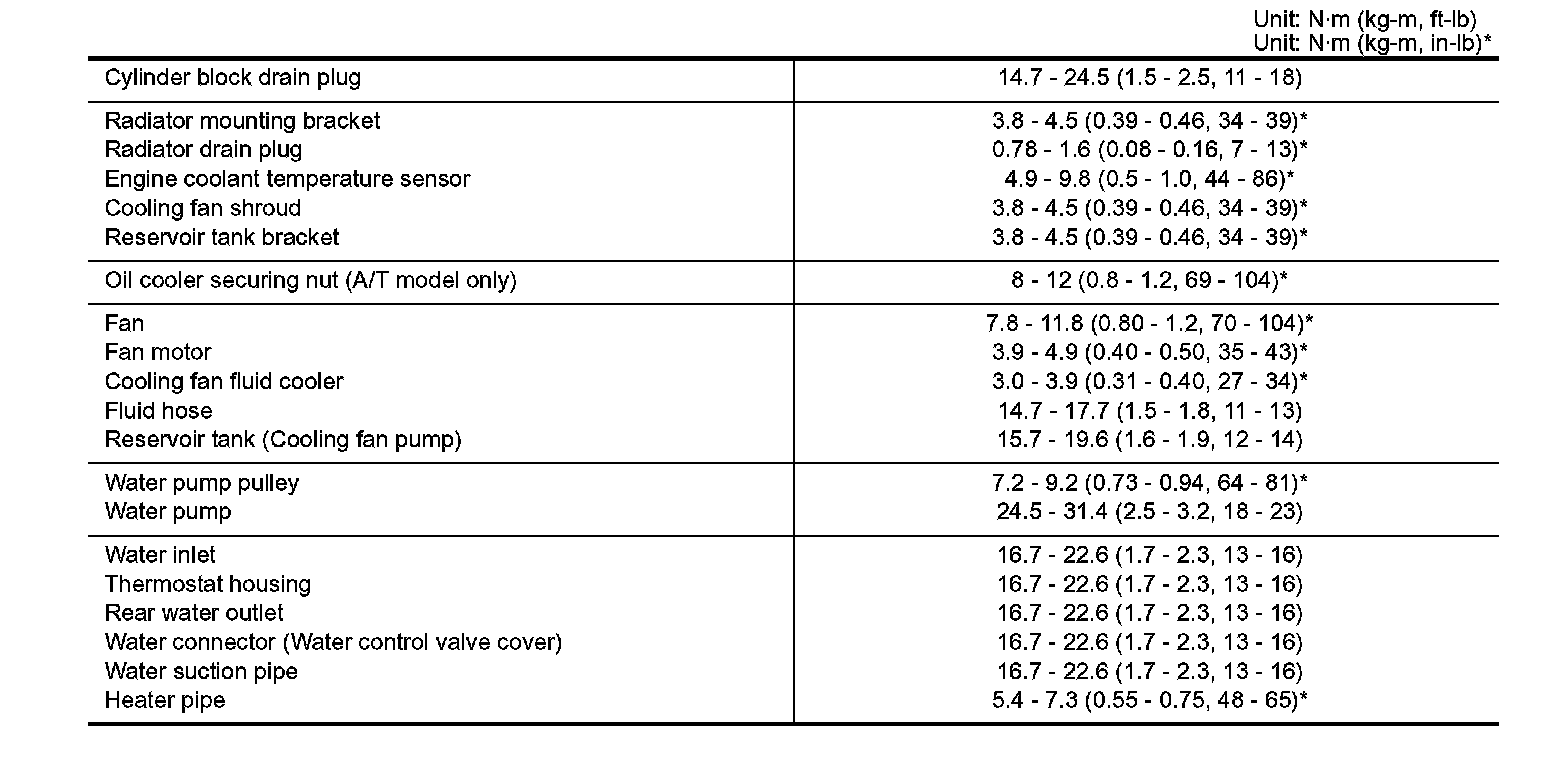

Cooling System:

Fluid hose 14.7 - 17.7 Nm (1.5 - 1.8 kg-m, 11 - 13 ft. lbs.)
Rear water outlet 16.7 - 22.6 Nm (1.7 - 2.3 kg-m, 13 - 16 ft. lbs.)
Water suction pipe 16.7 - 22.6 Nm (1.7 - 2.3 kg-m, 13 - 16 ft. lbs.)

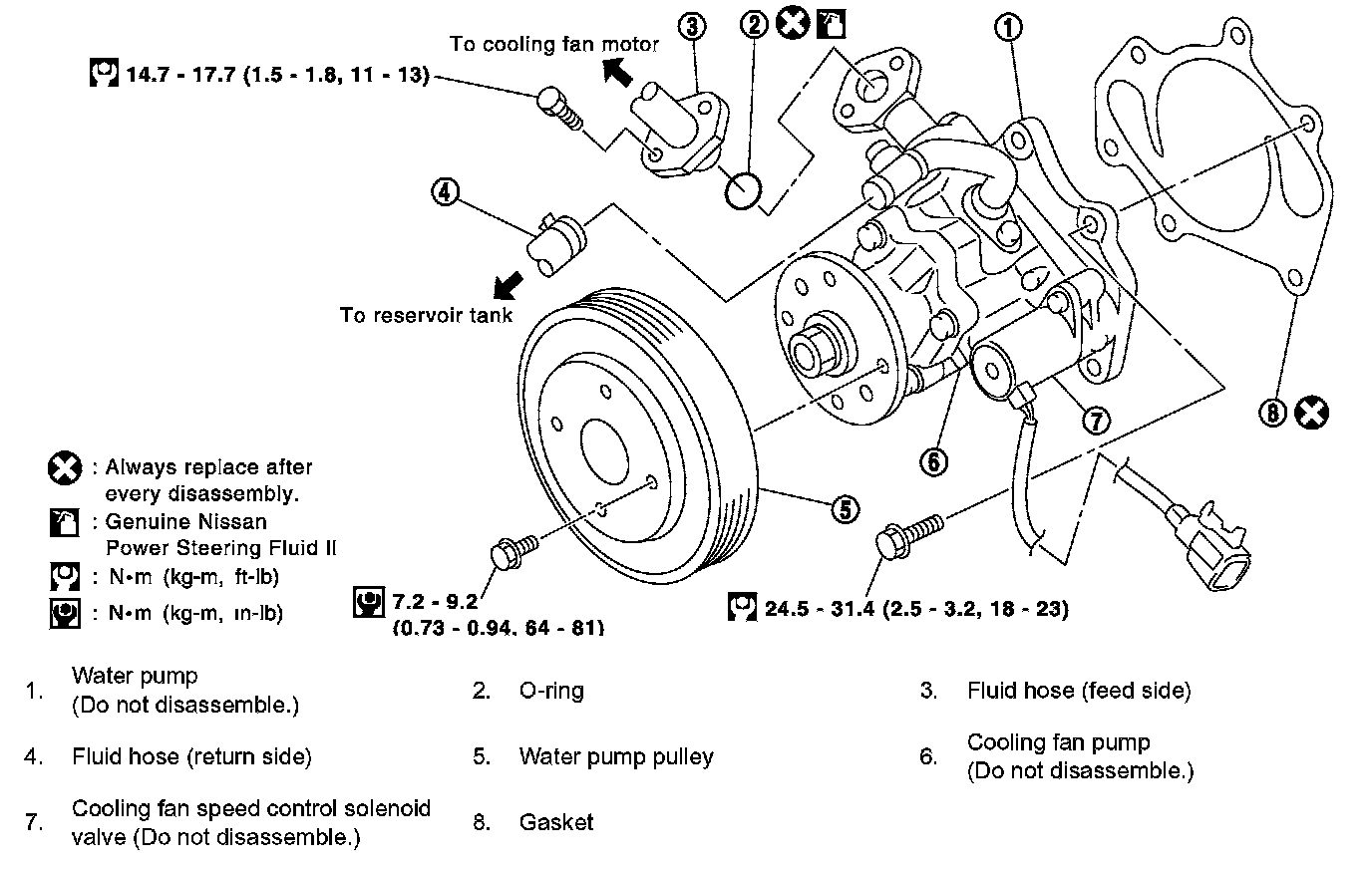

WATER PUMP:

Water pump pulley 7.2 - 9.2 Nm (0.73 - 0.94 kg-m, 64 - 81 inch lbs.)
Water pump 24.5 - 31.4 Nm (2.5 - 3.2 kg-m, 18 - 23 ft. lbs.)

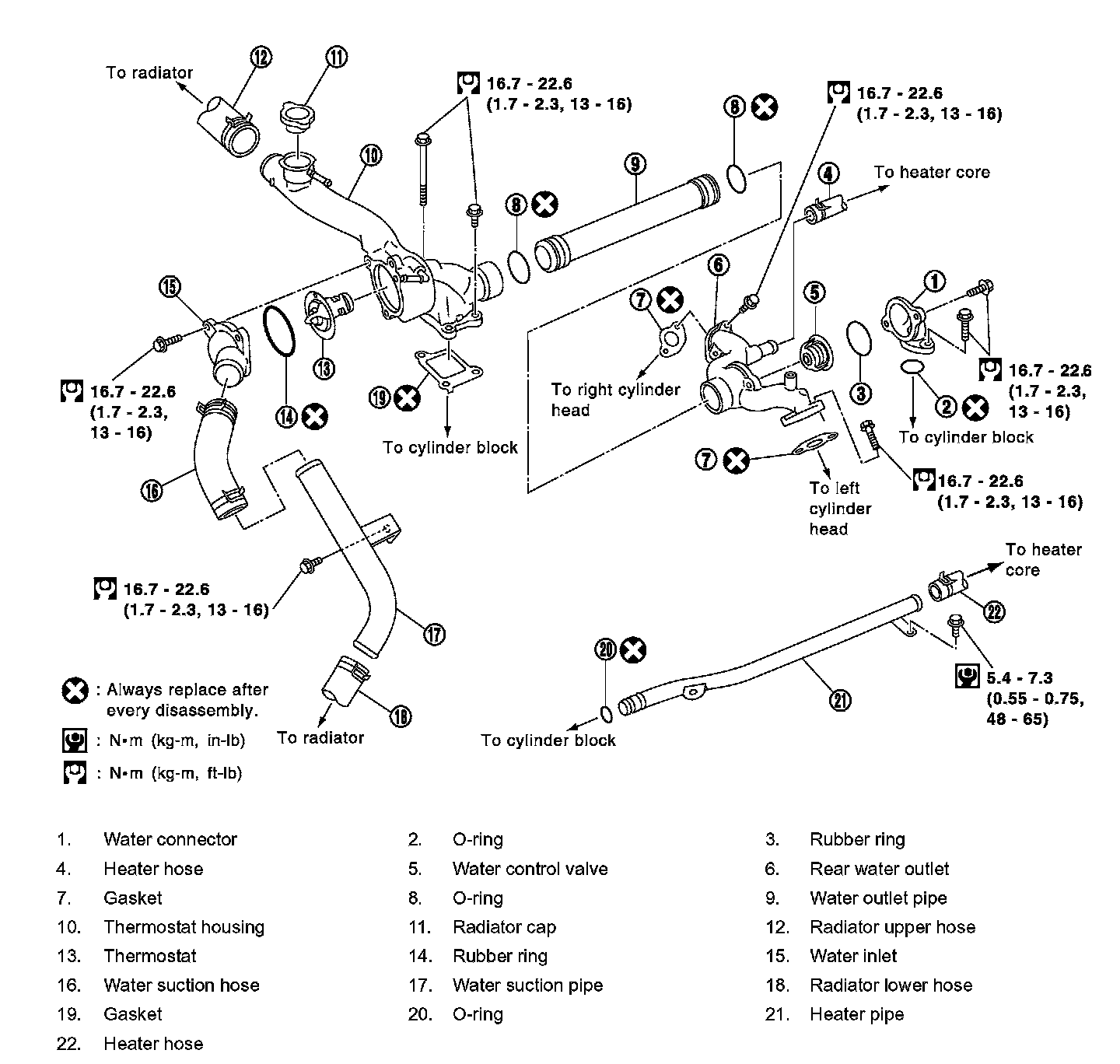

THERMOSTAT AND WATER CONTROL VALVE:

Water inlet 16.7 - 22.6 Nm (1.7 - 2.3 kg-m, 13 - 16 ft. lbs.)
Thermostat housing 16.7 - 22.6 Nm (1.7 - 2.3 kg-m, 13 - 16 ft. lbs.)

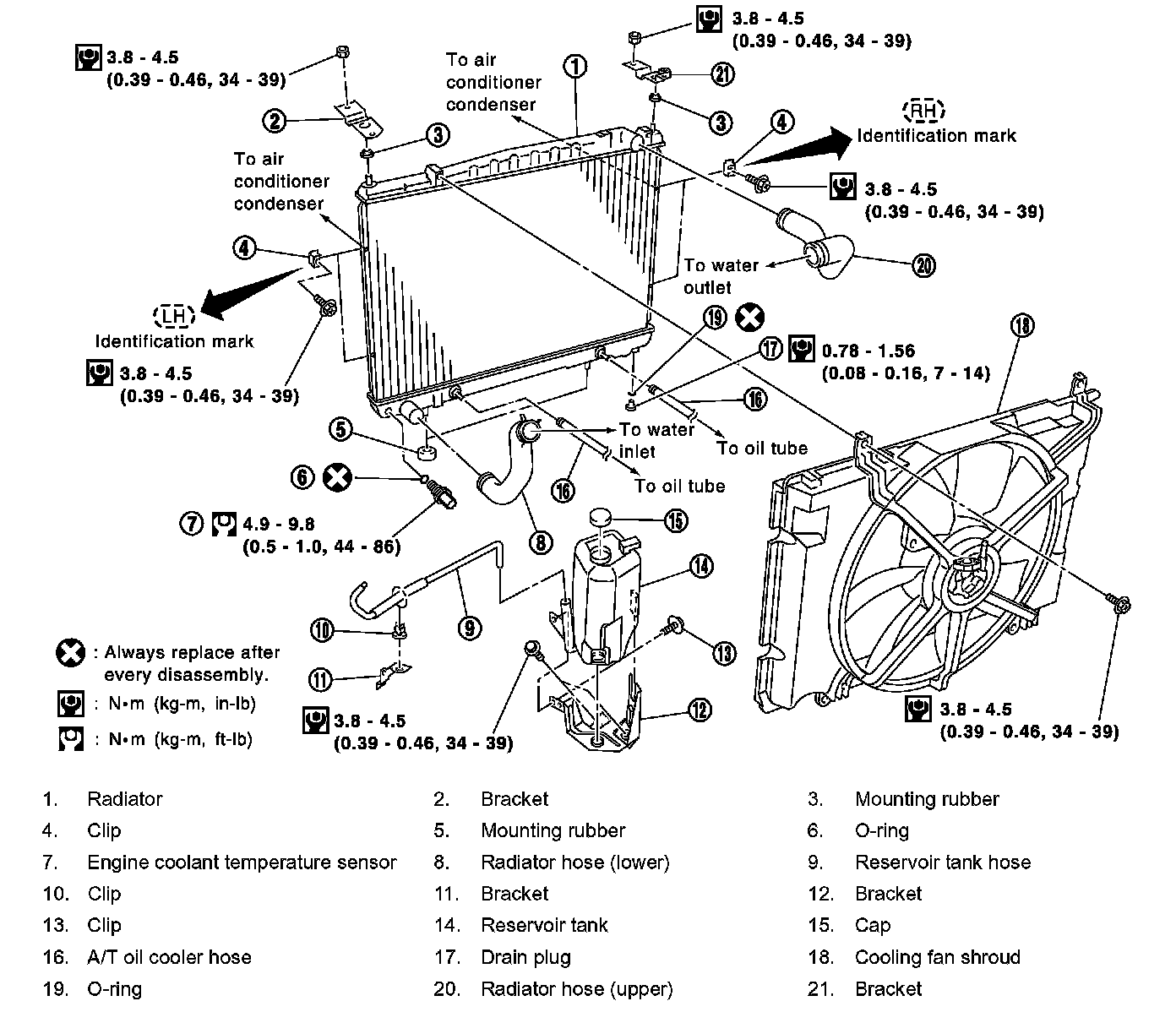

RADIATOR / Core - Tank:

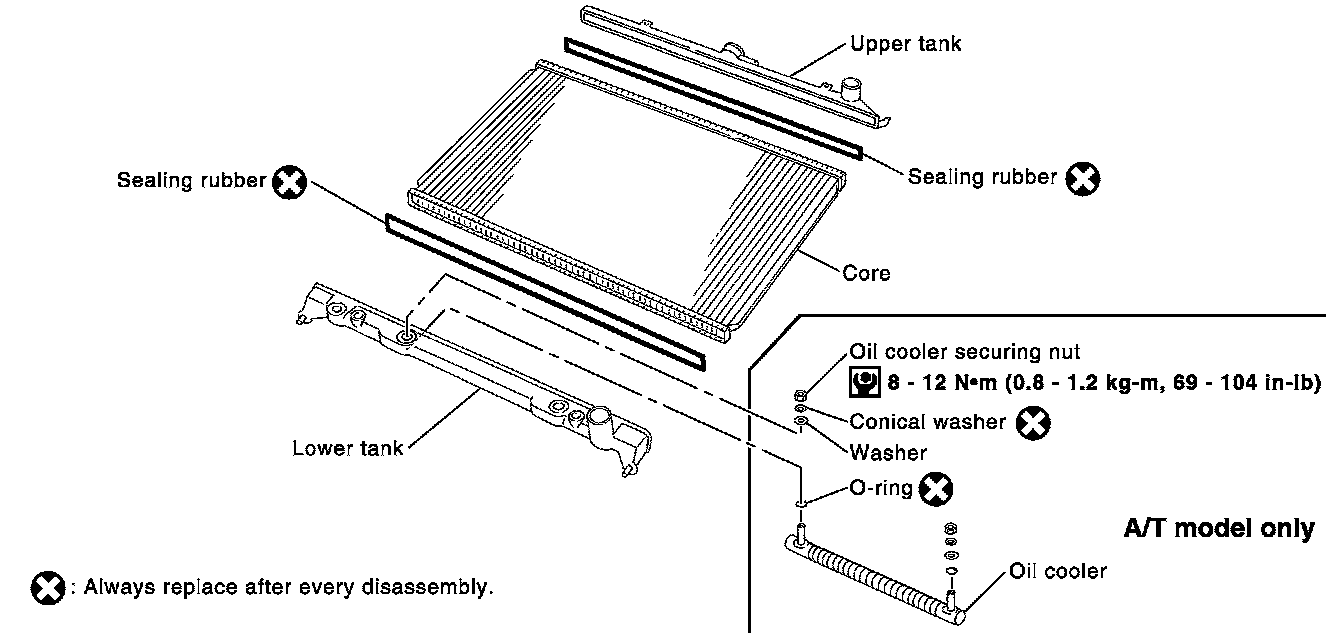

RADIATOR:

Reservoir tank bracket 3.8 - 4.5 Nm (0.39 - 0.46 kg-m, 34 - 39 inch lbs.)
Reservoir tank (Cooling fan pump) 15.7 - 19.6 Nm (1.6 - 1.9 kg-m, 12 - 14 ft. lbs.)
Radiator drain plug 0.78 - 1.6 Nm (0.08 - 0.16 kg-m, 7- 13 inch lbs.)
Cooling fan shroud 3.8 - 4.5 Nm (0.39 - 0.46 kg-m, 34 - 39 inch lbs.)

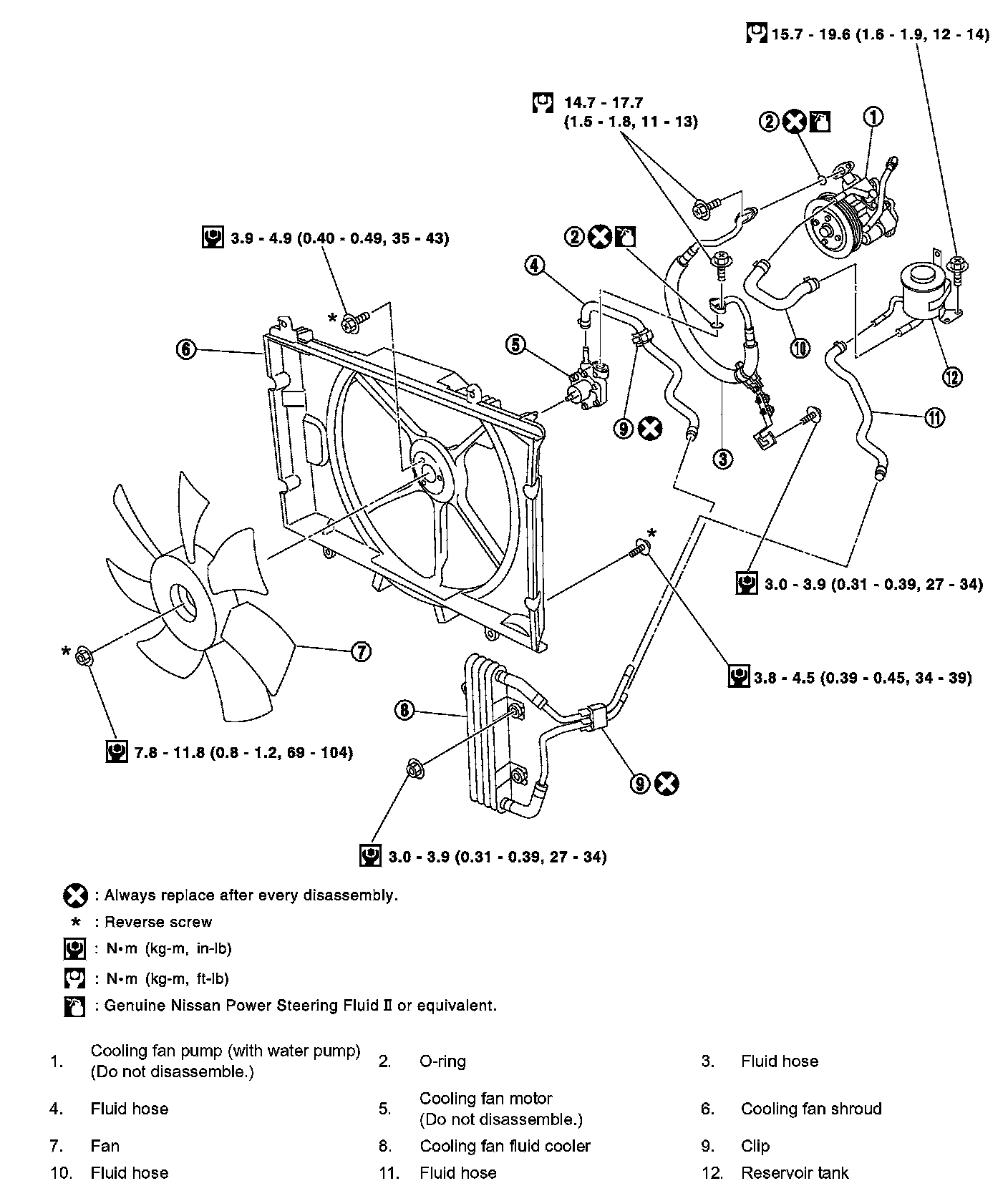

COOLING FAN:

Fan 7.8 - 11.8 Nm (0.80 - 1.2 kg-m, 70 - 104 inch lbs.)
Fan motor 3.9 - 4.9 Nm (0.40 - 0.50 kg-m, 35 - 43 inch lbs.)


Cylinder block drain plug: 14.7 - 24.5 Nm (1.5 - 2.5 kg-m, 11 -1 8 ft. lbs.)
