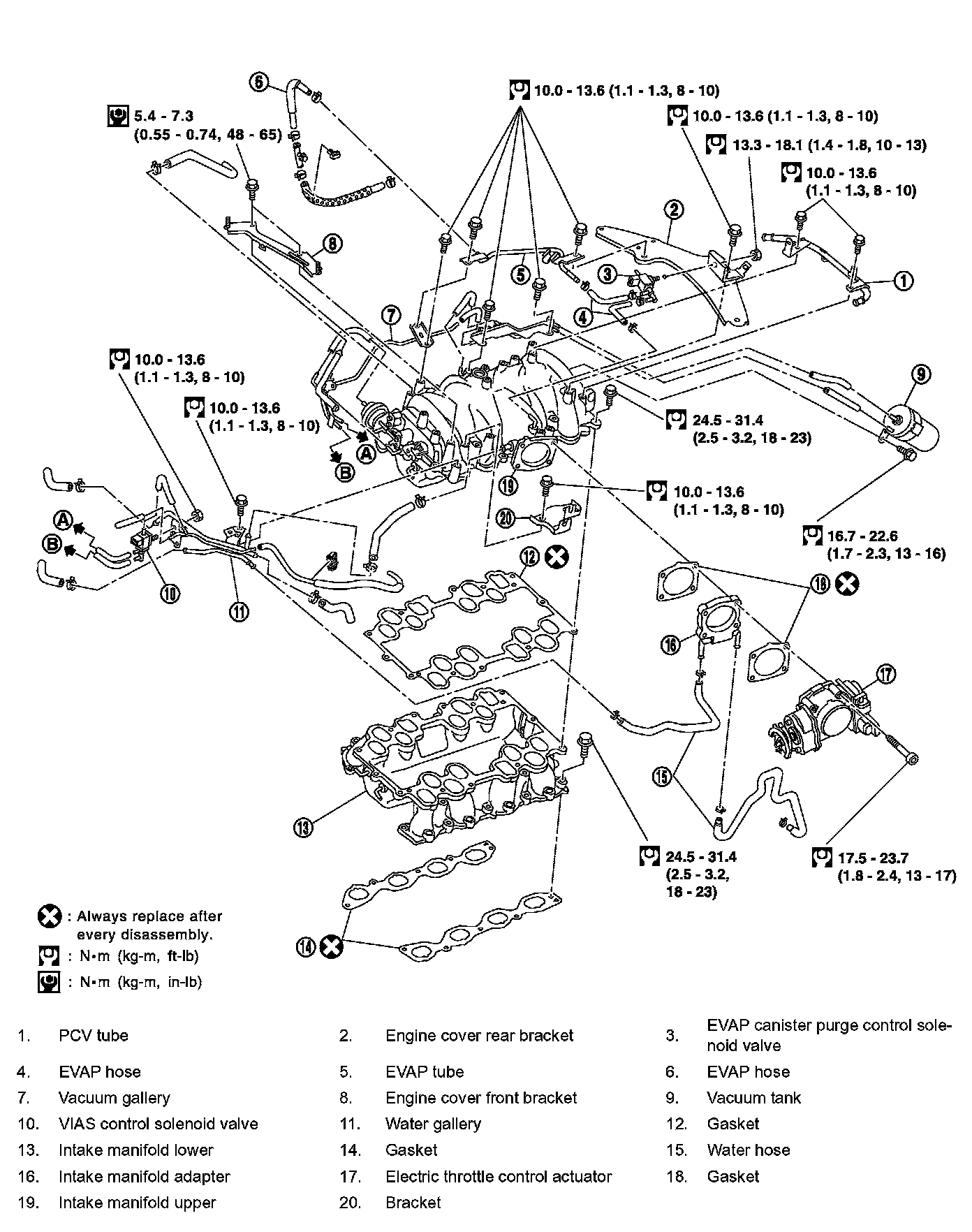

Intake Manifold
INTAKE MANIFOLDSurface distortion
Intake manifold upper 0.1 mm (0.004 inch)
Intake manifold lower 0.1 mm (0.004 inch)
Exhaust manifold 0.3 mm (0.012 inch)
INTAKE MANIFOLD:

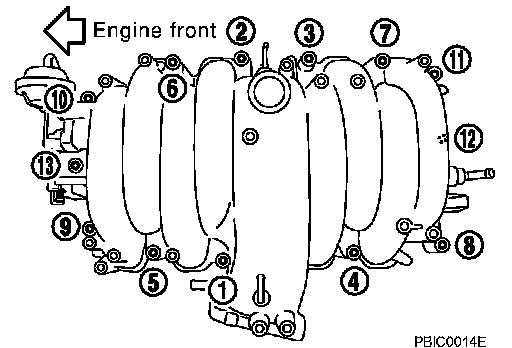

Intake manifold upper:
Intake manifold upper 24.5 - 31.4 Nm (2.5 - 3.2 kg-m, 18 - 23 ft. lbs.)

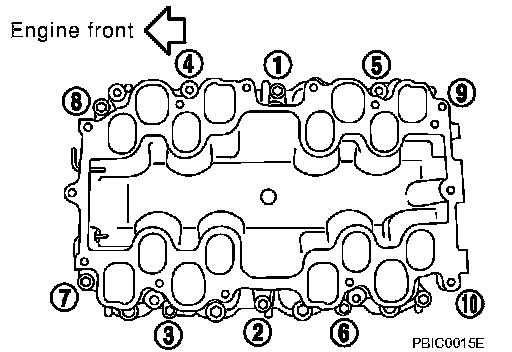

Intake manifold lower:
Intake manifold lower 24.5 - 31.4 Nm (2.5 - 3.2 kg-m, 18 - 23 ft. lbs.)
