Transmitter Wake Up Operation

Transmitter Wake Up Operation

WITH TRANSMITTER ACTIVATION TOOL





1. With the transmitter activation tool (J-45295) pushed against the front-left transmitter, press the button then keep 5 seconds.

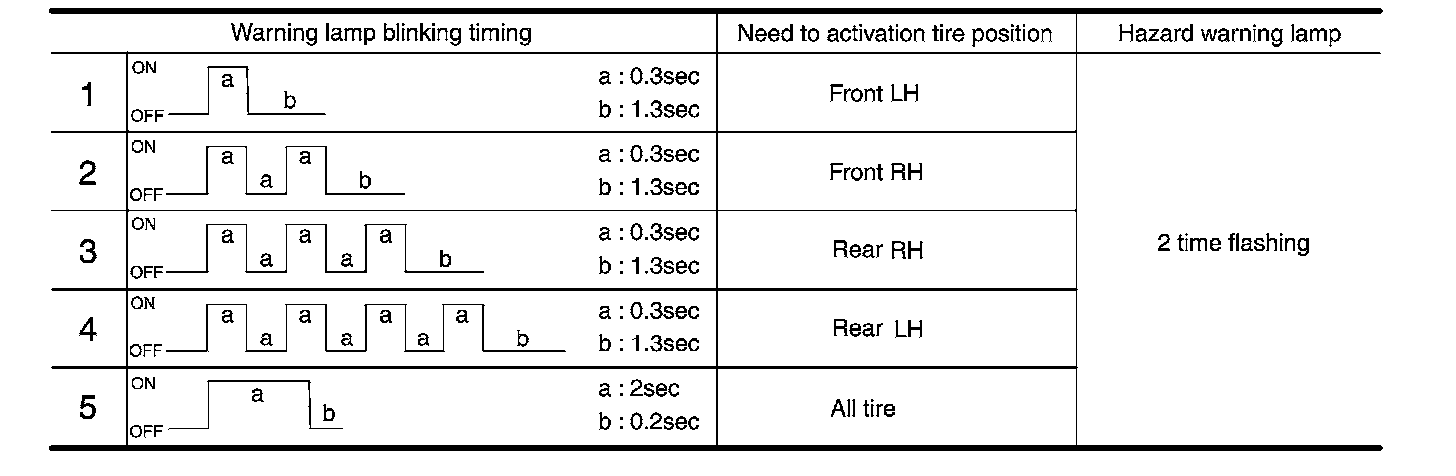

^ When ignition switch ON, then warning lamp is blinks as follow diagram transmitter must be waken up.

2. Register the IDs in order from FR LH, FR RH, RR RH or RR LH. When wake up of each wheel has been completed, a hazard warning lamp blinks.





3. After completing waking up of all transmitters, make sure tire pressure warning lamp go out.
