Disassembly of Differential Case Assembly

DISASSEMBLY OF DIFFERENTIAL CASE ASSEMBLY

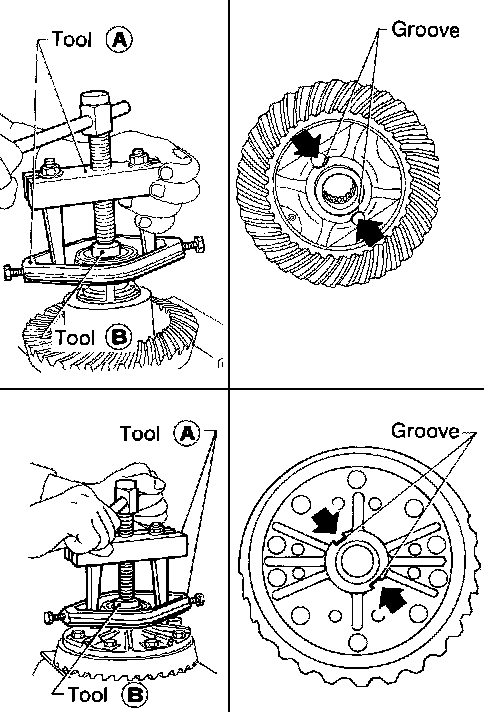

1. Remove side bearing inner race. To prevent damage to bearing, engage puller jaws in groove.
Tool number: A ST3305S001 ( - )
:B ST33061000 (J8107-2)

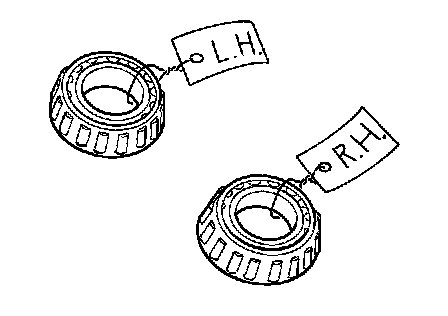

^ Be careful not to confuse left- and right-hand parts.





2. Loosen ring gear bolts in a crisscross fashion.

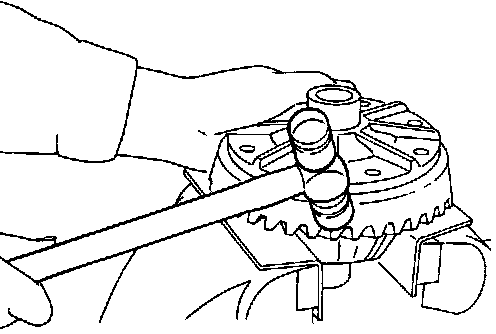

3. Tap ring gear off the differential case with a soft hammer.
^ Tap evenly all around to keep ring gear from binding.





4. Drive out pinion mate shaft lock pin with punch from ring gear side.
