With CONSULT-II
ID Code Entry ProcedurePROCEDURE 2 (WITH CONSULT-II)
NOTE: If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use. When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
3. Turn ignition switch ON.
4. Touch START (NISSAN BASED VHCL).
5. Touch IVMS
If IVMS is not indicated, go to GI-38, "CONSULT-II Data Link Connector (DLC) Circuit". Data Link Connector Schematic
6. Check the model specification, touch either WITH SUNROOF or WITHOUT SUNROOF.
7. Touch OK. If the selection is wrong, touch CANCEL.

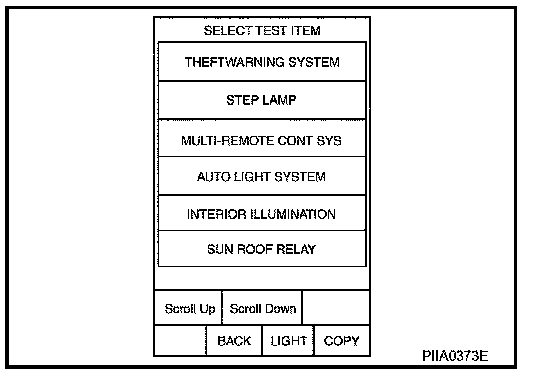

8. Touch MULTI-REMOTE CONT SYS.
9. Touch WORK SUPPORT.
10. The item shown on the figure at right can be set up.
- "REMO CONT ID CONFIR"
Use this mode to confirm if a electronic key ID code is registered or not.
- "REMO CONT ID REG" Use this mode to register a electronic key ID code.
NOTE: Register the ID code when electronic key or BCM is replaced, or when additional electronic key is required.
- "REMO CONT ID ERASUR" Use this mode to erase a electronic key ID code.
