Switch Monitor Procedure

SWITCH MONITOR

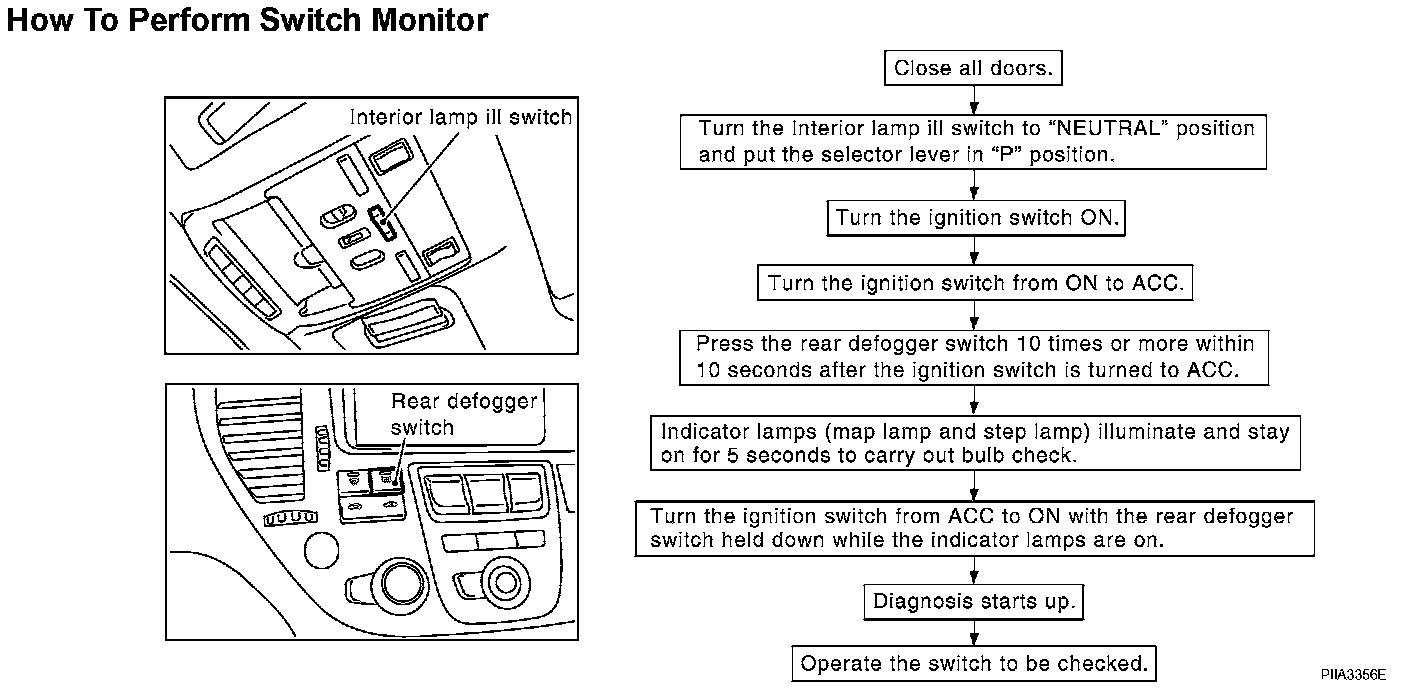

How To Perform Switch Monitor

Description




In this mode, when BCM detects the input signal from a switch in IVMS as shown here, the detection is indicated by the map lamp and step lamps with buzzer.

Switch Monitor Item




The status of the switch (except the ignition switch, interior ill lamp switch, and map lamp switch) as input to each control unit can be monitored.

Cancel of Switch Monitor.
If one of the following conditions is satisfied, the switch monitor is cancelled.
- Turn ignition switch OFF.
- Drive the vehicle more than 7 km/h (4 MPH).
