Check Door Unlock Sensor

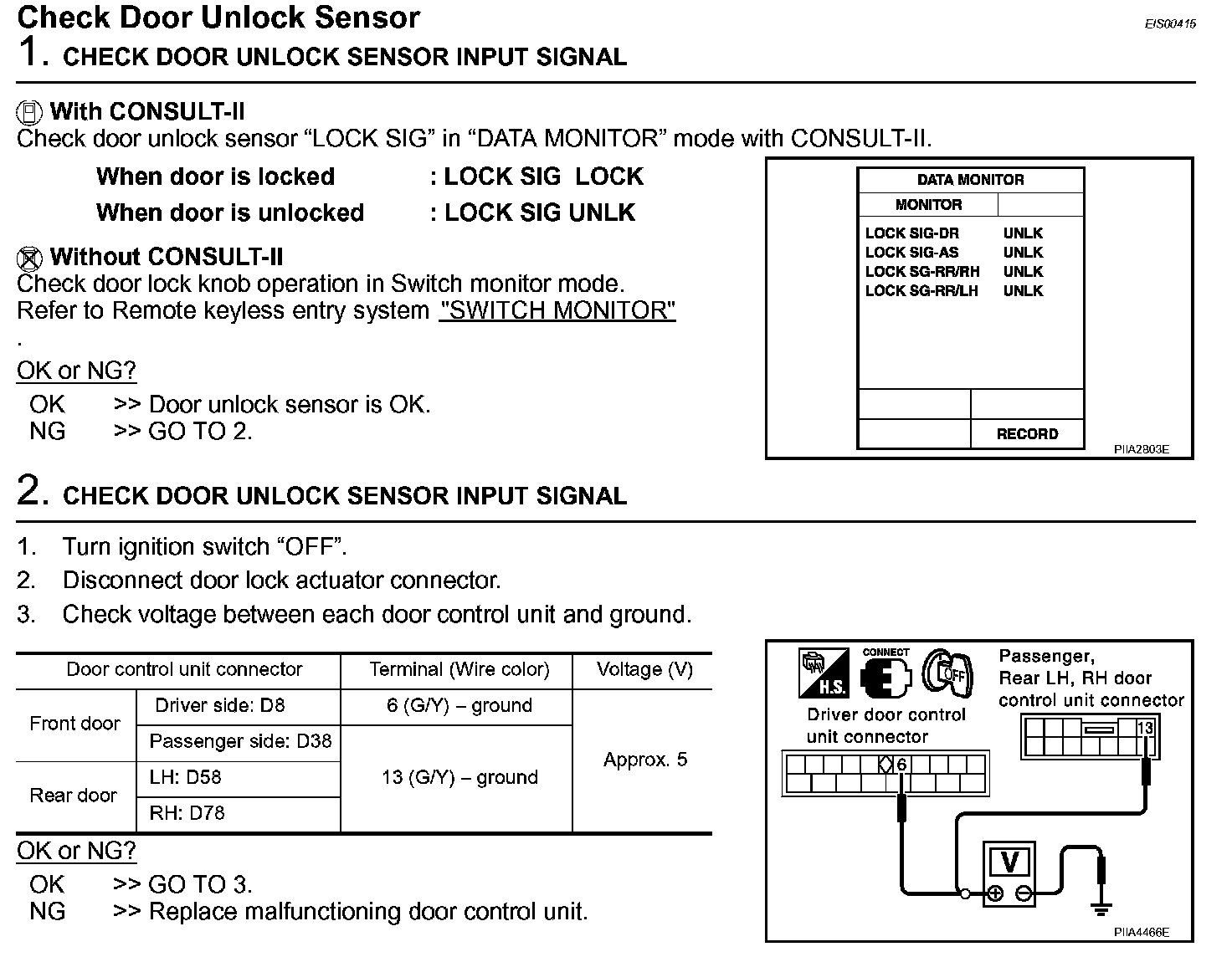

Check Door Unlock Sensor (Steps 1 - 2):



Check Door Unlock Sensor (Steps 3 - 4):
