Vehicle Speed Signal Inspection

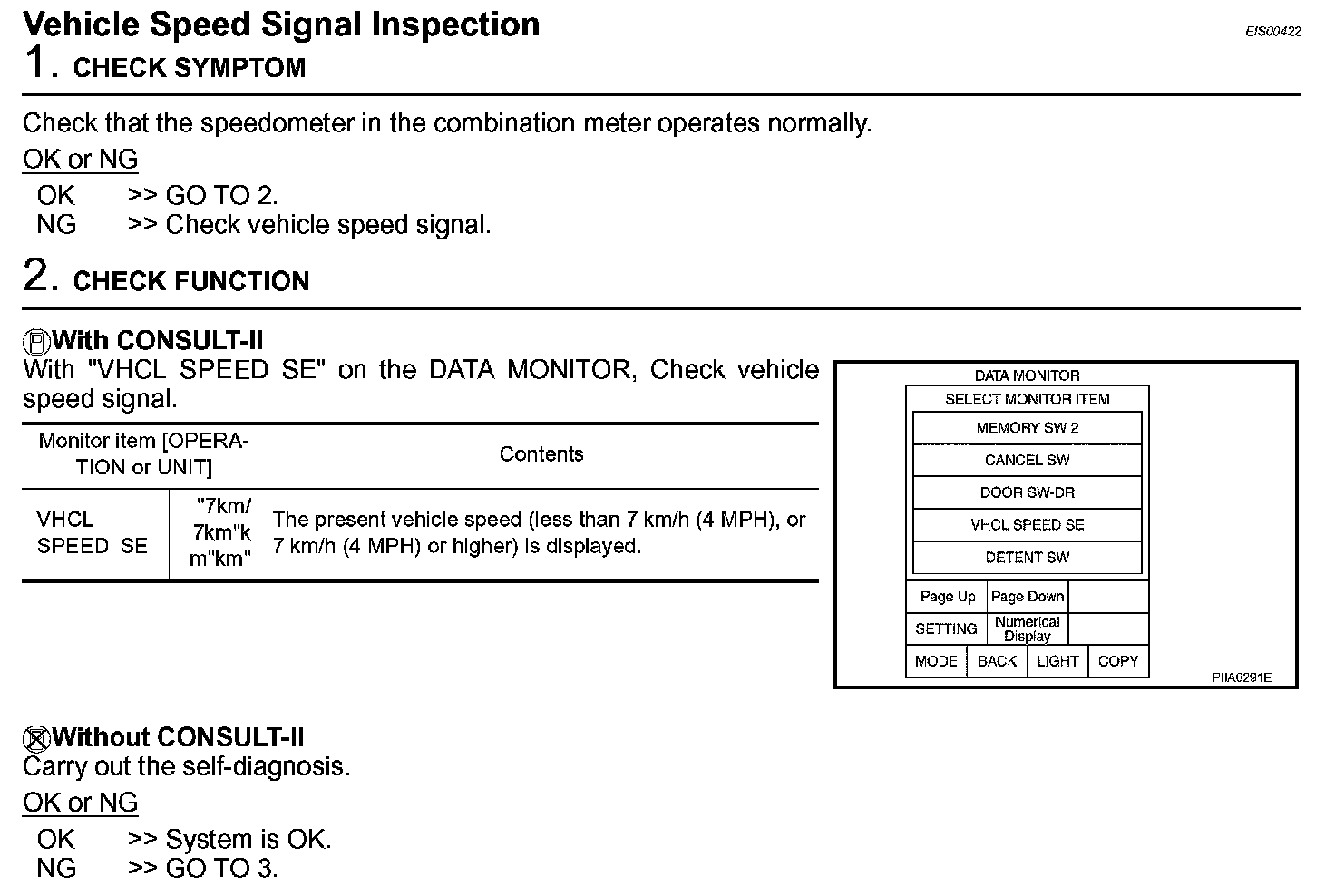

Vehicle Speed Signal Inspection (Steps 1 - 2):
Vehicle Speed Signal Inspection (Steps 3 - 4):
