Rear End Seat Lifting Motor Circuit Inspection
Rear End Seat Lifting Motor Circuit Inspection

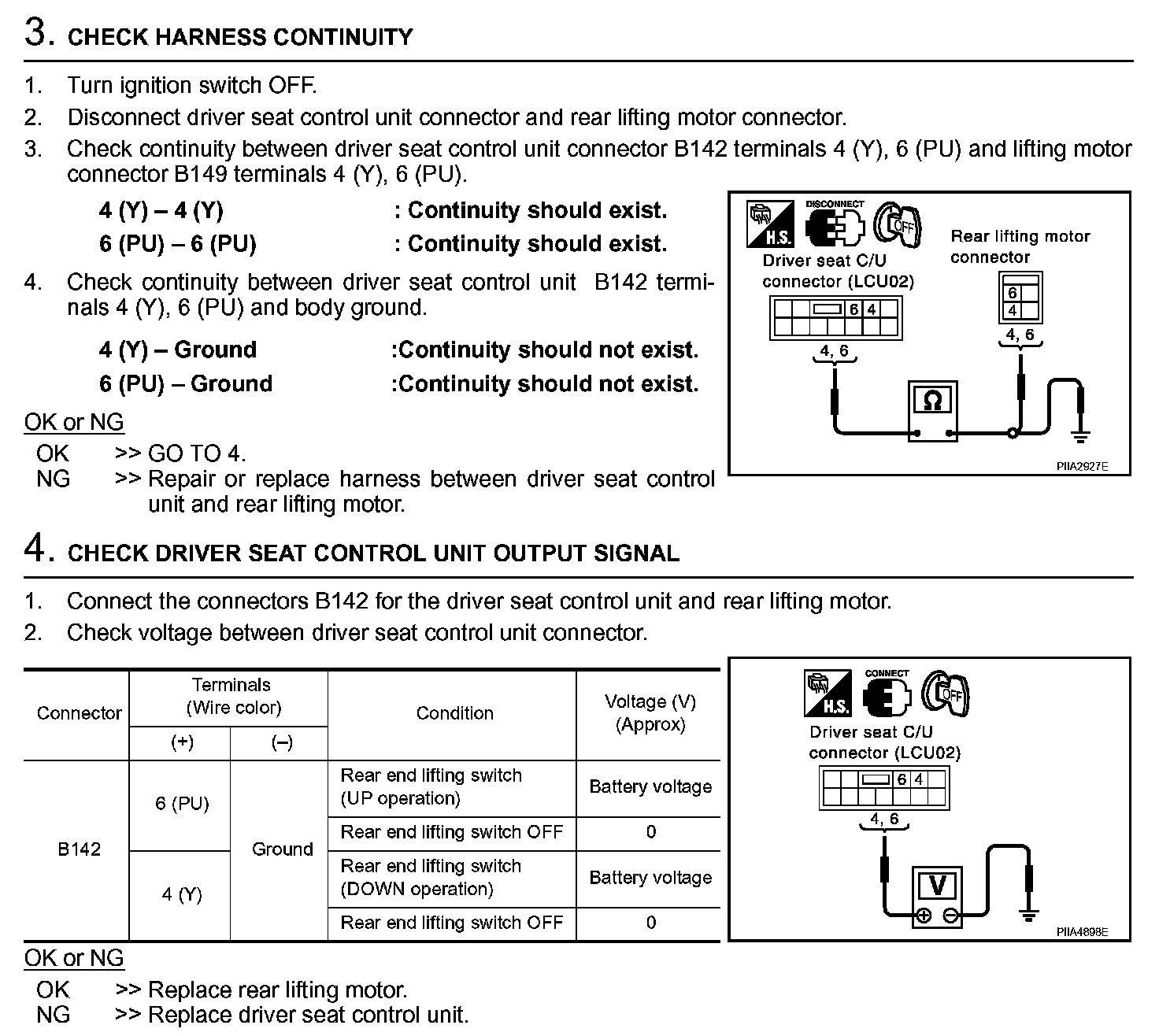

Rear End Seat Lifting Motor Circuit Inspection (Steps 1 - 2):
Rear End Seat Lifting Motor Circuit Inspection (Steps 3 - 4):
