DI-R/VIEW

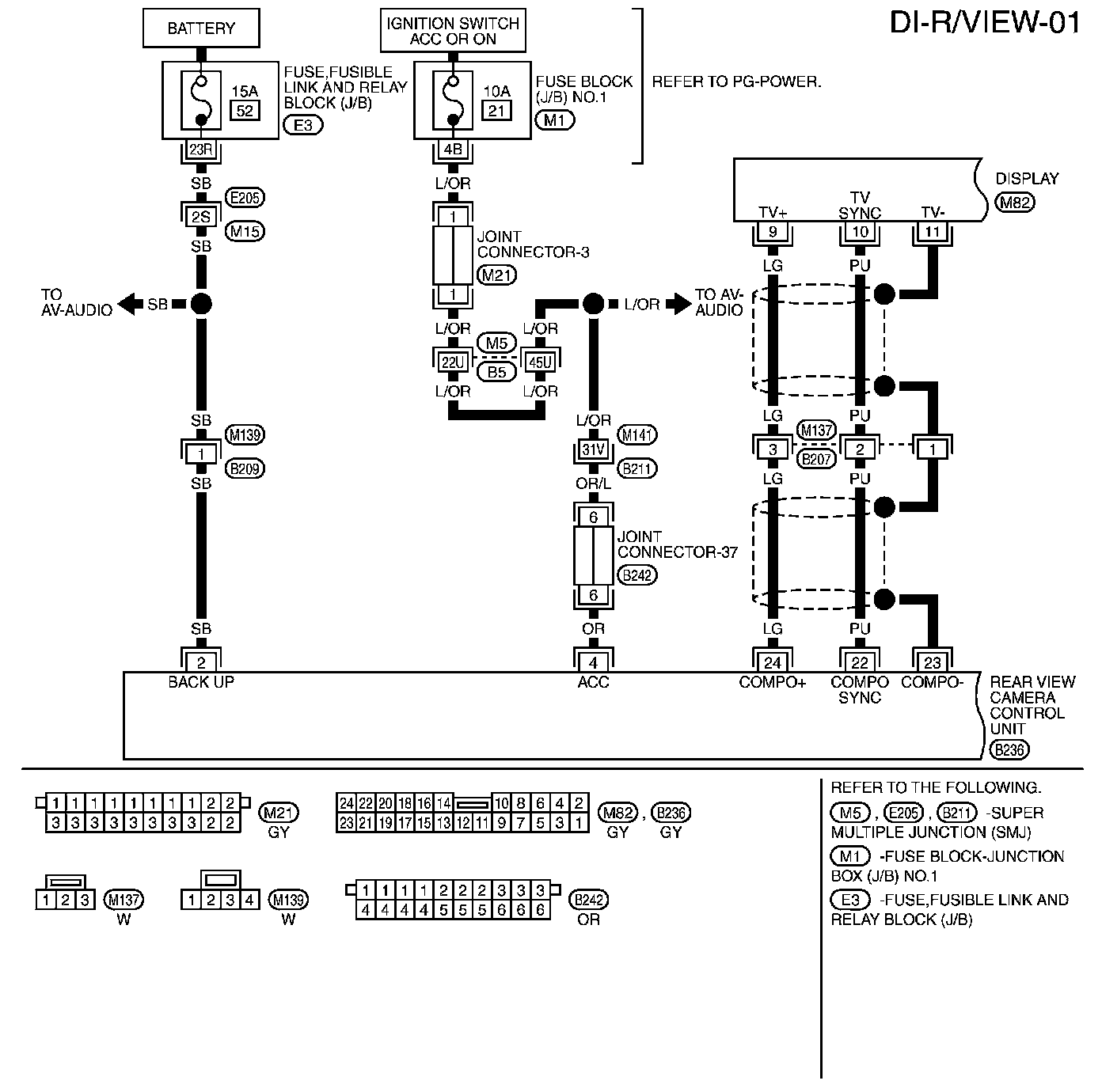

DI-R/VIEW-01:

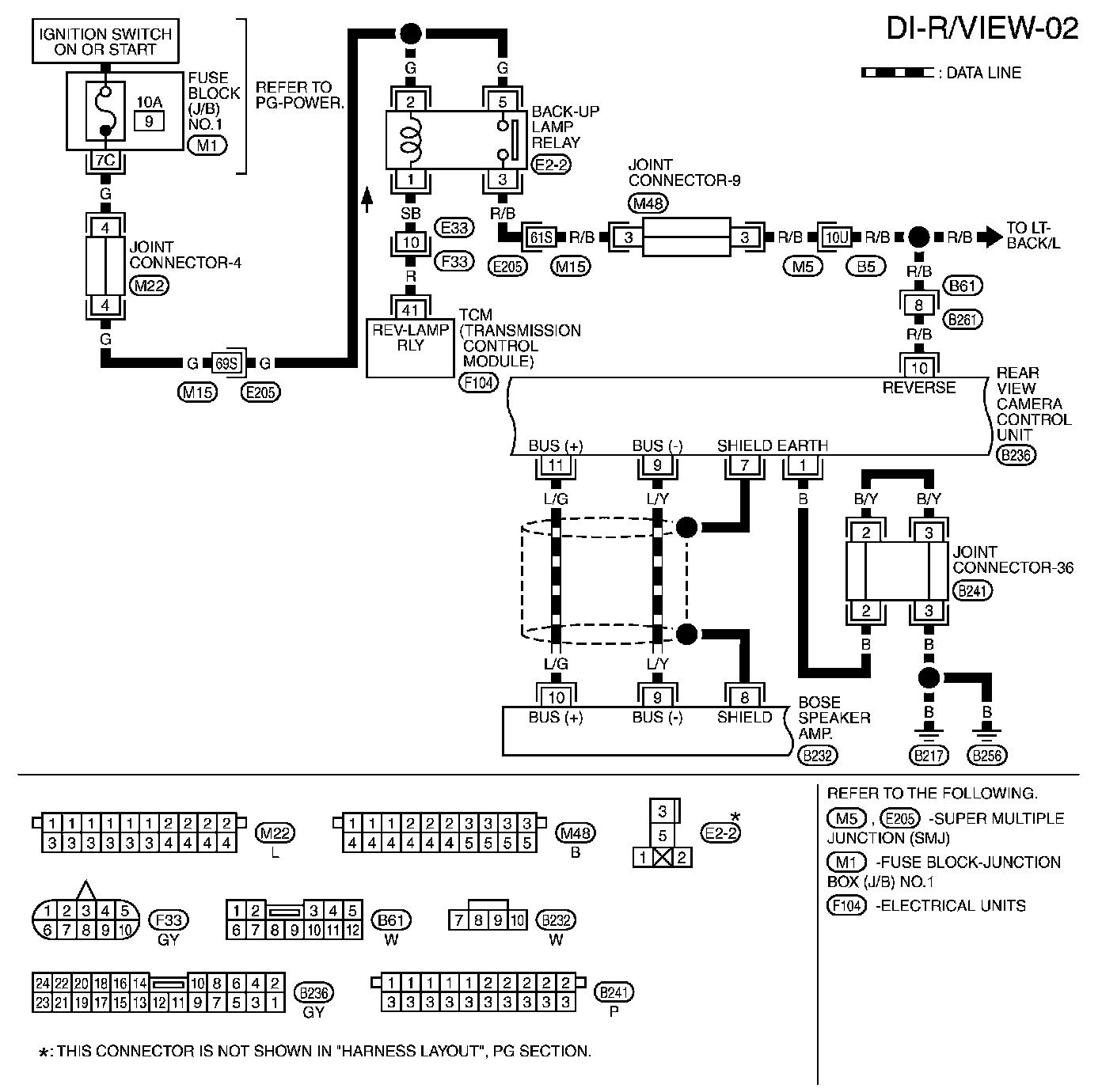

DI-R/VIEW-02:

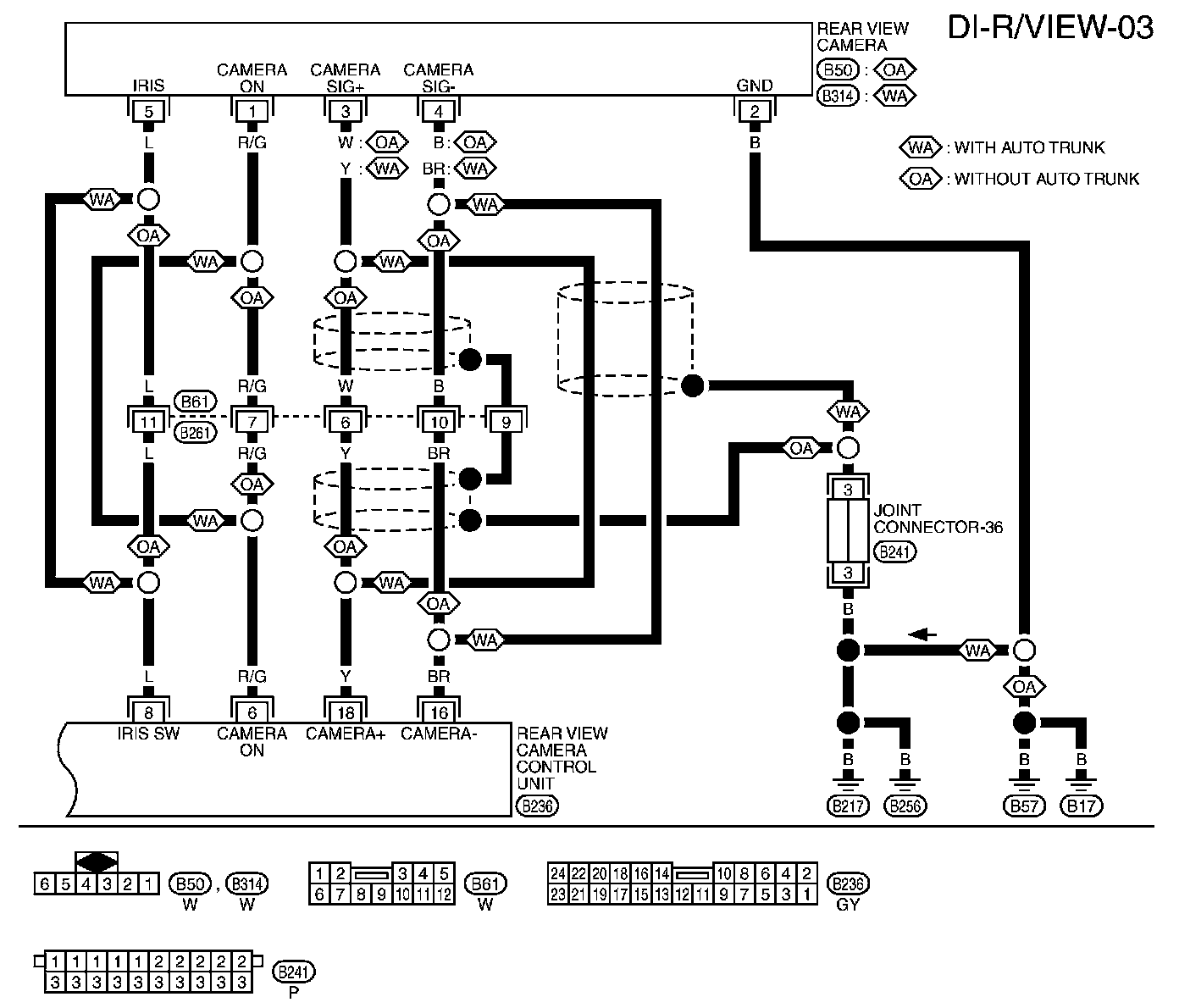

DI-R/VIEW-03:

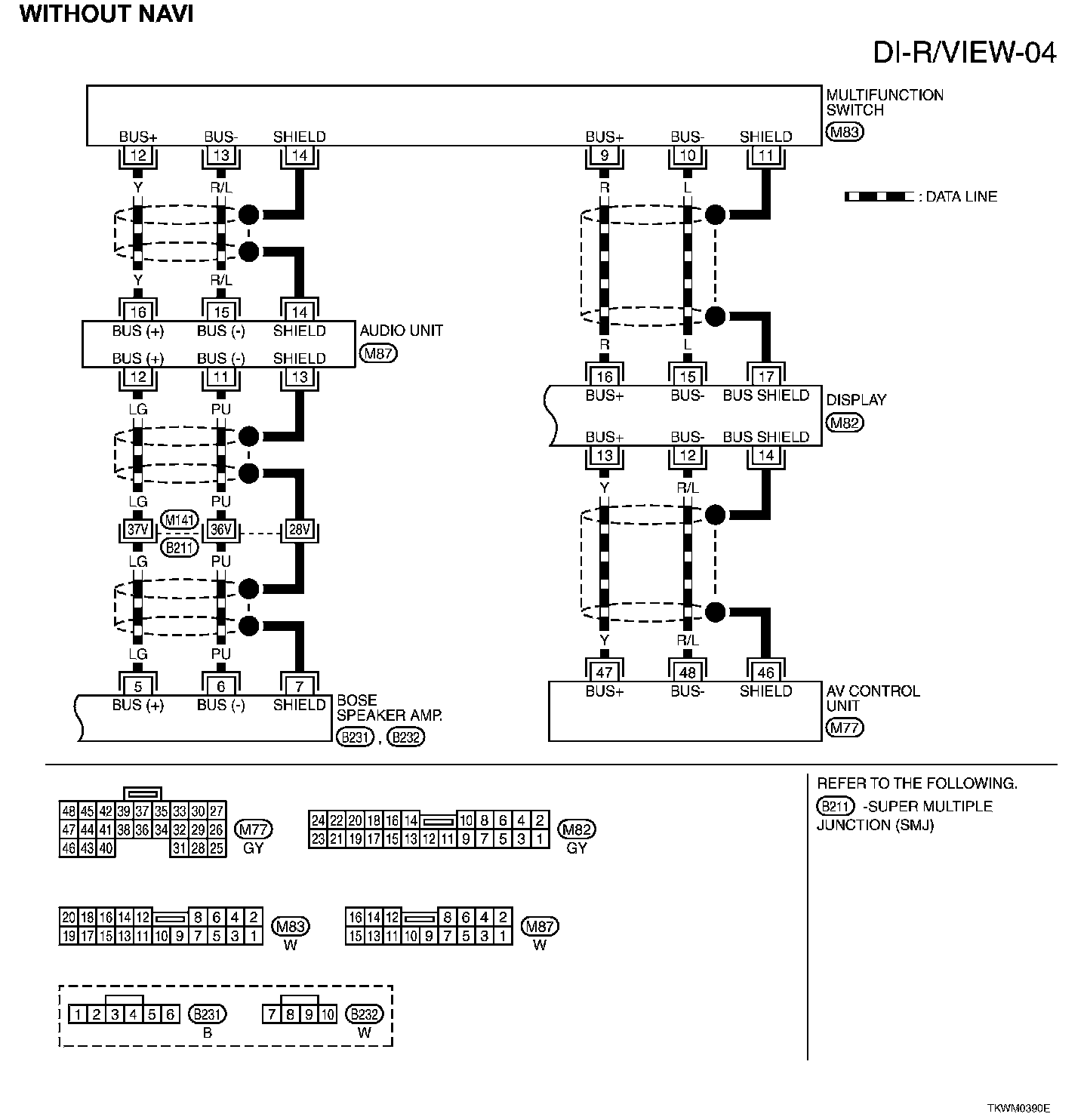

DI-R/VIEW-04:

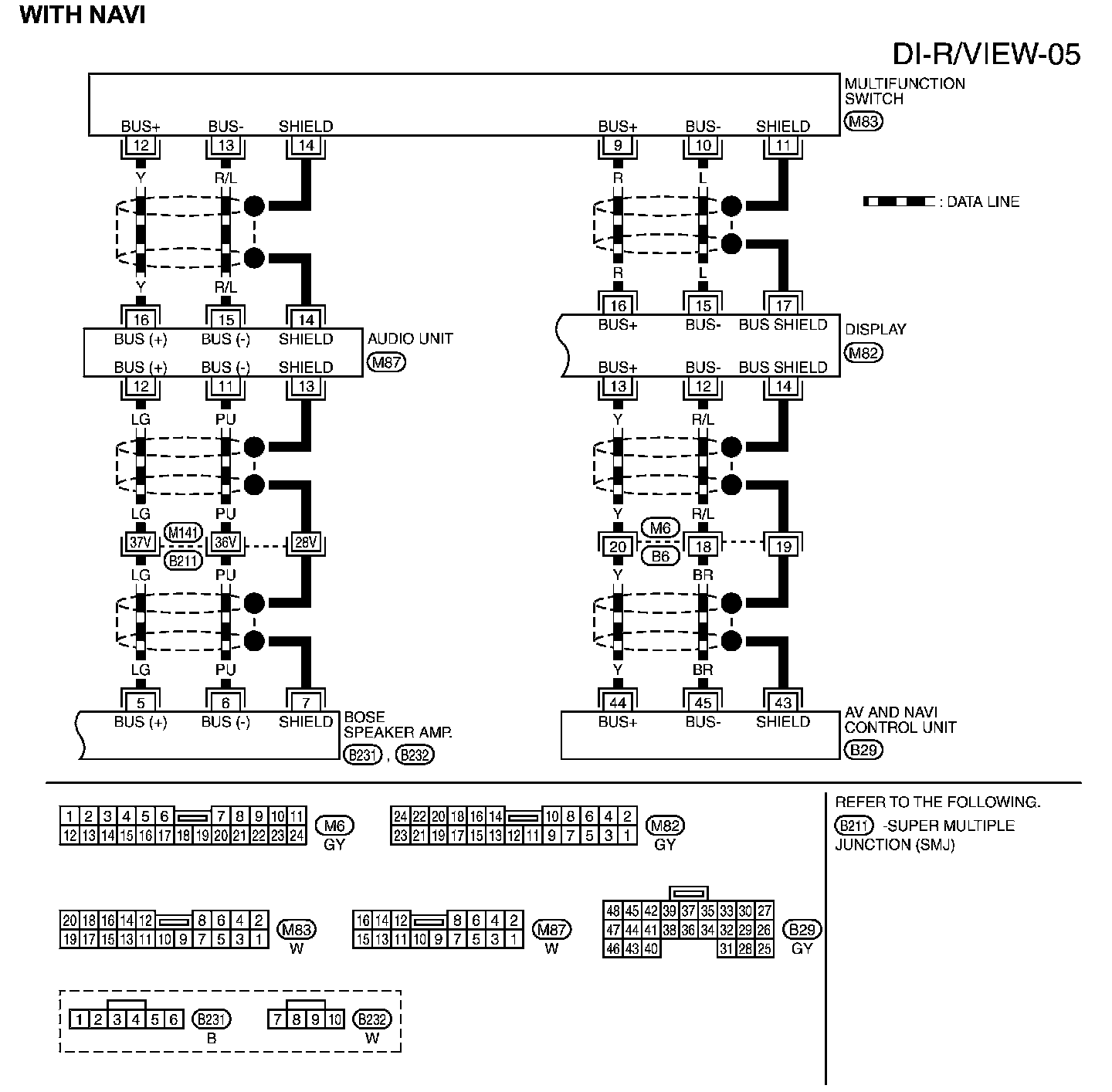

DI-R/VIEW-05:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
