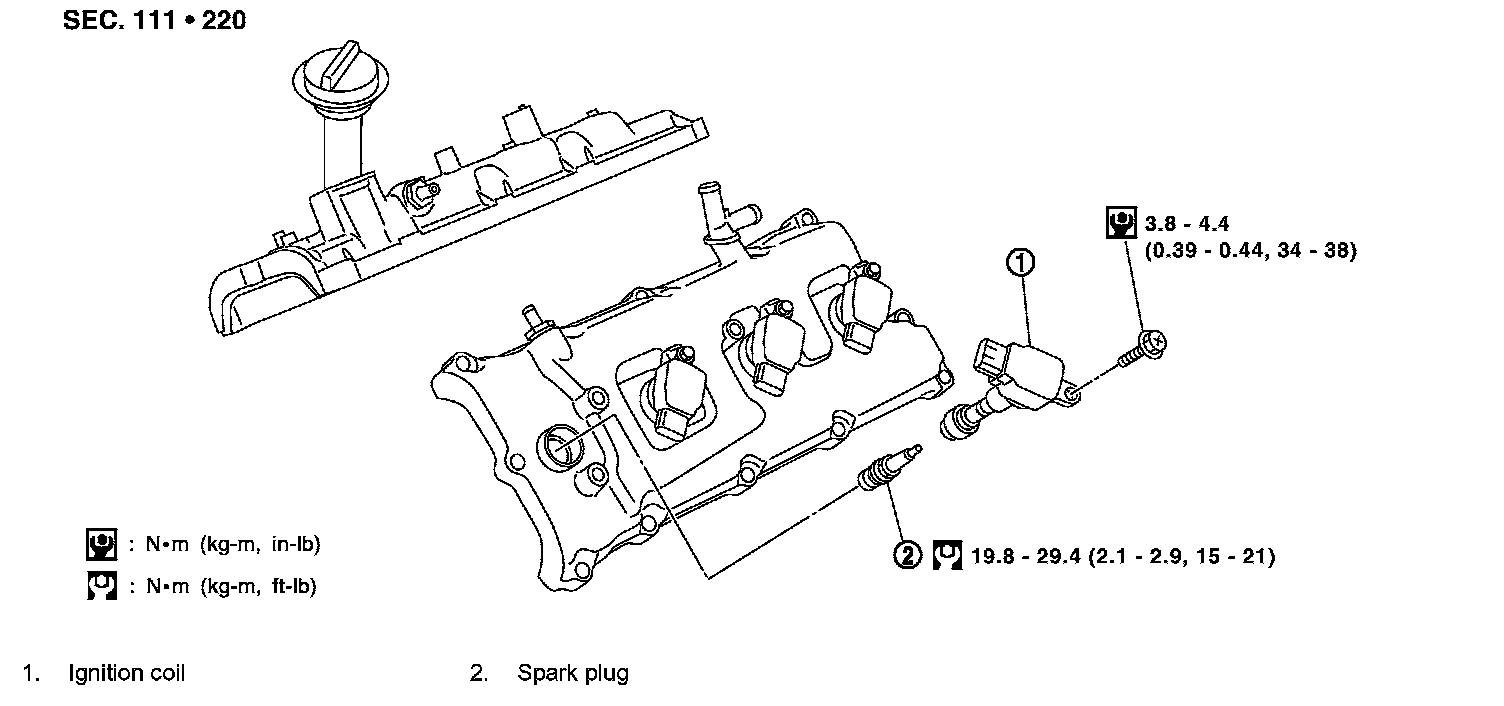

Ignition Coil: Service and Repair

Removal and Installation

REMOVAL
1. Remove engine cover (with power tool), air cleaner cover and battery cover.
2. Move heater hose and its peripheral parts aside. (No.7 cylinder)
3. Disconnect harness connector from ignition coil.
4. Remove ignition coil.

CAUTION: Do not shock it.

INSTALLATION
Install in the reverse order of removal.
