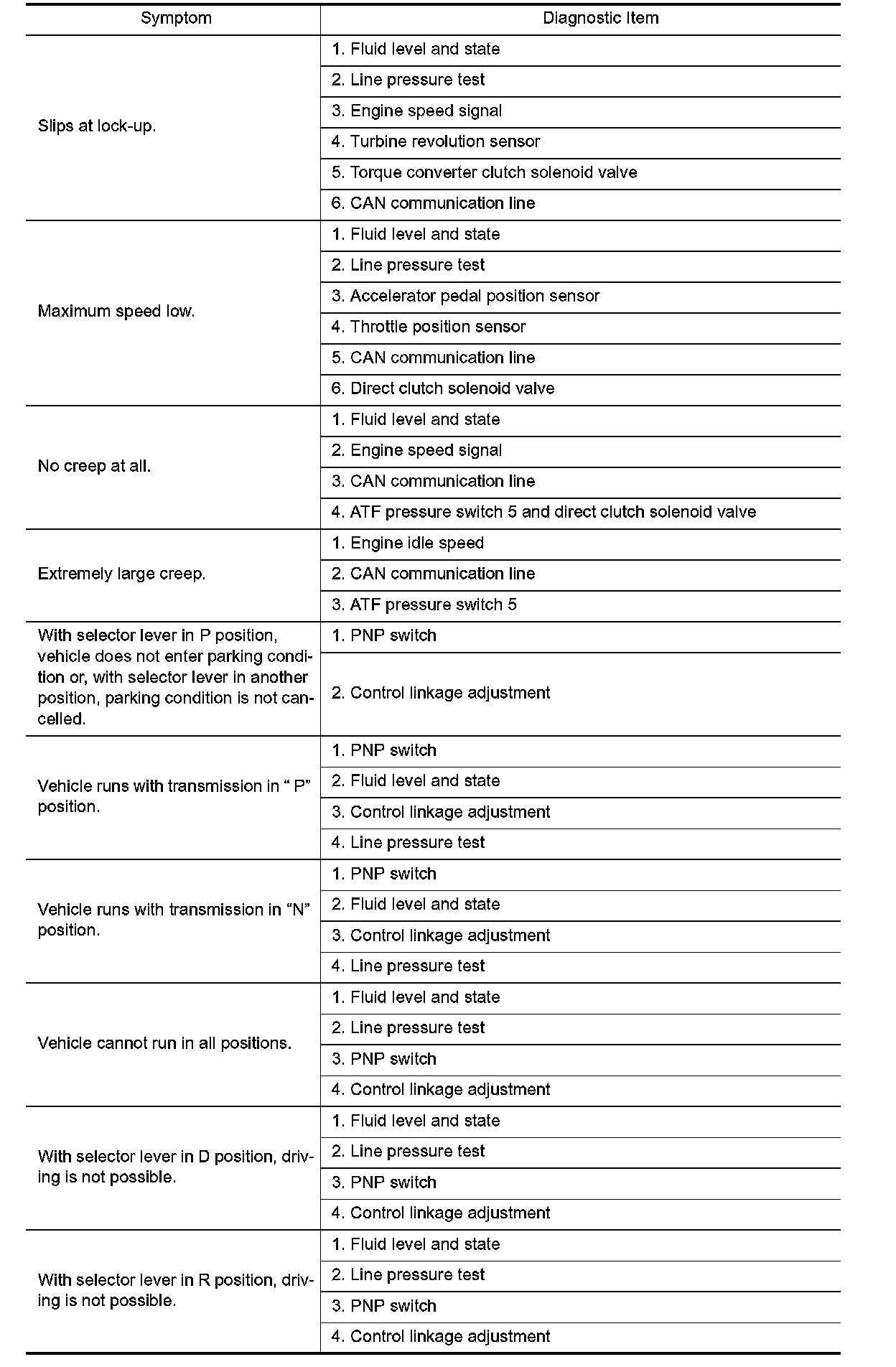

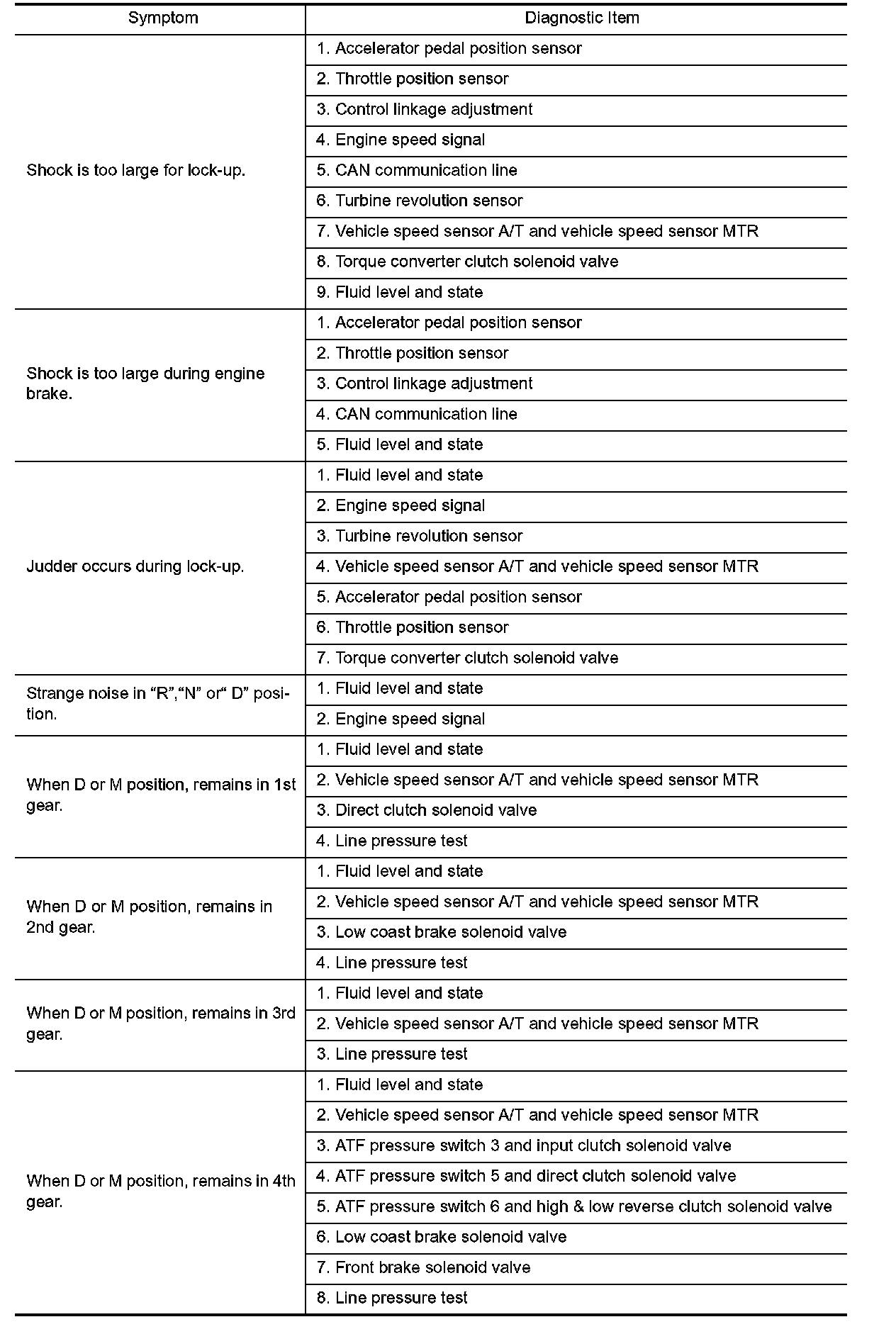

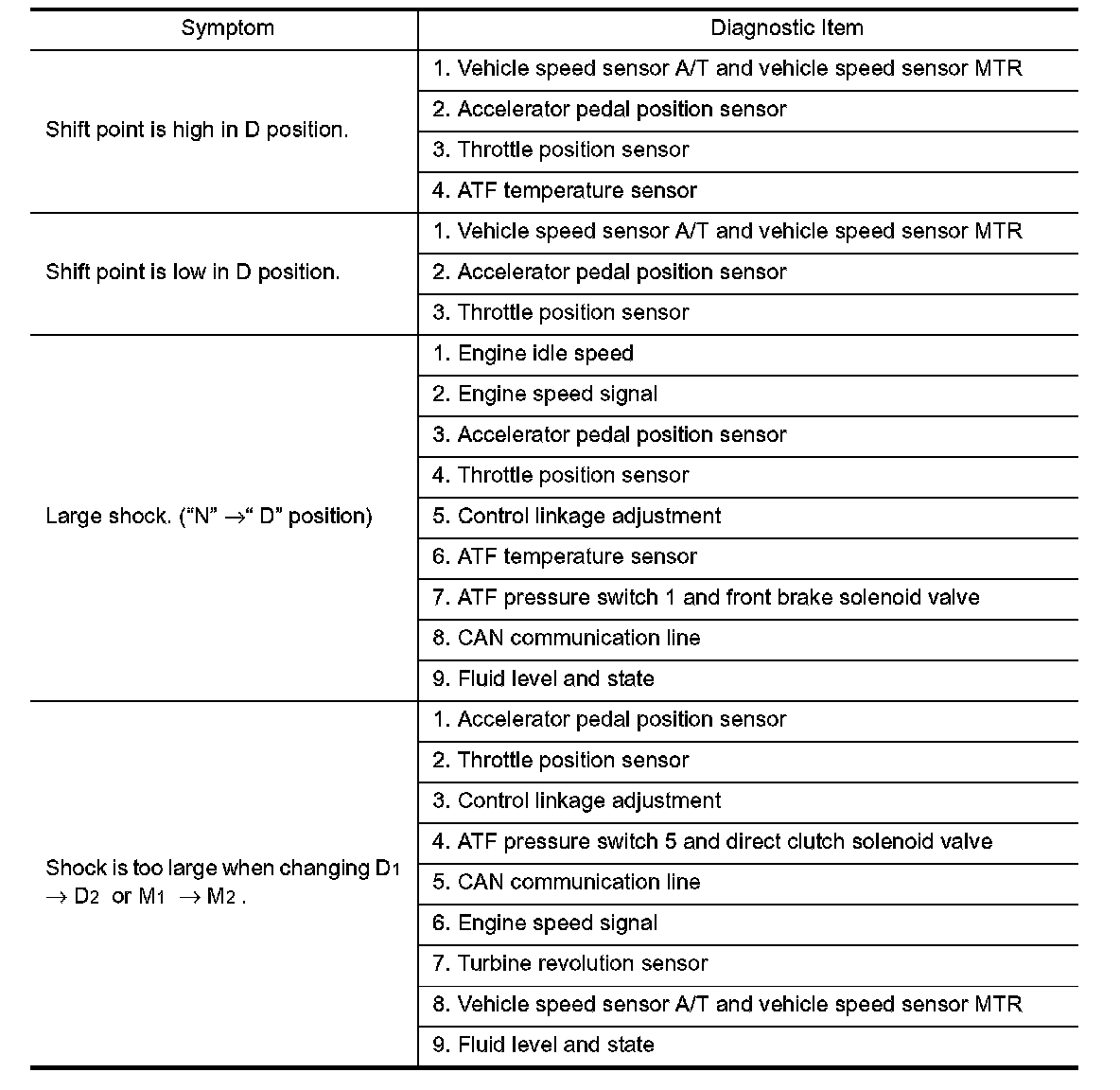

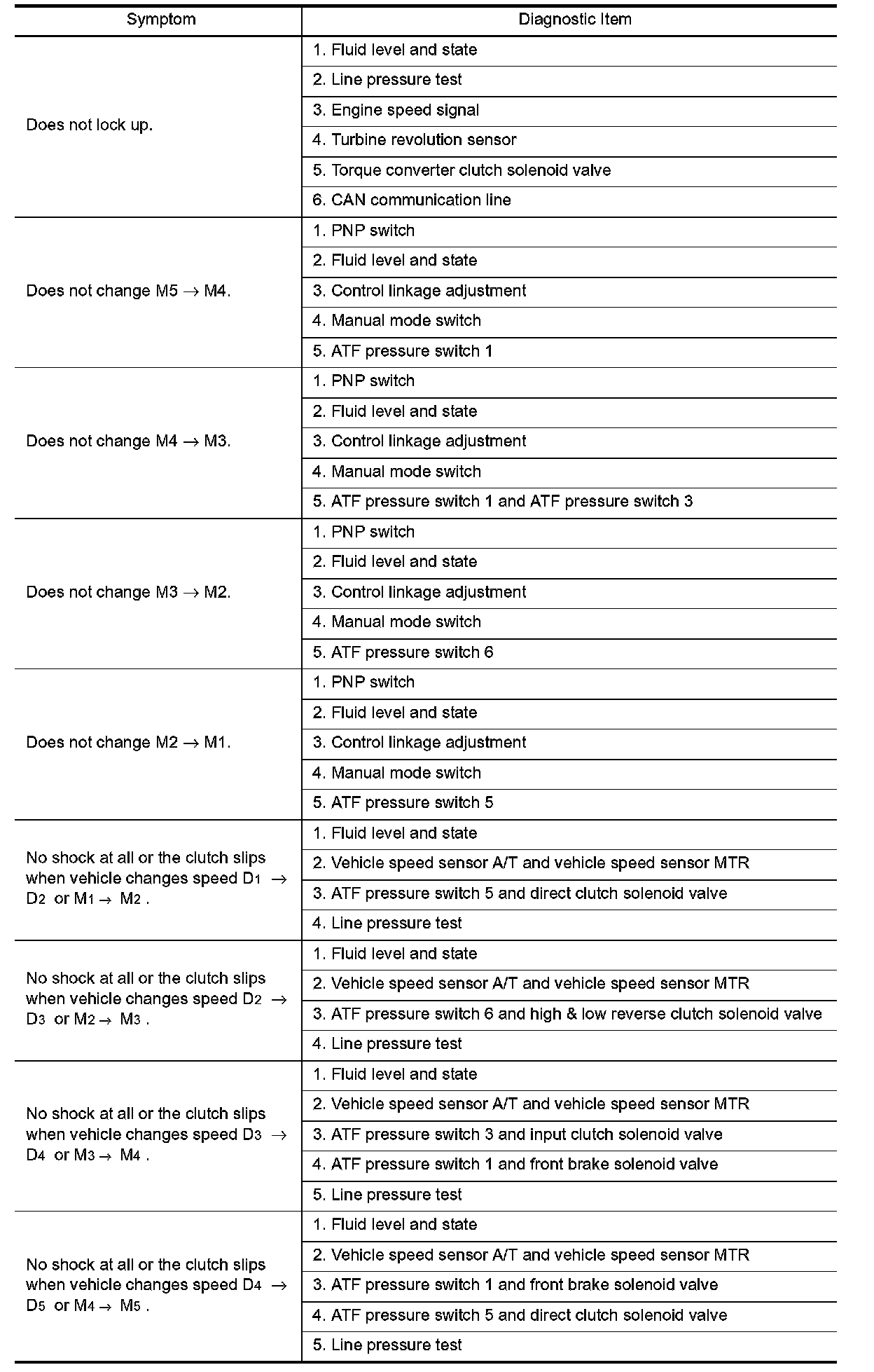

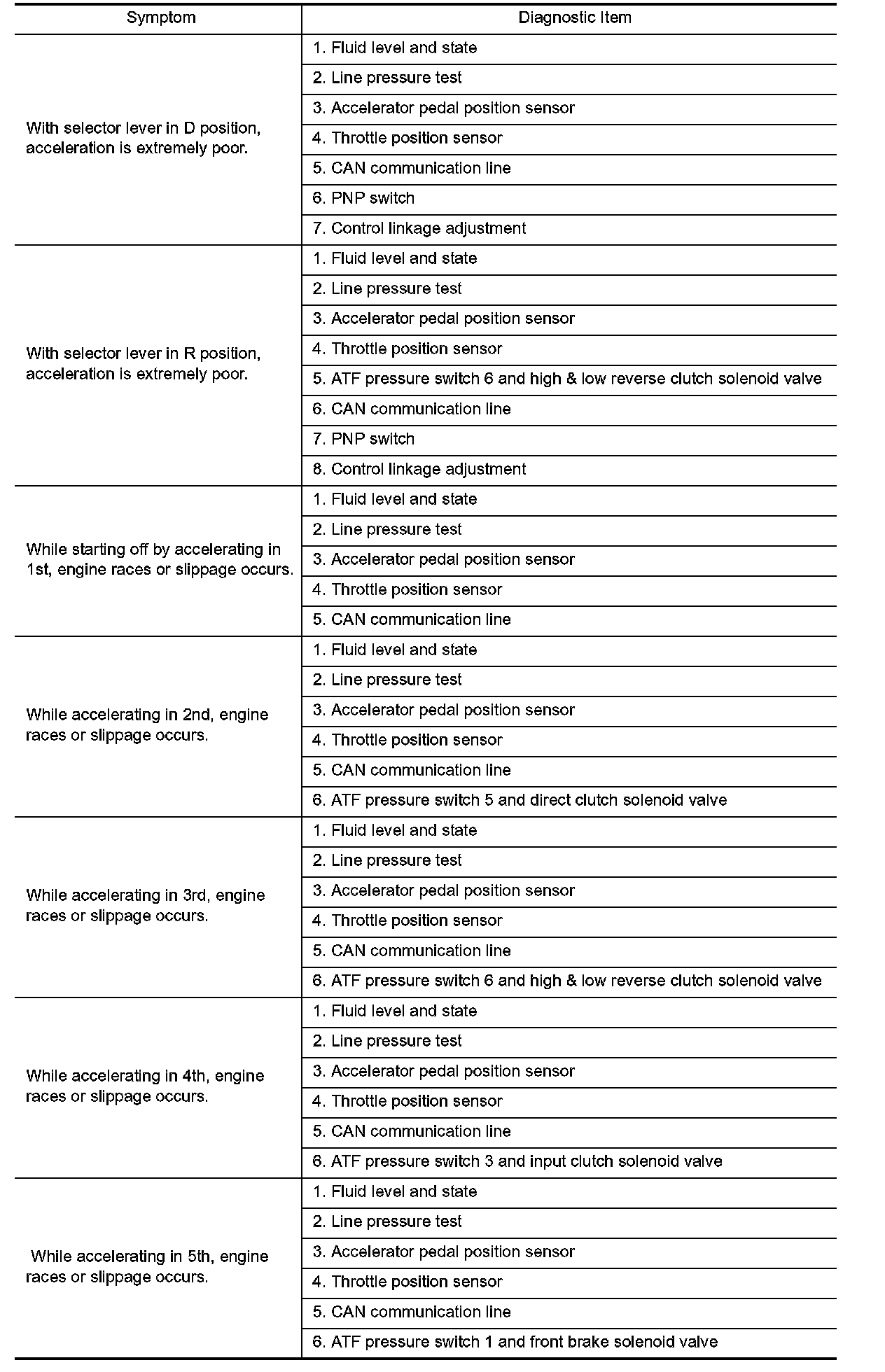

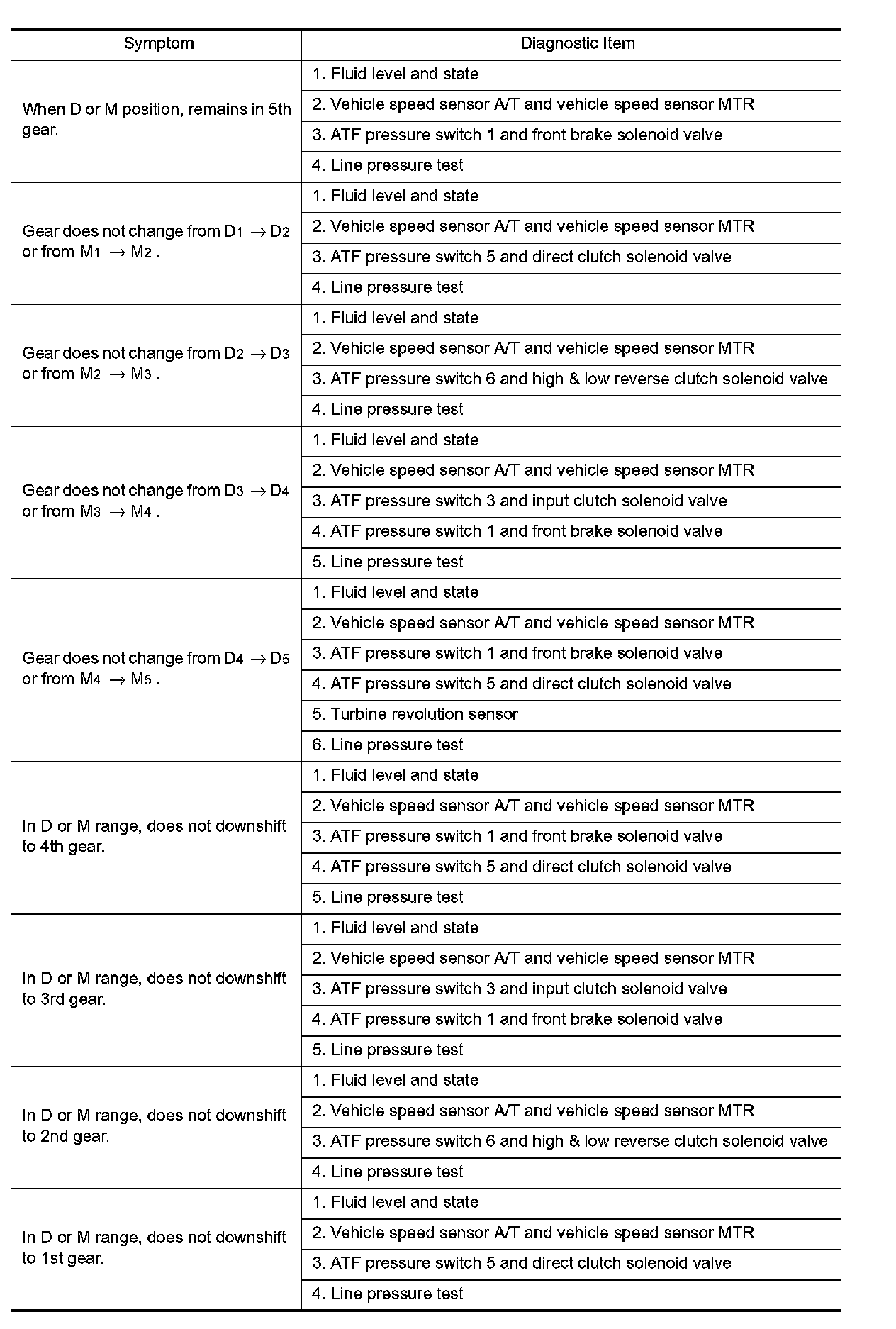

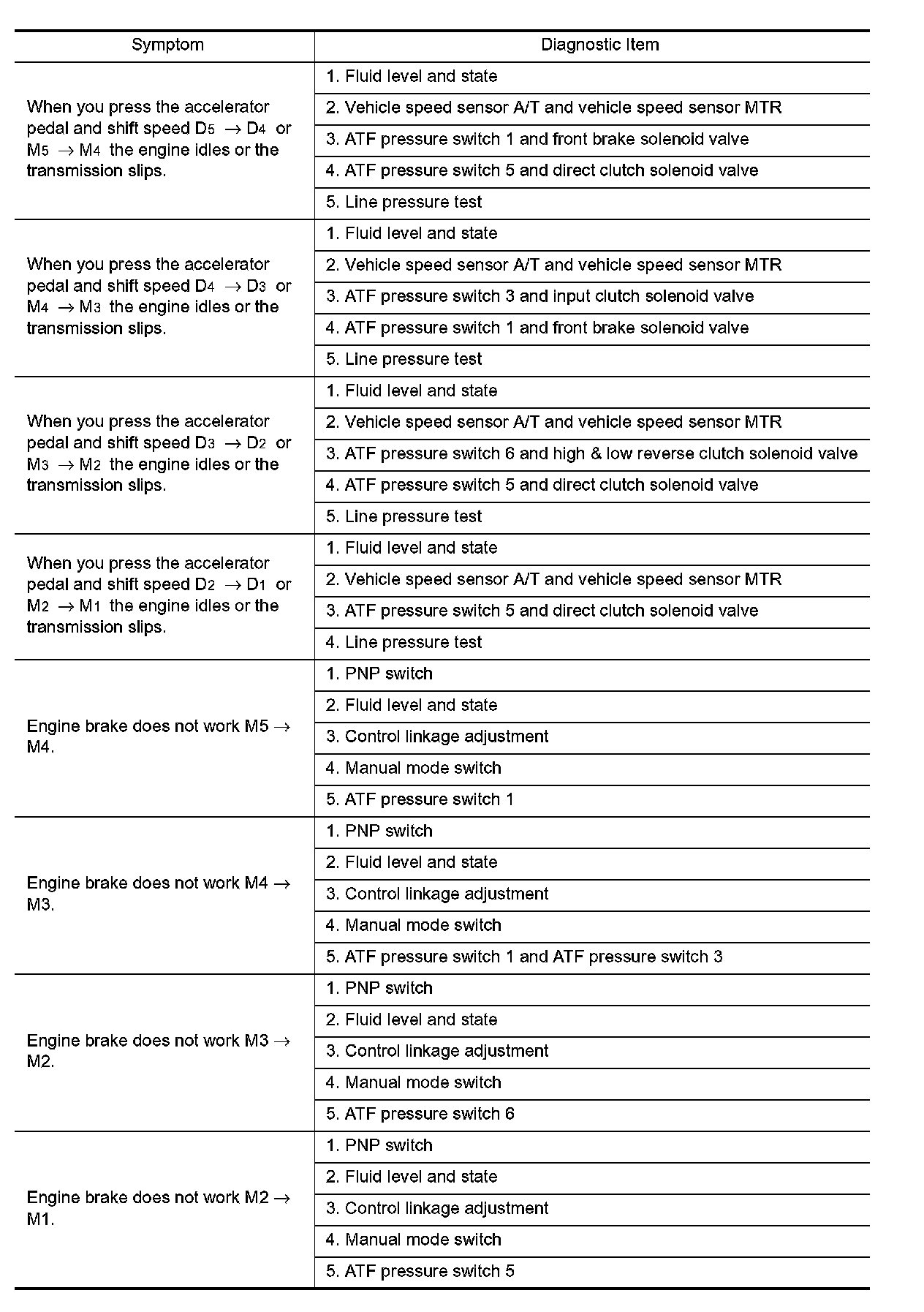

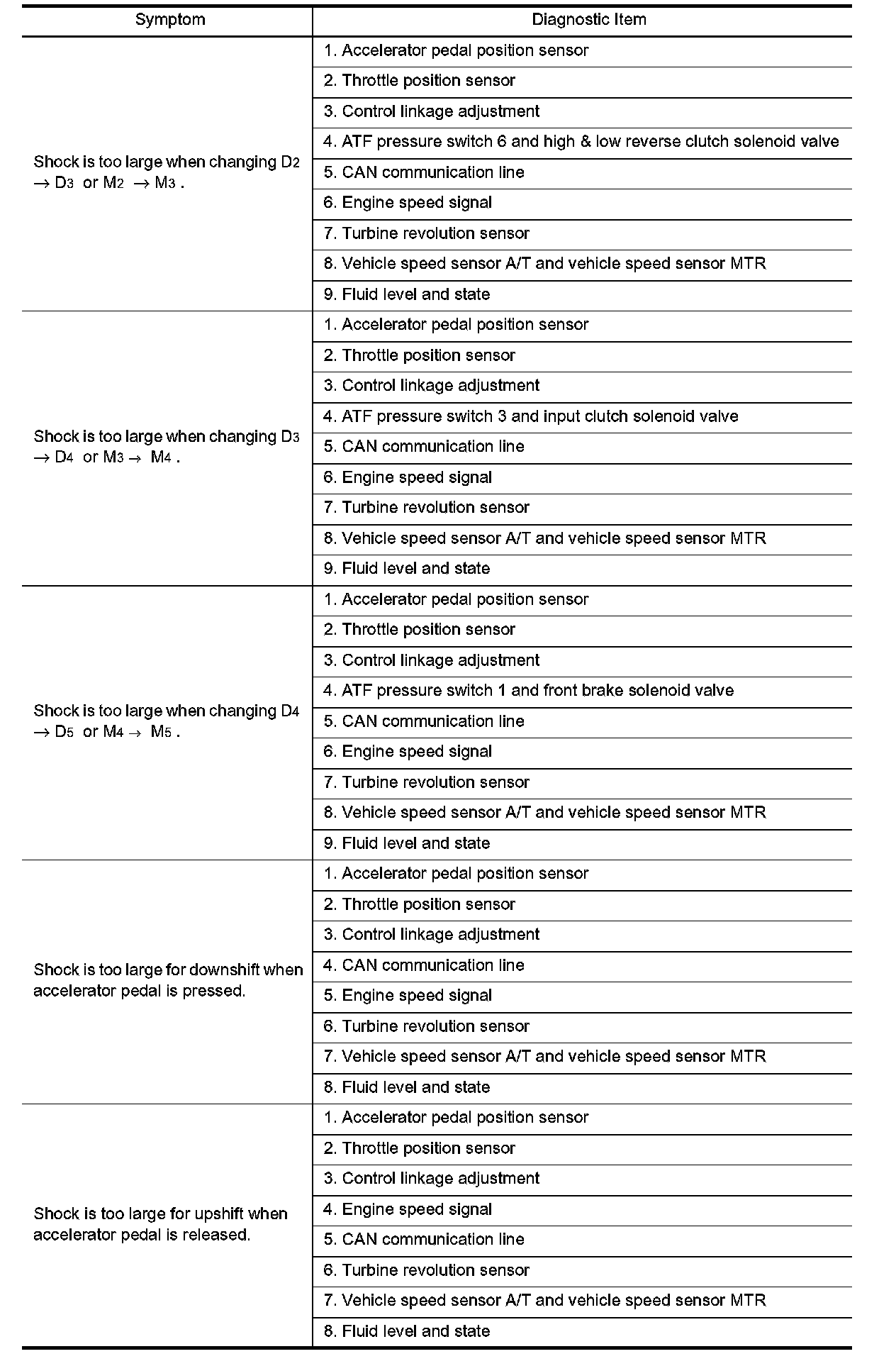

Symptom Chart
Symptom Chart The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.
CAUTION: ^
If any malfunction occurs in the RE5RO5A transmission, replace the transmission assembly.
^
Condition for "on vehicle" only.
