Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2003
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Cooling System
>>
System Specifications
System Specifications
Standard and Limit

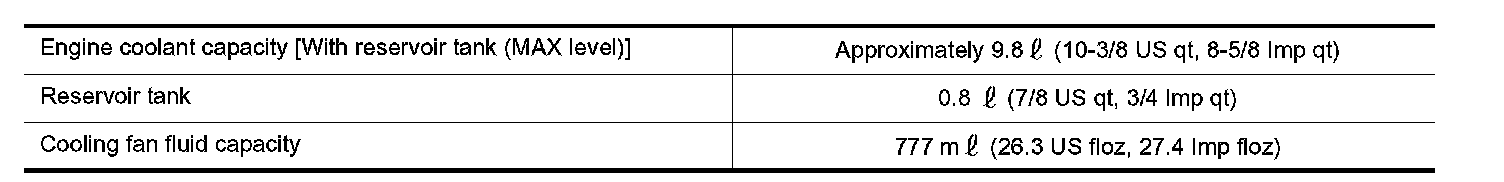

CAPACITY

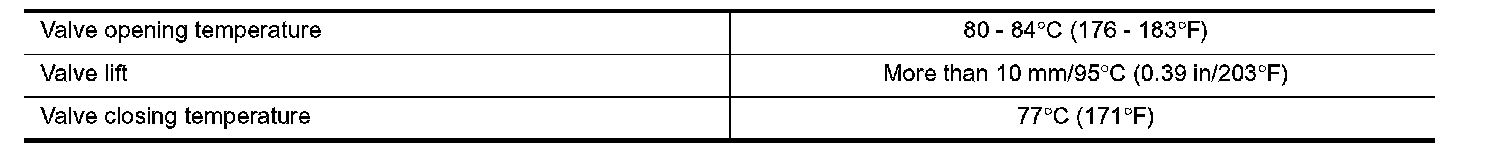

THERMOSTAT
WATER CONTROL VALVE

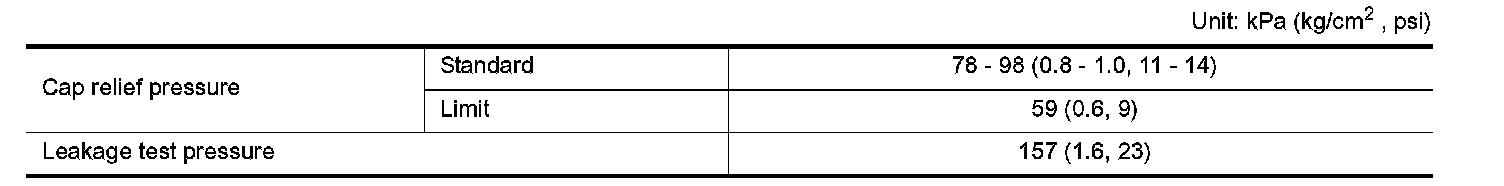

RADIATOR

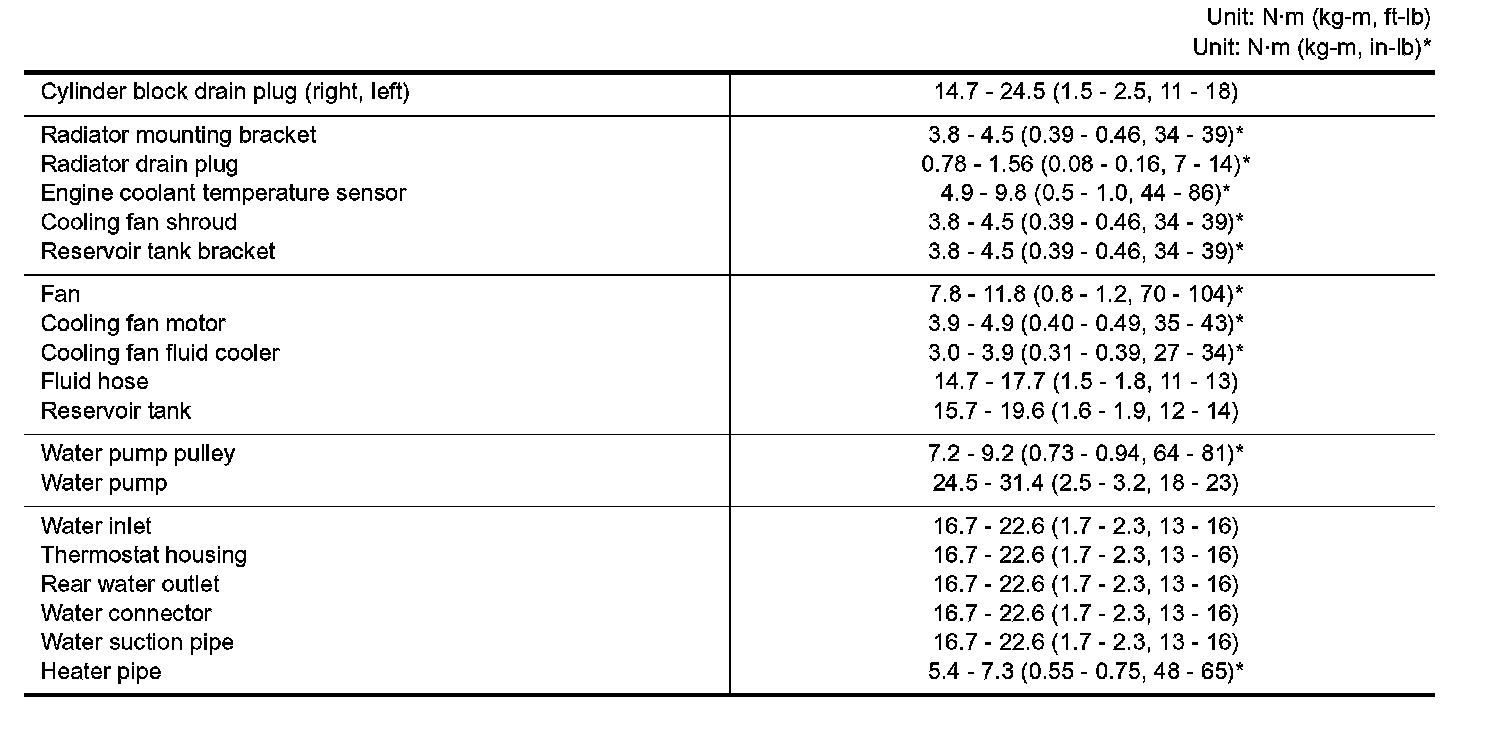

Tightening Torque
